QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 670000 - 719999) (2007) Cutter Housing Assembly 109-6394 Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

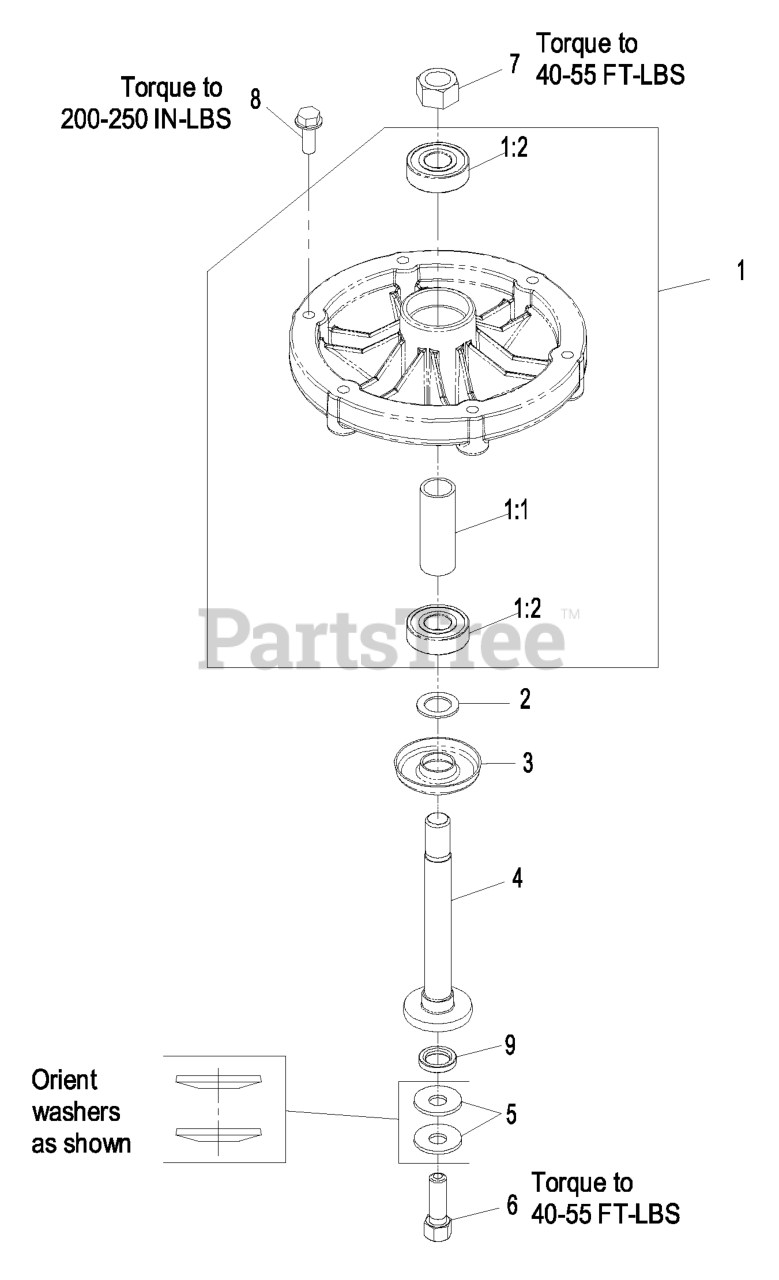

Cutter Housing Assembly 109-6394 Parts Diagram

  • Title

1

Exmark 109-5242

116-4386
(Superseded to 116-4386)

$128.99

$

In Stock, Qty 5

0

1:1

Exmark 62-3661

SPACER

$15.99

$

In Stock, Qty 20+

0

1:2

Exmark 100-1048

38-7820
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

2

Exmark 80-4380

SPACER

$6.49

$

In Stock, Qty 20+

0

3

Exmark 80-4360

SHIELD-BEARING

Note: Apply Mobil HTS grease ( 1.5 oz packet) (or a food-grade anti-seize) between the spindle & bearings. DO NOT use a copper or nickel based anti-seize.

$18.99

$

In Stock, Qty 20+

0

4

Exmark 80-4341

SHAFT-SPINDLE

Note: Apply Mobil HTS grease ( 1.5 oz packet) (or a food-grade anti-seize) between the spindle & bearings. DO NOT use a copper or nickel based anti-seize.

$47.99

$

In Stock, only 2 left!

0

5

Exmark 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

7

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

8

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

9

Exmark 109-6857

SPACER

$8.99

$

In Stock, Qty 20+

0

Exmark 109-6394

116-5712
(Superseded to 116-5712)

$192.99

$

In Stock, Qty 20+

0
