QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 670000 - 719999) (2007) Fuel Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

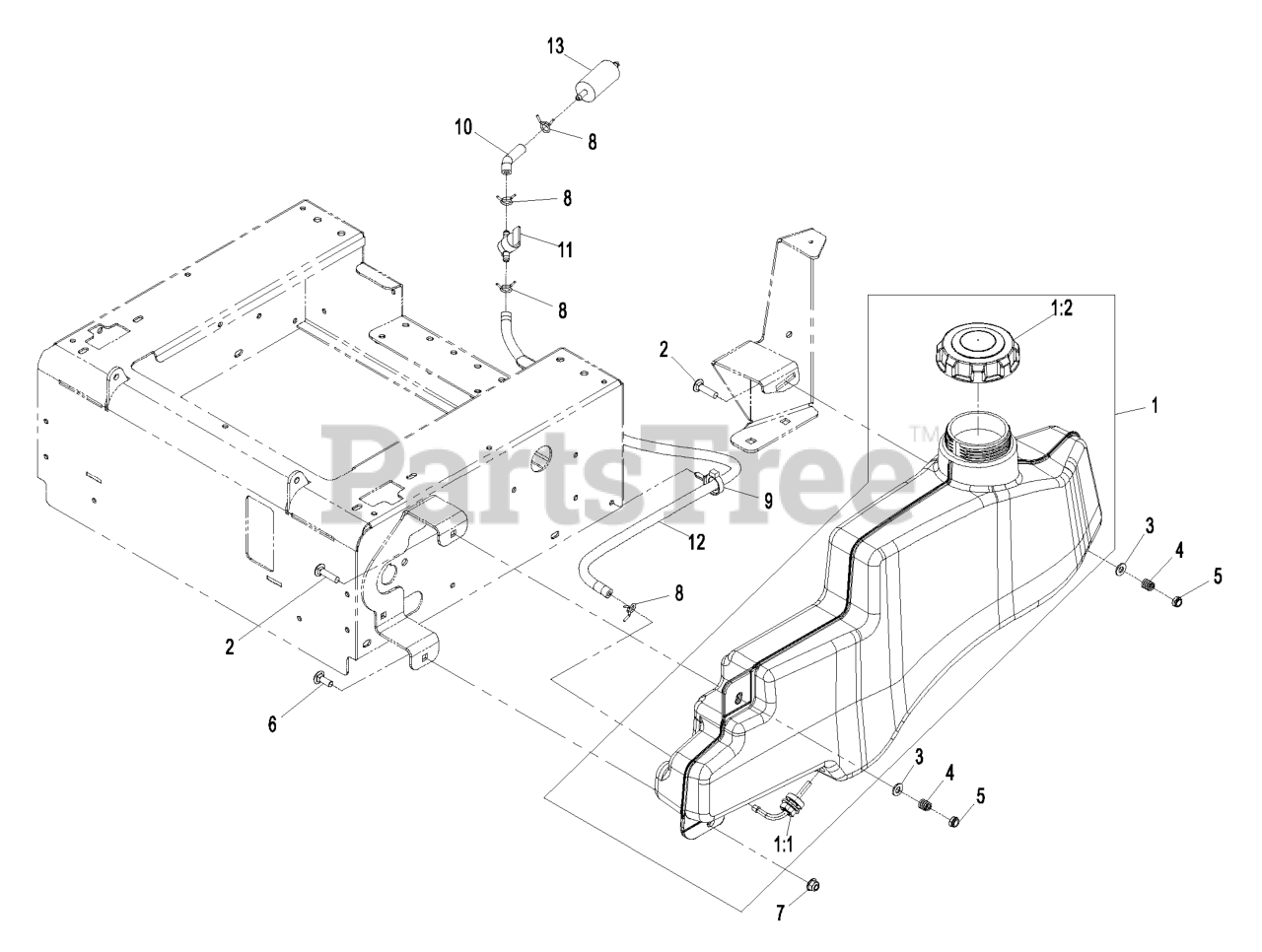

Fuel Group Parts Diagram

  • Title

1

Exmark 109-5510

FUEL TANK ASM

$264.99

$

Usually ships in 3-6 days

0

1:1

Exmark 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, Qty 11

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

1:2

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 16

0

2

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

4

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 9

0

5

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

6

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

9

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

10

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 16

0

11

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 16

0

12

Exmark 109-0286

HOSE-FUEL

$20.99

$

Usually ships in 3-6 days

0

13

Briggs & Stratton Part No. 695666 Fuel Filter

Note: Refer to Engine Owner's manual. (Fuel filter Must be 30 Micron).

$

$

Not available
