Exmark QST23KC482 - Exmark 48" Quest Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Electrical Group Parts Lookup with Diagrams

1

Exmark 109-8786

HARNESS-WIRE

Note: For Briggs & Stratton engines. Use dielectric grease on all wiring harness connectors

$429.99

$

Usually ships in 3-6 days

Exmark 109-8963

HARNESS,KOHLER CMD

Note: For Kohler Command engines. Use dielectric grease on all wiring harness connectors

$

Not available 

1:2

Exmark 109-9186

DIODE-TVS

$18.99

$

In Stock, only 4 left!

2

Exmark 240-3

GROMMET-RUBBER

$18.99

$

In Stock, only 1 left!

3

Exmark 32144-1

SCREW-TAPTITE

Note: For Briggs & Stratton engines

$3.49

$

In Stock, Qty 20+

Exmark 32144-1

SCREW-TAPTITE

Note: For Kohler Command engines.

$3.49

$

In Stock, Qty 20+

4

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

5

Exmark 1-643275

RELAY

Note: For Briggs & Stratton engines

$22.99

$

In Stock, Qty 20+

Exmark 1-643275

RELAY

Note: For Kohler Command engines.

$22.99

$

In Stock, Qty 20+

6

Exmark 1-513075

117-1197

(Superseded to 117-1197) 

Note: For Briggs & Stratton engines

$45.99

$

In Stock, Qty 20+

7

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

8

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

9

Exmark 46-8560

SCREW-HHFTF

Note: For Briggs & Stratton engines

$1.99

$

In Stock, Qty 20+

10

Exmark 10706-9

Nut, Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

11

Exmark 109-6398

CONTROL PANEL ASM

$59.99

$

Usually ships in 3-6 days

11:2

Exmark 109-6029

DECAL-CONSOLE

$22.99

$

Usually ships in 3-6 days

12

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

13

Exmark 1-513374

METER-HOUR

(Superseded to 120-2244) 

$67.99

$

In Stock, Qty 7

14

Exmark 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

15

Exmark 109-4736

ASM,SWITCH W/NUT

$41.99

$

In Stock, Qty 20+

16

Exmark 103-0498

NUT-SWITCH, IGNITION

$2.99

$

In Stock, only 1 left!

17

Exmark 109-3987

CONTROL-THROTTLE

$38.99

$

In Stock, only 4 left!

18

Exmark 109-8747

CONTROL,CHOKE

Note: For Briggs & Stratton engines

$36.99

$

In Stock, only 2 left!

Exmark 109-9147

CONTROL-CHOKE

Note: For Kohler Command engines.

$42.99

$

In Stock, only 2 left!

19

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

20

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

21

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

22

Exmark 99-7408

SWITCH-REVERSE

$27.99

$

In Stock, only 1 left!

23

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

24

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 4 left!

25

Exmark 109-7653

POSITIVE BATTERY CABLE AS

Note: For Briggs & Stratton engines

$34.99

$

In Stock, only 1 left!

Exmark 109-7621

POSITIVE BATTERY CABLE AS

Note: For Kohler Command engines.

$39.99

$

Usually ships in 3-6 days

26

Exmark 103-0705

CABLE-GROUND, NEGATIVE

$18.99

$

In Stock, only 4 left!

27

Exmark 109-9415

Cable, Starter +

Note: For Briggs & Stratton engines

$25.99

$

Usually ships in 3-6 days

28

Exmark 1-543393

INSULATOR-SOLENOID

Note: For Briggs & Stratton engines

$5.49

$

In Stock, only 2 left!

Exmark 1-543393

INSULATOR-SOLENOID

Note: For Kohler Command engines.

$5.49

$

In Stock, only 2 left!

29

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

30

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

31

Exmark 103-1311-03

HOLDDOWN-BATTERY

$26.99

$

Usually ships in 3-6 days

32

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

33

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 19

34

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 20+

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

35

Exmark 32128-33

NUT-HF

Note: For Briggs & Stratton engines

$0.99

$

In Stock, Qty 20+

Exmark 57-6390

NUT-JAM

Note: For Kohler Command engines.

$1.49

$

Usually ships in 3-6 days

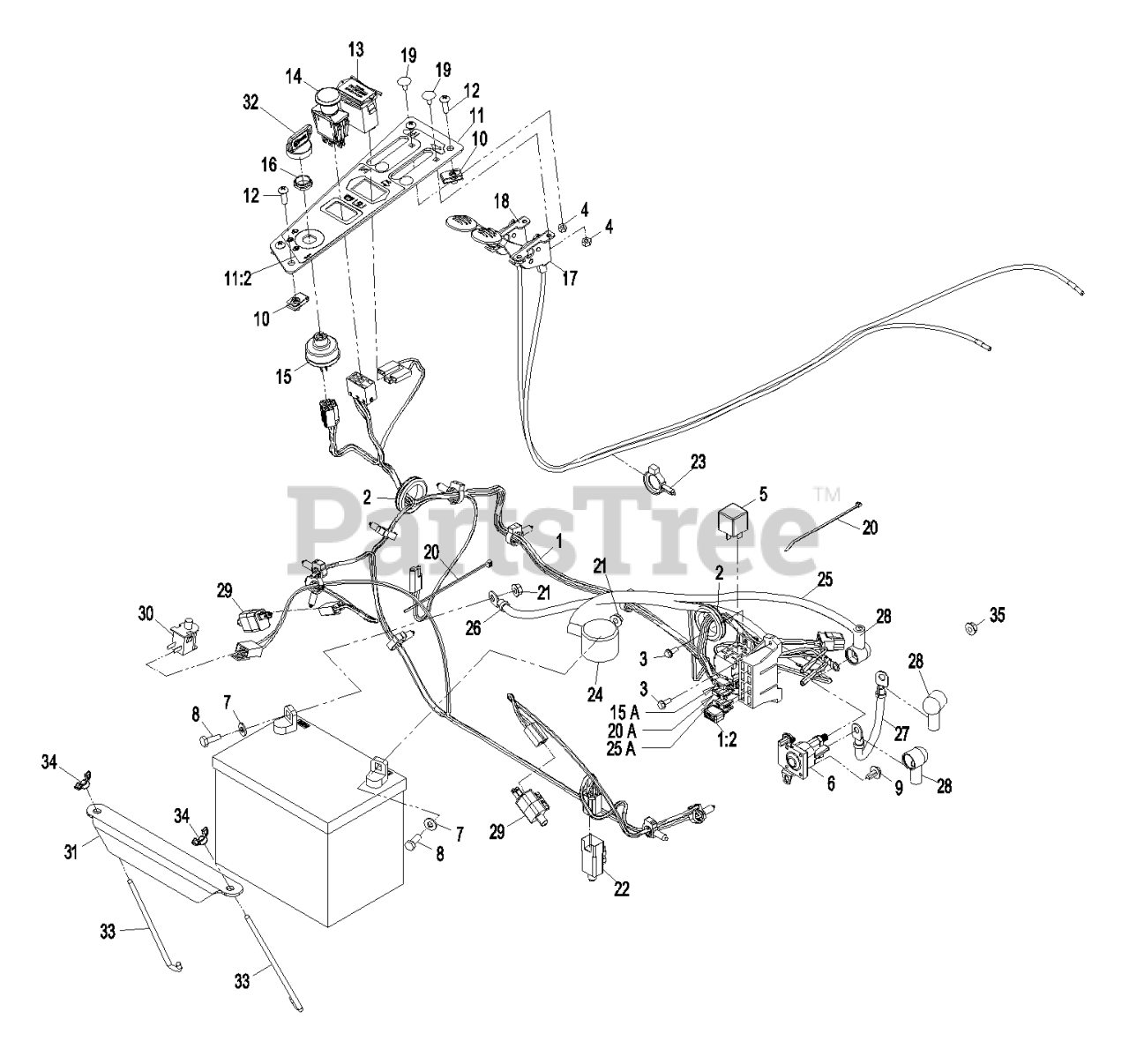

QST23KC482 - Exmark 48" Quest Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Electrical Group Parts Diagram

Electrical Group Parts Diagram
