QT02015GNSN - Generac 20kW Home Standby Generator (SN: 4298157 - 4461143) (2006) Fuel Systemng/LPV 1.5L C1 CPL (0F7494) Parts Diagram

20kW Home Standby Generator

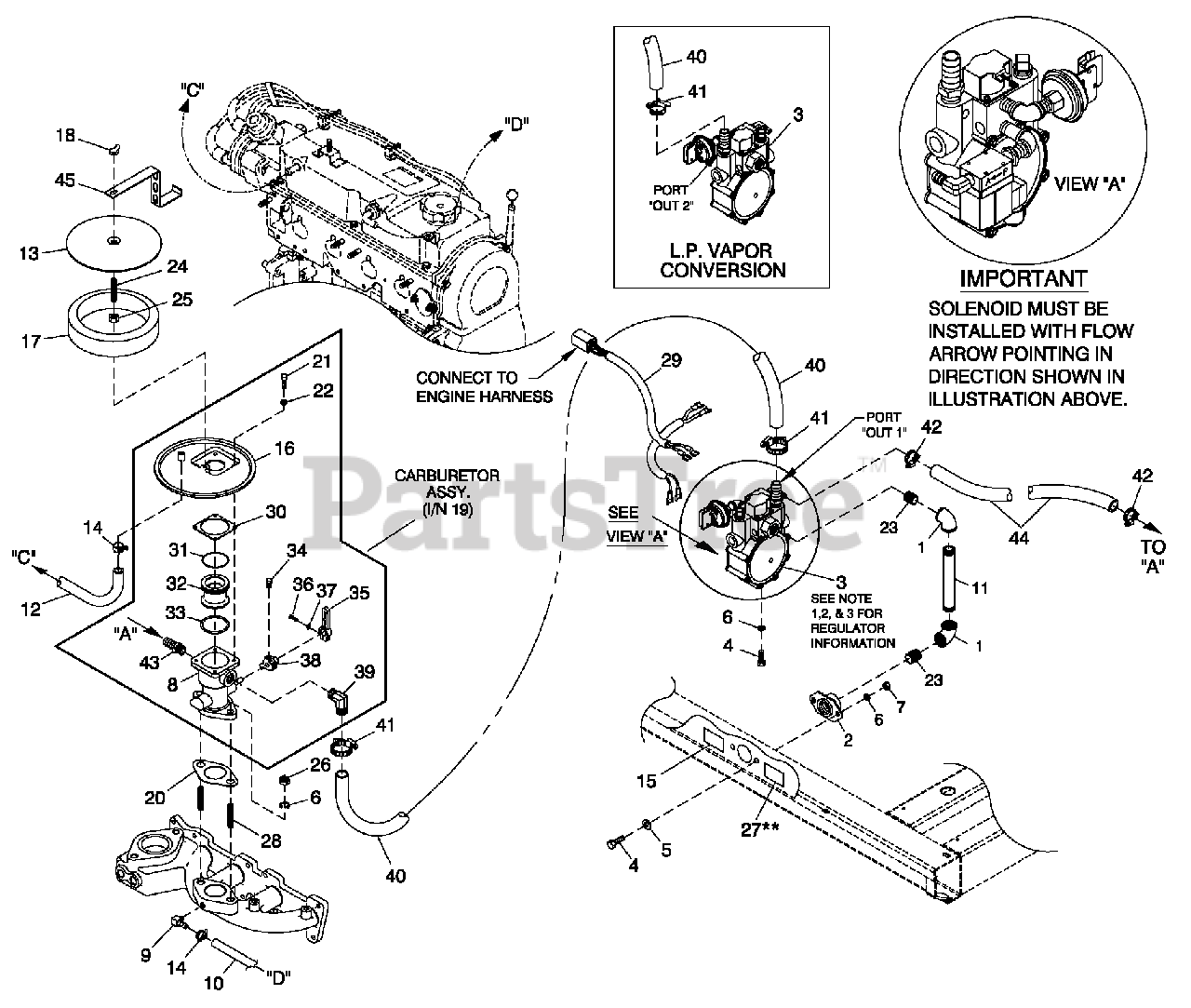

Fuel Systemng/LPV 1.5L C1 CPL (0F7494) Parts Diagram

  • Title

1

Generac 26812

ELBOW 90D 3/4 NPT

$

$

Not available

2

Generac 75580

FLANGE FUEL INLET

$

$

Not available

3

0F6364A

FUEL RGLTR 1.5L REWORK

$

$

Not available

4

Generac 39253

SCREW HHC M8'1.25 X 20 G8.8

$

$

Not available

5

Generac 22145

WASHER FLAT 5/16 ZINC

$

$

Not available

6

Generac 22129

WASHER LOCK M8'5/16

$

$

Not available

7

Generac 45771

NUT HEX M8'1.25 G8 YEL CHR

$

$

Not available

8

Generac 0F1570

BODY CARBURETOR ASSEMBLY

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY ). USE 0F15700SRV

$

$

Not available

9

Generac 32552

BARBED EL 90 5/16 X 1/8 NPT

$

$

Not available

10

Generac 29032

HOSE 9/32 ID

$

$

Not available

11

Generac 25424

NIPPLE PIPE 3/4 NPT X 6

$

$

Not available

12

Generac 0F0397

HOSE CRANKCASE BREATHER

$

$

Not available

13

Generac 0A5547

COVER AIR CLEANER

$10.99

$

Usually ships in 2-12 days

0

14

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

Usually ships in 2-12 days

0

15

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

16

Generac 0E0591

ADAPTER CARB. TO AIR CLNR

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$10.99

$

Usually ships in 2-12 days

0

17

Generac 59402

FILTER ELEMENT

$

$

Not available

18

Generac 37561

NUT WING 1/4'20 NYLK

$

$

Not available

19

0E1028C

ASSY CARBURETOR 1.5L C1 CPL

$

$

Not available

20

Generac 59401

CARBURETOR GASKET

$

$

Not available

21

Generac 91526

SCREW PPHM M5'0.8 X 12 ZNC

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

22

Generac 49226

WASHER LOCK M5

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

23

Generac 26915

NIPPLE CLOSE 3/4 X 1.375

$

$

Not available

24

Generac 62522

STUD TH 1/4'20 X 3 G2 ZNC FULL

$

$

Not available

25

Generac 22127

NUT HEX 1/4'20 STEEL

$

$

Not available

26

Generac 22259

NUT HEX 5/16'18 STEEL

$

$

Not available

27

Generac 50279

DECAL FUEL INLET NG

Note: FOR LP VAPOR APPLICATION SUBSTITUE LPG FUEL INLET DECAL P/N 050280 FOR NG FUEL INLET DECAL P/N 050279 (ITEM 27).

$

$

Not available

Generac 50280

DECAL FUEL INLET LPG

$

$

Not available

28

Generac 0A6125

STUD 5/16'18 X 1.25 F THR

$

$

Not available

29

Generac 0F6155

HARNESS FUEL JUMPER SINGLE REG

$72.99

$

Usually ships in 2-12 days

0

30

Generac 0E1104

GASKET AIR CLEANER ADAPTER

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$1.49

$

Usually ships in 2-12 days

0

31

Generac 0E0668

O'RING 2'028 1.38 X 1.50 X .06

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

32

Generac 0E0590

VENTURI 18MM

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$2.49

$

Usually ships in 2-12 days

0

33

Generac 0C5133

O'RING 29.82 X 2.62

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$0.99

$

In Stock, only 1 left!

0

34

Generac 0E0665

SCREW THROTTLE PIN STOP

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$6.49

$

Usually ships in 2-12 days

0

35

Generac 0E1108

THROTTLE ARM REWORK

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY ). ORDER P/N 0E11080SRV.

$

$

Not available

36

Generac 33138

SCREW HHM #10'32 X 5/8

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

37

Generac 22152

WASHER LOCK #10

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

38

Generac 0E0645

LEVER THROTTLE STOP

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$7.49

$

Usually ships in 2-12 days

0

39

Generac 34339

BARBED EL 90 3/8 NPT X 5/8

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

40

Generac 059193D

HOSE 5/8 ID X 20.5" LG

$101.99

$

Usually ships in 2-12 days

0

41

Generac 57823

CLAMP HOSE #10 .56 ' 1.06

$

$

Not available

42

Generac 40173

CLAMP HOSE #5.5 .62'.62

$

$

Not available

43

Generac 89617

BARBED STR 1/4 NPT X 1/4 MALE

Note: INCLUDED IN ITEM 19 (CARBURETOR ASSY )

$

$

Not available

44

Generac 30340

HOSE 1/4 ID SAE 30R7

$

$

Not available

45

Generac 0A7040

BRACKET'RAD HOSE

$31.99

$

Usually ships in 2-12 days

0
