QT02015GNSN - Generac 20kW Home Standby Generator (SN: 4340210 - 4340214) (2006) Enclosure C1 CPL (0F7356) Parts Diagram

20kW Home Standby Generator

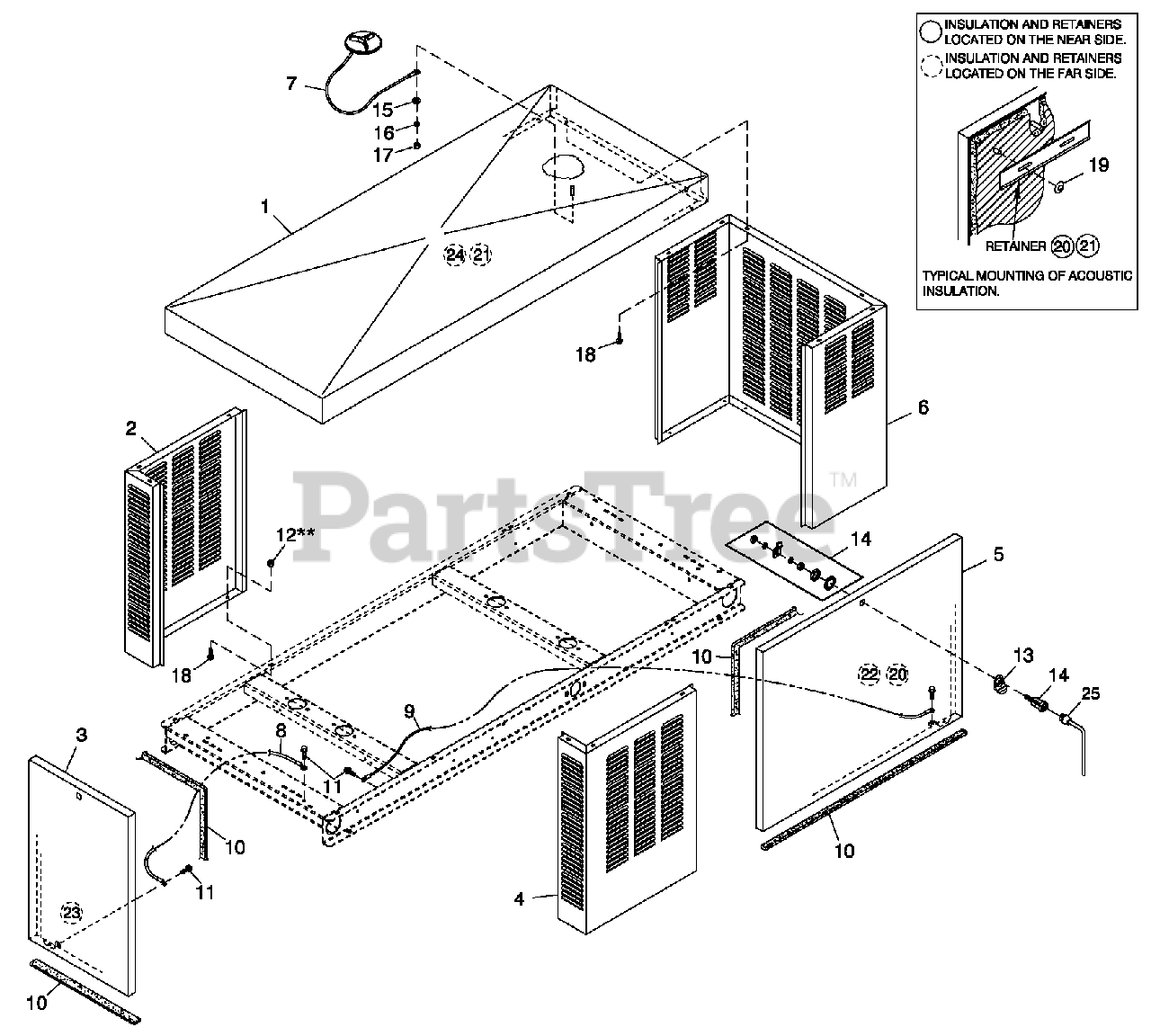

Enclosure C1 CPL (0F7356) Parts Diagram

  • Title

1

0F7003

ROOF C1 CPL

$

$

Not available

2

0F7004

CORNER POST LH SIDE C1 CPL

$

$

Not available

3

0F7008

DOOR REAR C1 CPL

$

$

Not available

4

0F7005

CORNER POST RH SIDE C1 CPL

$

$

Not available

5

0F7007

DOOR LH & RH SIDE C1 CPL

$

$

Not available

6

0F7006

DUCT FRONT DISCHARGE C1 CPL

$

$

Not available

7

Generac 0C2634A

ASSEMBLY COVER ACCESS
(Superseded to 0C2634ASRV)

Note: USE 0C2634ASRV

$23.99

$

Usually ships in 2-12 days

0

8

Generac 912970091

ASSY WIRE 14AWG 13.8" GRN/YEL

$

$

Not available

9

Generac 912970090

ASSY WIRE 14AWG 33.5" GRN/YEL

$

$

Not available

10

Generac 0E5968

GASKET EXTRUDED TRIM (356" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$4.49

$

Usually ships in 2-12 days

0

11

Generac 0E3257

SCREW HWHTF M6'1.0 X 16

$5.49

$

Usually ships in 2-12 days

0

12

Generac 77992

NUT HEX LOCK M6'1.0 SS NY INS

Note: ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURED USING ITEM 18 & 11 THREAD FORMINGFASTENER AND ITEM 12 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTE THREADFRMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS INENCLOSU

$

$

Not available

13

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$12.99

$

Usually ships in 2-12 days

0

14

Generac 0F5048D

VISE'ACTION LATCH SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$40.99

$

In Stock, only 2 left!

0

15

Generac 22473

WASHER FLAT 1/4'M6 ZINC

$

$

Not available

16

Generac 22097

WASHER LOCK M6'1/4

$

$

Not available

17

Generac 22127

NUT HEX 1/4'20 STEEL

$

$

Not available

18

Generac 0C2454

SCREW THF M6'1 X 16 N WA Z/JS

$3.99

$

Usually ships in 2-12 days

0

19

Generac 78115

WASHER SELF LOCKING DOME

$

$

Not available

20

Generac 0F3890B

RETAINER INSULATION (820)

$23.99

$

Usually ships in 2-12 days

0

21

Generac 0F3890

RETAINER INSULATION (450)

$12.99

$

Usually ships in 2-12 days

0

22

Generac 0F7365

INSULATION SIDE DOOR C1

Note: ORDER 0H7518

$

$

Not available

23

Generac 0F7365B

INSULATION REAR DOOR C1 CPL
(Superseded to 0H7518B)

Note: ORDER 0H7518B

$56.99

$

Usually ships in 2-12 days

0

24

Generac 0F7365A

INSULATION ROOF C1 CPL
(Superseded to 0H7518A)

Note: ORDER 0H7518A

$427.99

$

Usually ships in 2-12 days

0

25

Generac 0F8869D

KEY VISE'ACTION LATCH SLOT CIR

$14.99

$

Usually ships in 2-12 days

0
