QT02016GNSN - Generac 20kW Home Standby Generator (SN: 4647429 - 4794931) (2007) Alt Common Parts 20KW/25KW (0G3802) Parts Diagram

20kW Home Standby Generator

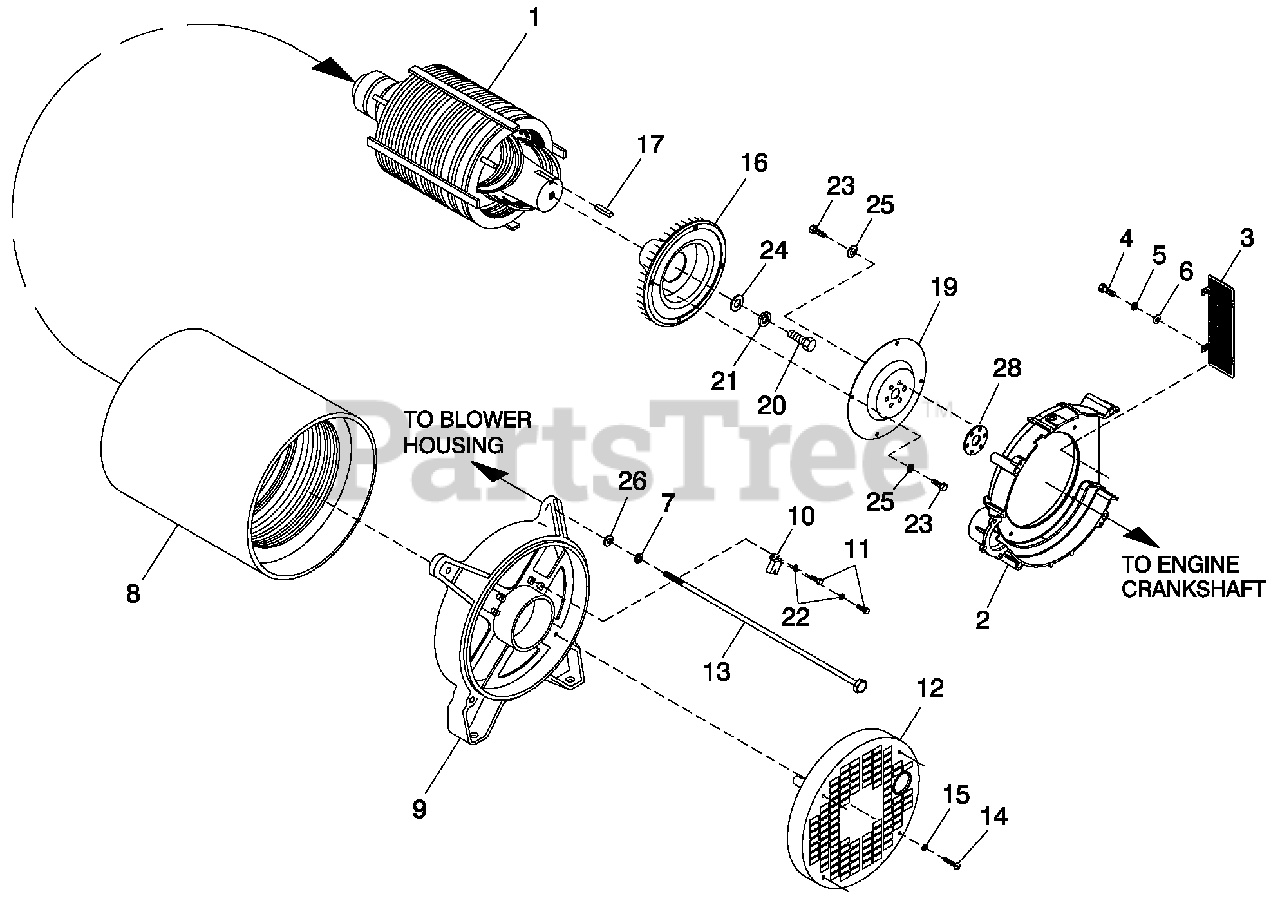

Alt Common Parts 20KW/25KW (0G3802) Parts Diagram

  • Title

ROT0RS BELOW MUST BE VERIFIED BY SERIAL NO. AND B.O.M.

$

$

Not available

1

Generac 0G2927

RTR-102-20.0AD1 CPL (2006) (FOR UNITS BUILT AFTER FEBRUARY 2007)

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$1698.99

$

Usually ships in 2-12 days

0

Generac 0G2827

ASSY RTR 25KW 2P (2006) (FOR UNITS BUILT AFTER FEBRUARY 2007)

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$2208.99

$

Usually ships in 2-12 days

0

Generac 098675

ASSY RTR 20KW 2PH (FOR UNITS BUILT BEFORE FEBRUARY 2007)

$

$

Not available

Generac 098936

ASSY RTR 25KW 2PH (FOR UNITS BUILT BEFORE FEBRUARY 2007)

$

$

Not available

2

Generac 0G0820

HOUSING BLOWER MACHINED 1.6L

Note: ORDER 0G0820A

$

$

Not available

3

Generac 0G1019

GUARD BLOWER HOUSING 1.6L

$

$

Not available

4

Generac 020746

SCREW PPHM M5-0.8 X 8 ZINC

$

$

Not available

5

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

Usually ships in 2-12 days

0

6

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$1.49

$

Usually ships in 2-12 days

0

7

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

STATORS BELOW MUST BE VERIFIED BY SERIAL NO. AND B.O.M.

$

$

Not available

8

Generac 0F8218

STR 102 20AD1 CPL (FOR UNITS BUILT BEFORE FEBRUARY 2007)

$

$

Not available

Generac 0F8220

STR-102-20GD1 CPL (FOR UNITS BUILT BEFORE FEBRUARY 2007)

Note: MUST SHIP VIA LTL TRUCK. CANNOT SHIP UPS.

$695.99

$

Usually ships in 2-12 days

0

Generac 0G1317

ASSY STATOR 25KW 1PH D (FOR UNITS BUILT BEFORE FEBRUARY 2007)

$

$

Not available

Generac 0G1316

ASSY STATOR 25KW 3PH D (FOR UNITS BUILT BEFORE FEBRUARY 2007)

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$2325.99

$

Usually ships in 2-12 days

0

Generac 0G2926

STR-102-20.0AD1 CPL (2006) (FOR UNITS BUILT AFTER FEBRUARY 2007)

$3602.99

$

Usually ships in 2-12 days

0

Generac 0G3682

STR-102-20.0GD1 CPL (2006) (FOR UNITS BUILT AFTER FEBRUARY 2007)

$2718.99

$

Usually ships in 2-12 days

0

Generac 0G2826

ASSY STR 102 25AD1 (2006) (FOR UNITS BUILT AFTER FEBRUARY 2007)

$2225.99

$

Usually ships in 2-12 days

0

Generac 0G3683

STR-102-25.0GD1 CPL (2006) (FOR UNITS BUILT AFTER FEBRUARY 2007)

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$3738.99

$

Usually ships in 2-12 days

0

9

Generac 0A5382

BEARING CARRIER REAR

$239.99

$

Usually ships in 2-12 days

0

10

Generac 075591

ASSY HOLDER BRUSH
(Superseded to G075591)

$292.99

$

Usually ships in 2-12 days

0

11

Generac 051787

SCREW HHC M4-0.7 X 16 G8.8

$

$

Not available

12

Generac 0A5601A

COVER REAR BEARING

$1792.99

$

Usually ships in 2-12 days

0

13

Generac 075554B

BOLT STATOR X 16" LG

$17.99

$

Usually ships in 2-12 days

0

14

Generac 0A9375

SCREW RHM #10-24 X 2

$17.99

$

Usually ships in 2-12 days

0

15

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.99

$

Usually ships in 2-12 days

0

16

Generac 0G0430

FLYWHEEL & RING GEAR ASSY 1.6L

Note: ORDER P/N 0G4196.

$

$

Not available

17

Generac 042558

KEY SQ 3/8 X 1 STEEL

$

$

Not available

19

Generac 0G0965B

PLATE FLEX 1.6L R12.7

$44.99

$

Usually ships in 2-12 days

0

20

Generac 053607

SCREW HHC M12-1.75 X 35 G8.8

$

$

Not available

21

Generac 051769

WASHER LOCK M12

$

$

Not available

22

Generac 023365

WASHER SHAKEPROOF INT #8

$

$

Not available

23

Generac 0F3353

SCREW HHC M10-1.0 X 20 G10.9

Note: APPLY LOCTITE 242 BEFORE THREADING SCREW INTO CRANKSHAFT.

$2.49

$

Usually ships in 2-12 days

0

24

Generac 072578

SPACER ROTOR SHAFT

$

$

Not available

25

Generac 0G3787

WASHER .41 ID .94 OD .12 THK

$2.49

$

Usually ships in 2-12 days

0

26

Generac 0A8830

WASHER FLAT .34 ID X .75 OD

$8.99

$

In Stock, only 1 left!

0

27

Generac 077043E

FLEX CONDUIT 1" BLACK (NOT SHOWN)

$3.99

$

Usually ships in 2-12 days

0

28

Generac 0G2070

PLATE SPACER 14GA 1.6L

$4.49

$

Usually ships in 2-12 days

0

DECAL DANGER HIGH VOLTAGE BI

$

$

Not available
