QT02024RNAN - Generac 20kW Home Standby Generator (SN: 5031806 - 5031806) (2016) Enclosure C2 (0G5969) Parts Diagram

20kW Home Standby Generator

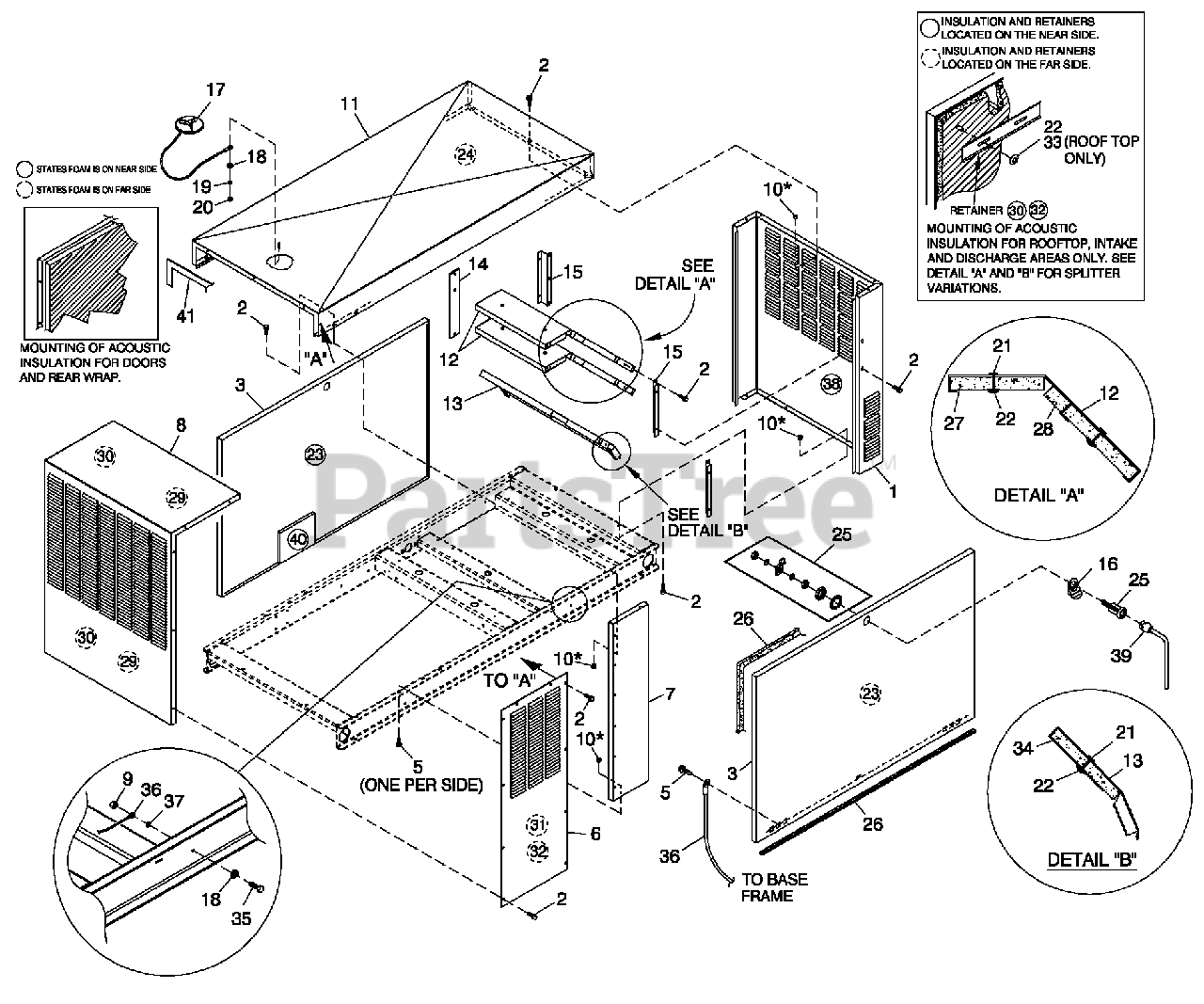

Enclosure C2 (0G5969) Parts Diagram

  • Title

1

0G0045

REAR WRAP C2 CPL

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUI DE BELOW FOR AVAILABLE COLOR AN D/OR ALUMINUM PART NUMBER FORMAT.

$

$

Not available

2

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.99

$

Usually ships in 2-12 days

0

3

Generac 0F5849

DOORC2

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUI DE BELOW FOR AVAILABLE COLOR AN D/OR ALUMINUM PART NUMBER FORMAT.

$

$

Currently unavailable

4

Generac 087233

RIVET POP.1875 X .450 SS

$

$

Not available

5

Generac 0E3257

SCREW TH-FRM M6 W/CAP SHKPRF W

$5.49

$

Usually ships in 2-12 days

0

6

Generac 0F5852

DISCHARGE DUCT LH & RH SIDE C2

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUI DE BELOW FOR AVAILABLE COLOR AN D/OR ALUMINUM PART NUMBER FORMAT.

$

$

Currently unavailable

7

0F9833

FRONT CORNERS C2

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUI DE BELOW FOR AVAILABLE COLOR AN D/OR ALUMINUM PART NUMBER FORMAT.

$

$

Not available

8

Generac 0F5851

DISCHARGE CENTER DUCT C2

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUI DE BELOW FOR AVAILABLE COLOR AN D/OR ALUMINUM PART NUMBER FORMAT.

$

$

Currently unavailable

9

Generac 049813

NUT HEX M6X 1.0 G8YEL CHR
(Superseded to G049813)

$3.49

$

Usually ships in 2-12 days

0

10

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

Note: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURE D USING ITEM 2 & 5 THREAD FORMING FASTENER AN D I/N 10 LOCK NUT. LOCK NUT IS TO BE INSTALLE D AFTER THREA D FORMING FASTENER HAS PENETRATE D THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL ROOF

$1.99

$

Usually ships in 2-12 days

0

11

0F9835

ROOF C2

Note: PART NUMBER SHOWN IS FOR TAN. SEE GUI DE BELOW FOR AVAILABLE COLOR AN D PART NUMBER FORMAT.

$

$

Not available

12

Generac 0F2786

SLITTER C4

$252.99

$

Usually ships in 2-12 days

0

13

Generac 0F2785

SPLITTER LOWER C4

$188.99

$

Usually ships in 2-12 days

0

14

Generac 0F3364

SPLITTER STINGER C2

$45.99

$

Usually ships in 2-12 days

0

15

Generac 0F4880

SUPPORT SPLITTER LH C2

$34.99

$

Usually ships in 2-12 days

0

16

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$12.99

$

Usually ships in 2-12 days

0

17

Generac 0F4487A

ASSEMBLY COVER ACCESS

Note: CUSTOMER ORDER P/N 0F4487ASRV.

$

$

Not available

18

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

20

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$5.49

$

Usually ships in 2-12 days

0

21

Generac 0F3072

INSULATION RETAINMENT HANGER

$1.49

$

Usually ships in 2-12 days

0

22

Generac 078115

WASHER SELF LOCKING DOME #4-40

$

$

Not available

23

Generac 0G5892

INSULATION DOOR C2

$225.99

$

Usually ships in 2-12 days

0

24

Generac 0G5892A

INSULATION ROOF TOP

$232.99

$

Usually ships in 2-12 days

0

25

Generac 0F5048D

VISE-ACTION LATCH SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$40.99

$

In Stock, only 2 left!

0

26

Generac 0E5968

GASKET EXTRUDED TRIM (328" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$4.49

$

Usually ships in 2-12 days

0

27

Generac 0G5892D

INSULATION SPLITTER

$25.99

$

Usually ships in 2-12 days

0

28

Generac 0G5892C

INSULATION SPLITTER

$41.99

$

Usually ships in 2-12 days

0

29

Generac 0F4051C

INSULATION DUCT

$106.99

$

Usually ships in 2-12 days

0

30

Generac 0F3890B

RETAINER INSULATION (820)

$23.99

$

Usually ships in 2-12 days

0

31

Generac 0F4051B

INSULATION DUCT SIDES

$72.99

$

Usually ships in 2-12 days

0

32

Generac 0F3890

RETAINER INSULATION (450)

$12.99

$

Usually ships in 2-12 days

0

33

Generac 078115A

WASHER SELF LOCKING DOME #8-32

$2.99

$

Usually ships in 2-12 days

0

34

Generac 0G5892E

INSULATION LOWER SPLITTER

$47.99

$

Usually ships in 2-12 days

0

35

Generac 042568

SCREW HHC M6-1.0X 20 G8.8

$

$

Not available

36

Generac 0912970094

ASSY WIRE 14 AWG 34.8" GRN/YEL

$

$

Not available

37

Generac 022447

WASHER SHAKEPROOF INT 1/4

$

$

Not available

38

Generac 0G5892B

INSULATION REAR WRAP

$39.99

$

Usually ships in 2-12 days

0

39

Generac 0F8869D

KEY VISE-ACTION LATCH SLOT CIR

$14.99

$

Usually ships in 2-12 days

0

40

Generac 0E5298L

FOAM 300 X 300 THERMAL ACO (APPLIES TO 4.2L UNITS ONLY)

$20.99

$

Usually ships in 2-12 days

0

41

Generac 066760

STRIP SEALANT 1/8 X 1 (44.52"LG)
(Superseded to G066760)

$1.99

$

Usually ships in 2-12 days

0
