QT02516GVSN - Generac 25kW Home Standby Generator (SN: 4647456 - 4784510) (2007) Governor Assembly (0G1231) Parts Diagram

25kW Home Standby Generator

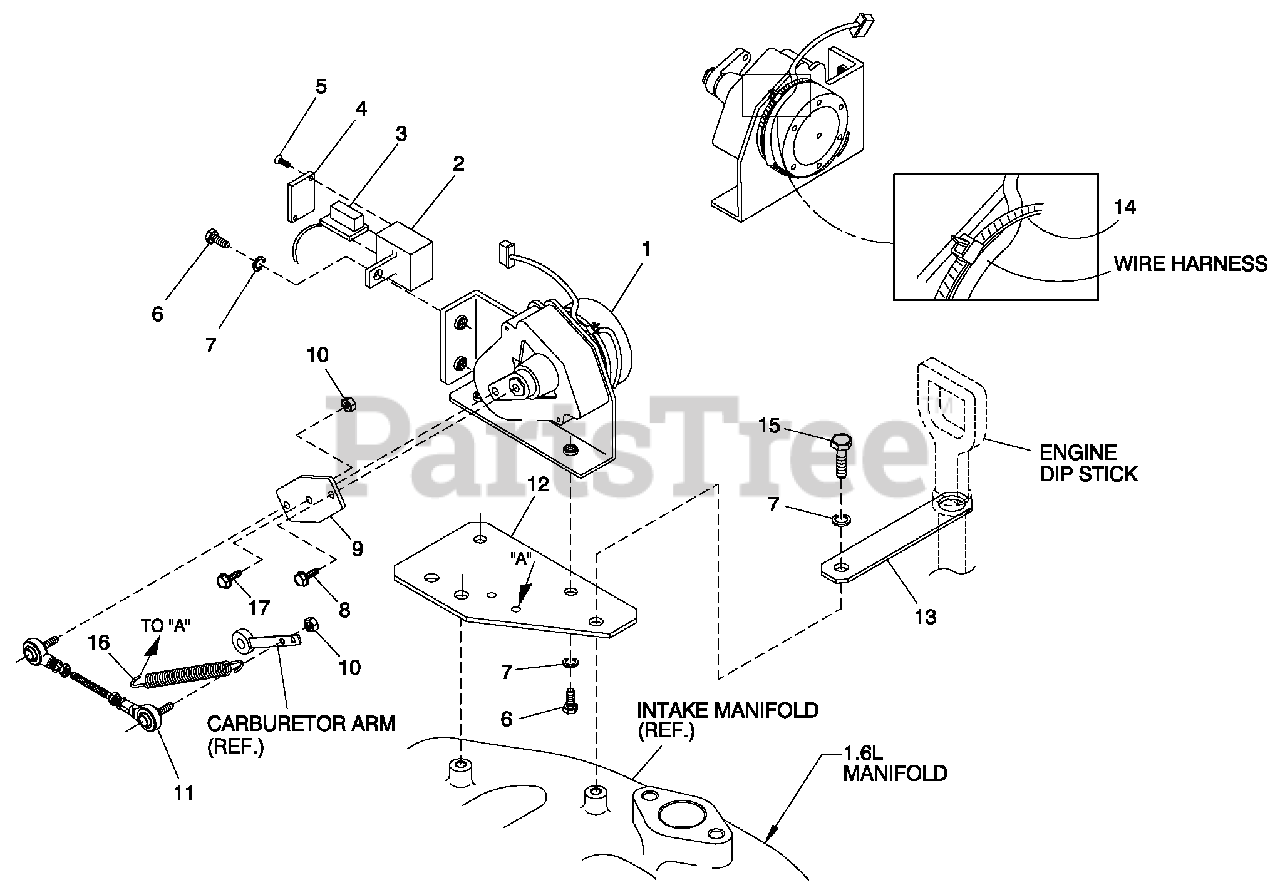

Governor Assembly (0G1231) Parts Diagram

  • Title

1

Generac 098290

ASM MOTOR STEPPER

$

$

Not available

2

Generac 098941A

HOUSING GOVERNOR CONNECTOR

$26.99

$

Usually ships in 2-12 days

0

3

Generac 098958A

CONNECTOR INTERFACE ASSEMBLY

$76.99

$

Usually ships in 2-12 days

0

4

Generac 098942A

COVER CONNECTOR HOUSING

$28.99

$

Usually ships in 2-12 days

0

5

Generac 098225

SCREW FHM #2 X 5/8 SELF TAP

$

$

Not available

6

Generac 043146

SCREW HHC M6-1.0 X 10 G8.8

$

$

Not available

7

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

8

Generac 084543A

SCREW PHM M3-0.5 X 12MM

$1.49

$

Usually ships in 2-12 days

0

9

Generac 098783

LEVER STEPPER MOTOR

$

$

Not available

10

Generac 037398

NUT LOCK HEX #10-32 NYL INS

$

$

Not available

11

Generac 0E1326

ASSY. CARBURETOR LINKAGE ROD

Note: ORDER 0E13260SRV

$

$

Not available

12

Generac 0A7106

BRACKET STEPPER MOTOR

$22.99

$

Usually ships in 2-12 days

0

13

Generac 0G1381

OIL DIP-STICK BRACKET 1.6L

$

$

Currently unavailable

14

Generac 029333A

TIE WRAP 7.4"X.19" BLK UL

$0.99

$

Usually ships in 2-12 days

0

15

Generac 022507

SCREW HHC 1/4-20 X 1/2 G5

$

$

Not available

16

Generac 0E1694

SPRING ANTI LASH

$11.99

$

Usually ships in 2-12 days

0

17

Generac 064526

SCREW TAP HWH #6-25 X 3/8 ZINC
(Superseded to G064526)

$0.99

$

Usually ships in 2-12 days

0
