QT03624JNAN - Generac 36kW Home Standby Generator (SN: 5308419 - 5311271) (2009) Fuel System Ng 2.4l G2 Turb (0H1956) Parts Diagram

36kW Home Standby Generator

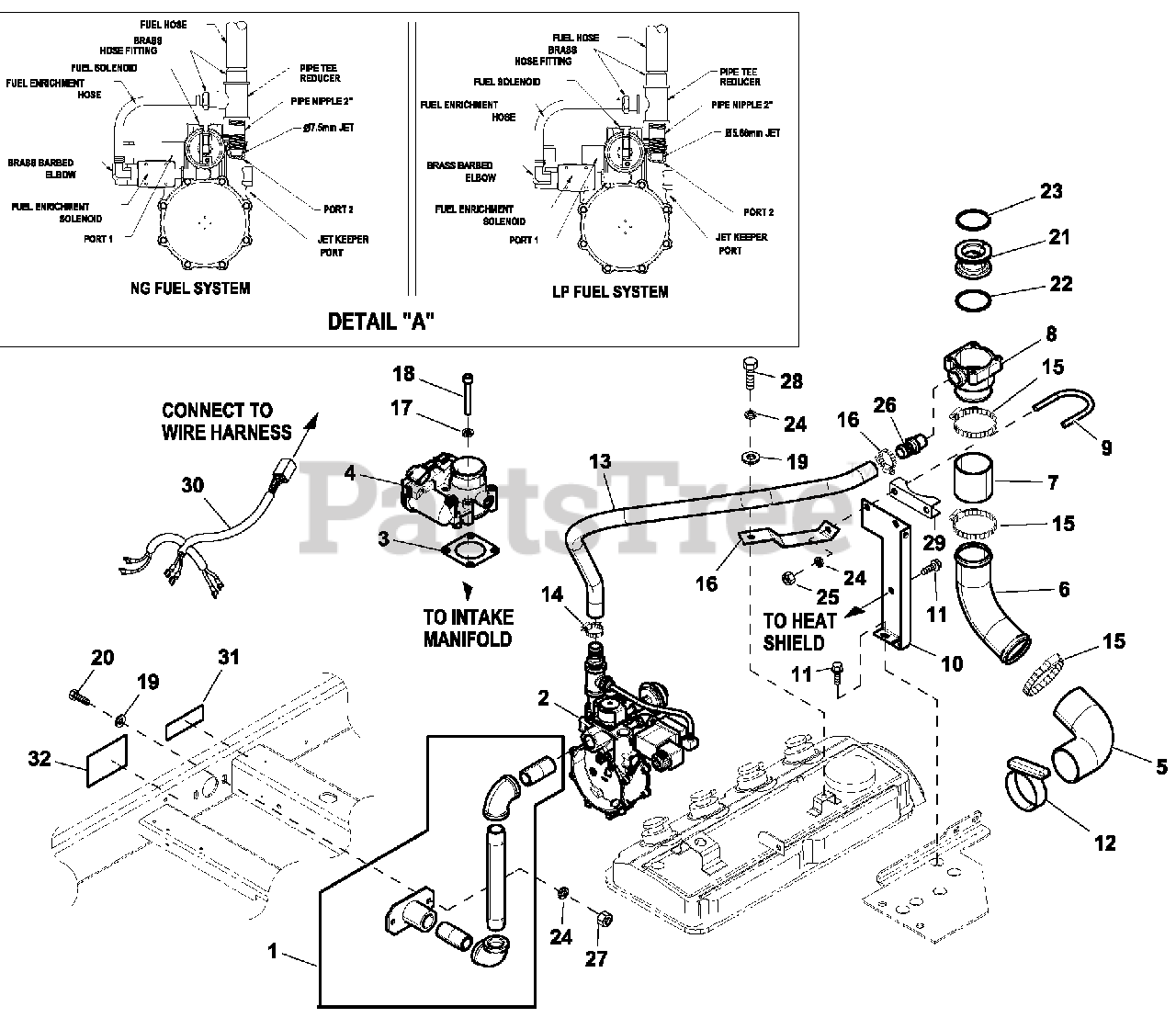

Fuel System Ng 2.4l G2 Turb (0H1956) Parts Diagram

  • Title

1

Generac 0F8274

ASSY RGLTR INLET NPT FITTINGS

Note: ORDER 0F8274SRV

$

$

Not available

2

0F6390K

REGULATOR ASSY 2.4L 36KW

$

$

Not available

3

Generac 0E6586

GASKET, BOSCH 32 & 40

$2.49

$

Usually ships in 2-12 days

0

4

Generac 0E4394

ACTUATOR BOSCH 40, GOVERNOR

$701.99

$

In Stock, only 1 left!

0

5

Generac 063225

ELBOW RUBBER 90 2" ID

$

$

Not available

6

Generac 0H0749A

INTAKE TUBE 2.4L G2 36KW

$88.99

$

Usually ships in 2-12 days

0

7

Generac 040105

HOSE COOL 2IN ID 20R4 (3FT)

$

$

Not available

8

Generac 0G4573B

MIXER ACTUATOR

$42.99

$

Usually ships in 2-12 days

0

9

Generac 036434

BOLT U 5/16-18X 2.09

$

$

Not available

10

Generac 0H07470ST03

BRACKET INTAKE MANIFOLD

$40.99

$

Usually ships in 2-12 days

0

11

Generac 090388

SCREW HHTT M6 -1.0 X 12
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

12

Generac 0G1285C

CLAMP CNST TENSION 1.75-2.625

$9.99

$

Usually ships in 2-12 days

0

13

Generac 059057

HOSE 3/4 ID SAE-30R2 (35"LG)

$

$

Not available

14

Generac 057822

CLAMP HOSE #8 .53-1.00
(Superseded to G057822)

$3.99

$

Usually ships in 2-12 days

0

15

Generac 086133C

CLAMP HI TORQUE 1.75 - 2.625

Note: FOR D3.9L G2 REFER TO PIB09-11-Y39 FOR INFO BEFORE ORDERING.

$22.99

$

Usually ships in 2-12 days

0

16

Generac 0H09080ST03

BRACKET-INTAKE REINFORCEMENT

$44.99

$

Usually ships in 2-12 days

0

17

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

18

Generac 046580

SCREW SHC M6-1.0 X 45

$

$

Not available

19

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

20

Generac 039253

SCREW HHC M8-1.25 X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

21

Generac 0F7790C

VENTURI THROTTLE 24MM

$4.49

$

Usually ships in 2-12 days

0

22

Generac 0E7121

O-RING 47.625 ID X 2.38 WIDTH

$29.99

$

Usually ships in 2-12 days

0

23

Generac 0F2119

O-RING 45.63 ID X 2.62 WIDTH

$1.99

$

Usually ships in 2-12 days

0

24

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

25

Generac 022259

NUT HEX 5/16-18 STEEL
(Superseded to G022259)

$1.49

$

Usually ships in 2-12 days

0

26

Generac 047527

BARBED STR 1/2N P T X 3/4

$

$

Not available

27

Generac 045771

HEX NUT-METRIC
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

28

Generac 042907

SCREW HHC M8-1.25 X 16 G8.8
(Superseded to G042907)

$2.49

$

In Stock, Qty 6

0

29

Generac 036449

SADDLE 2 INCH

$

$

Not available

30

Generac 0F6155

HARNESS FUEL JUMPER SINGLE REG

$72.99

$

Usually ships in 2-12 days

0

31

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

32

Generac 050279

DECAL FUEL INLET NG

$

$

Not available

Generac 050280

DECAL FUEL INLET LPG

$

$

Not available
