QT04039GVSN - Generac 40kW Home Standby Generator (SN: 4327328 - 4341326) (2006) ENG. Common Parts 3.9L Chrysler C2/C4 (0F2743) Parts Diagram

40kW Home Standby Generator

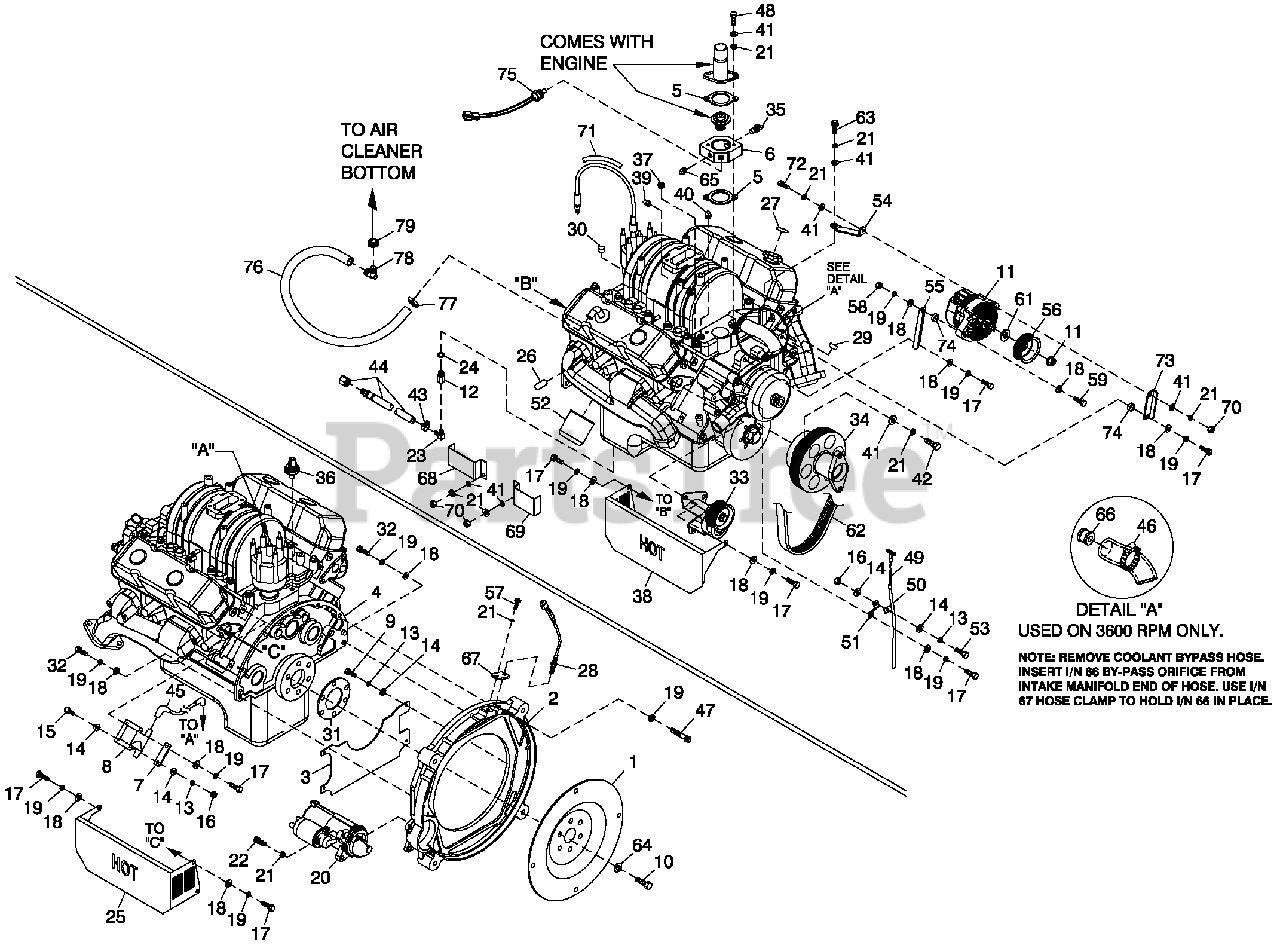

ENG. Common Parts 3.9L Chrysler C2/C4 (0F2743) Parts Diagram

  • Title

1

Generac 0E5048A

FLEXPLATE HSB 3.9L CHRYSLER (1800RPM)

$35.99

$

Usually ships in 2-12 days

0

Generac 0F3903A

FLEX PLATE 2 POLE 3.9L CHRY (3600RPM)

$

$

Not available

2

Generac 0F2982

ENG ADAPTER MACH 3.9L HSB NSPS

$856.99

$

Usually ships in 2-12 days

0

3

Generac 0E6703

COVER FLYWHEEL ACCESS

$44.99

$

Usually ships in 2-12 days

0

4

0F3795

ENGINE INSERTED VALVE 3.9L (3600 RPM)

$

$

Not available

Generac 0E8336

MAKE 3.9L CHRYSLER ENGINE (1800 RPM)

Note: MANUALS: PARTS; 0E9855 SERVICE; 0E9755

$

$

Not available

5

Generac 0E7841

GASKET THERMOSTAT ADAPTOR

$14.99

$

Usually ships in 2-12 days

0

6

Generac 0E7254

MACH THERM ADAPTOR 3.9L CHRY

Note: WHEN INVENTORY IS COMSUMED THIS PART IS NO LONGER AVAILABLE

$

$

Not available

7

Generac 0E7956

BRACKET IGNITION COIL

$87.99

$

Usually ships in 2-12 days

0

8

Generac 0E7953

COIL IGNITION 3.9L CHRYSLER

$366.99

$

Usually ships in 2-12 days

0

9

Generac 047411

SCREW HHC M6-1.0 X 16 G8.8
(Superseded to G047411)

$1.99

$

Usually ships in 2-12 days

0

10

Generac 0E8615

BOLT 7/16-20 X 7/8

$

$

Not available

11

Generac 0E9868A

D.C. ALTERNATOR W/OUT PULLEY

$570.99

$

Usually ships in 2-12 days

0

12

Generac 054455

ADP OIL DRN 1/2-20

$

$

Not available

13

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

14

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

15

Generac 049721

SCREW HHC M6-1.0 X 35 G8.8 BLK
(Superseded to G049721)

$11.99

$

In Stock, Qty 5

0

16

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

Usually ships in 2-12 days

0

17

Generac 036833

SCREW HHC 3/8-16 X 1 G8

$

$

Not available

18

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$1.49

$

Usually ships in 2-12 days

0

19

Generac 022237

WASHER LOCK 3/8

$

$

Not available

20

Generac 0E6729

STARTER 12V

Note: ORDER P/N 0E6729RWK.

$

$

Not available

21

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

22

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

23

Generac 043790

BARBED EL 90 3/8 NPT X 3/8

$

$

Not available

24

Generac 052677

WASHER NYLON .50 X .87 X .06

$

$

Not available

25

Generac 0F1444A

HEAT SHEILD L/H SIDE

$336.99

$

Usually ships in 2-12 days

0

26

Generac 0E9975

CAP VINYL 1/4" ID X 1" DP BLK

$0.99

$

Usually ships in 2-12 days

0

27

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

$1.49

$

Usually ships in 2-12 days

0

28

Generac 0D2244M

ASSY MAGPICKUP (3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$261.99

$

Usually ships in 2-12 days

0

29

Generac 0E0992B

PLUG EXPANSION 21/32" O.D. (WATER PUMP) (QTY 1)

$3.49

$

Usually ships in 2-12 days

0

30

Generac 0E0992A

PLUG EXPANSION 14.1 O.D. (INJCTOR HOLE) (QTY 6)

$4.49

$

Usually ships in 2-12 days

0

31

Generac 0F5806

SPACER FLEX PLATE 3.9L C4 CPL (3600 RPM)

$12.99

$

Usually ships in 2-12 days

0

Generac 0E8731

PLATE FLEX DISK SPACER (1800 RPM)

$1.99

$

Usually ships in 2-12 days

0

32

Generac 052625

SCREW SHC M10-1.5 X 35 G12.9

$

$

Not available

33

Generac 0E7855

TENSIONER W/BRACKET

$479.99

$

Usually ships in 2-12 days

0

34

Generac 0F2694A

PULLEY CRANKSHAFT (3600 RPM)

$194.99

$

Usually ships in 2-12 days

0

Generac 0E7952

PULLEY CRANKSHAFT 3.9L CRYSLR (1800 RPM)

$42.99

$

Usually ships in 2-12 days

0

35

Generac 035606

SENSOR HI COOLANT SHUTDOWN

$

$

Not available

36

Generac 0A8584

SWITCH OIL PRESSURE 10 PSI 2 POL

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$204.99

$

Usually ships in 2-12 days

0

37

Generac 061012

PLUG STD PIPE 1/8 SOCKET HEAD

$

$

Not available

38

Generac 0F1444

HEAT SHIELD R/H SIDE

$43.99

$

Usually ships in 2-12 days

0

39

Generac 050873A

PLUG PIPE 1/4 CSK W/ VIBRA SL

$3.99

$

Usually ships in 2-12 days

0

40

Generac 031919

PLUG STD PIPE 3/8 COUNTERSUNK

$

$

Not available

41

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, only 2 left!

0

42

Generac 030231

SCREW HHC 5/16-18 X 1-1/2 G5 (3600 RPM)

$

$

Not available

Generac 030795

SCREW HHC 5/16-18 X 1 G5 (1800 RPM)

$

$

Not available

43

Generac 048031J

HOSE CLAMP BAND 5/8"

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

44

Generac 069860E

HOSE DRAIN ASSY 28"

$63.99

$

Usually ships in 2-12 days

0

45

Generac 0E7954

CABLE IGN COIL 3.9L CHRYSLER

$72.99

$

Usually ships in 2-12 days

0

46

Generac 057824

CLAMP HOSE #16 .87-1.50 (3600 RPM)
(Superseded to G057824)

$4.99

$

Usually ships in 2-12 days

0

47

Generac 023645

SCREW SHC 3/8-16 X 1.25 G8.8 Z

$

$

Not available

48

Generac 022403

SCREW HHC 5/16-18 X 2 G5

$

$

Not available

49

Generac 0E7950

TUBE DIPSTICK 3.9L CHRYSLER

$

$

Not available

50

Generac 0E7951

DIPSTICK OIL LEVEL 3.9L CHRYSLER

$12.99

$

Usually ships in 2-12 days

0

51

Generac 0E8445

BRACKET DIPSTICK TUBE

$

$

Not available

52

Generac 0E7415

OIL FILTER 3.9L CHRYSLER

Note: INCLUDED IN KITS: 0E833600SM

$52.99

$

In Stock, only 1 left!

0

53

Generac 042568

SCREW HHC M6-1.0 X 20 G8.8

$

$

Not available

54

Generac 0F3447

BRKT L/H SIDE D.C. ALTERNATOR

$38.99

$

Usually ships in 2-12 days

0

55

Generac 0F3446

BRKT R/H SIDE D.C. ALTERNATOR

$41.99

$

Usually ships in 2-12 days

0

56

Generac 0F3216C

PULLEY 132 OD DC ALTERNATOR (3600 RPM)

$60.99

$

Usually ships in 2-12 days

0

Generac 0F3216

PULLEY 80 OD DC ALTERNATOR (1800 RPM)

$44.99

$

Usually ships in 2-12 days

0

57

Generac 039253

SCREW HHC M8-1.25 X 20 G8.8
(Superseded to G039253)

$3.49

$

In Stock, only 1 left!

0

58

Generac 022241

NUT HEX 3/8-16 STEEL

$

$

Not available

59

Generac 022746

SCREW HHC 3/8-16 X 1-3/4 G5

$

$

Not available

60

Generac 0F3641

HARN ENG 3.9L 3600 RPM FLEX PNL (NOT SHOWN) (3600 RPM)

$

$

Not available

Generac 0F4272

HARN ENG 3.9L 1800 RPM FLEX PNL (NOT SHOWN) (1800 RPM)

$479.99

$

Usually ships in 2-12 days

0

61

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$10.99

$

Usually ships in 2-12 days

0

62

Generac 0D3488H

SERPENTINE BELT (60.5")

$88.99

$

Usually ships in 2-12 days

0

63

Generac 022532

SCREW HHC 5/16-18 X 2-1/2 G5
(Superseded to G022532)

$2.49

$

In Stock, only 2 left!

0

64

Generac 0F3844

WASHER FLAT .45 X 1.00

$5.49

$

Usually ships in 2-12 days

0

65

Generac 026925

PLUG STD PIPE 3/8 STEEL SQ HD
(Superseded to G026925)

$2.49

$

Usually ships in 2-12 days

0

66

Generac 0F4110

BYPASS ORIFICE 3.9L CHRYSLER (3600 RPM)

$

$

Not available

67

Generac 0F5454

PLATE MAG PICK-UP ADAPTOR

$73.99

$

Usually ships in 2-12 days

0

68

Generac 0F6027

SHIELD HT RR (C4 3600 RPM ONLY) (BOTH SIDES)

$

$

Not available

69

0F6029

SHIELD HT FRT (C4 3600 RPM ONLY) (BOTH SIDES)

$

$

Not available

70

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC (C4 3600 RPM ONLY)
(Superseded to G045771)

$2.49

$

In Stock, only 3 left!

0

71

0F5928

REFLEX WRAP 13MM X 153.3MM (C4 3600 RPM ONLY)

$

$

Not available

72

087173

SCREW HHC M8-1.25 X 45 G8.8

$

$

Not available

73

Generac 0F6480

BRKT L/H SIDE DC ALTERNATOR

$30.99

$

Usually ships in 2-12 days

0

74

Generac 0F6715

SPACER .41 X .75 X .18 AL

$

$

Currently unavailable

75

Generac 0E0561

ASSY WATER LEVEL SENSOR C/E PL

Note: USE 0G0728

$

$

Not available

76

Generac 059057

HOSE 3/4 ID SAE-30R2 (17” LG)

$

$

Not available

77

Generac 057822

CLAMP HOSE #8 .53-1.00
(Superseded to G057822)

$3.99

$

Usually ships in 2-12 days

0

78

Generac 057795A

BARBED EL 90 3/4 PLASTIC

$7.49

$

Usually ships in 2-12 days

0

79

Generac 057796

GROMMET
(Superseded to G057796)

$21.99

$

Usually ships in 2-12 days

0
