QT04039GVSN - Generac 40kW Home Standby Generator (SN: 4327328 - 4341326) (2006) Muffler 3.9L 40KW Cpl Exhaust C2 (0F3457) Parts Diagram

40kW Home Standby Generator

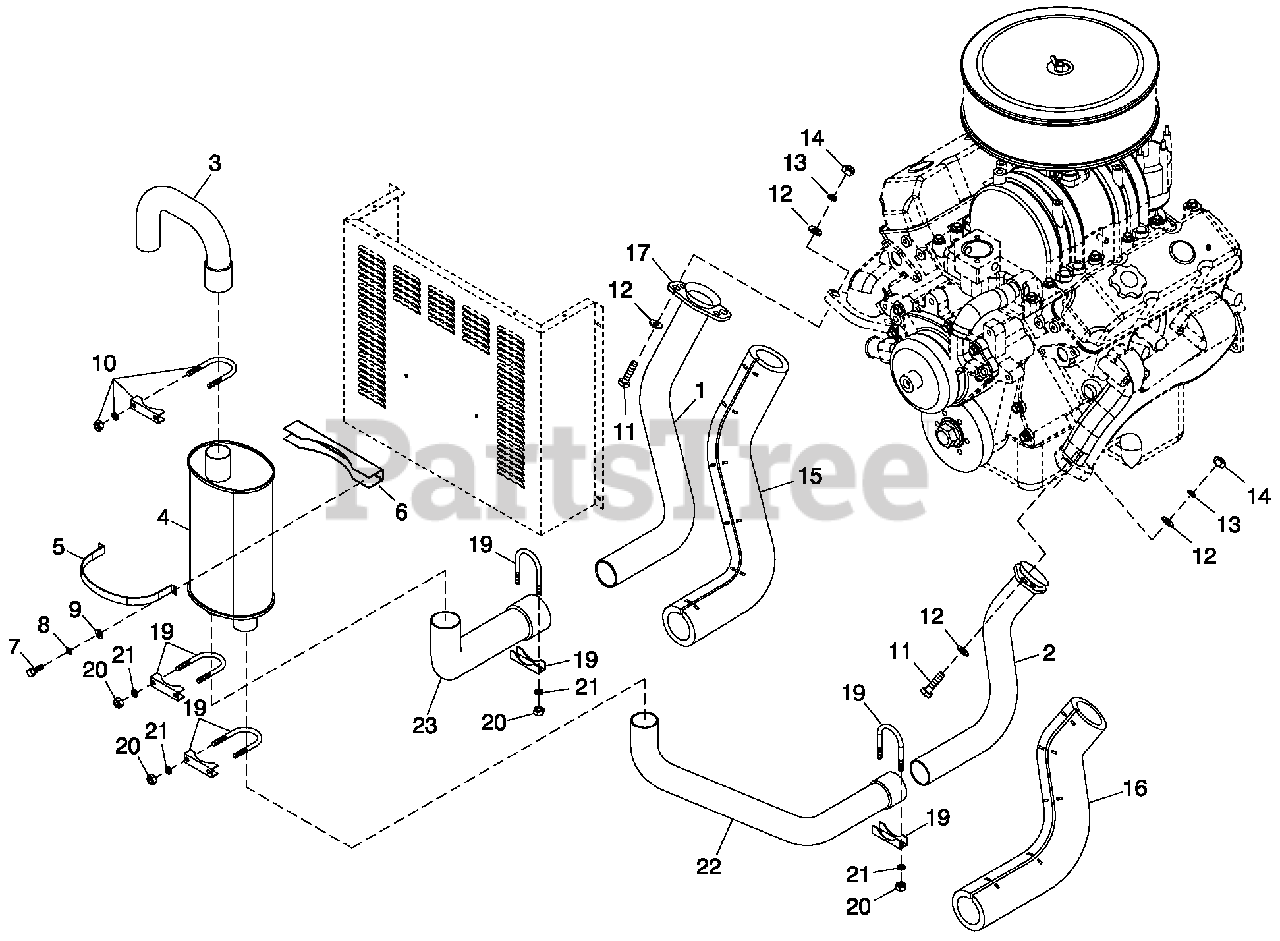

Muffler 3.9L 40KW Cpl Exhaust C2 (0F3457) Parts Diagram

  • Title

1

Generac 0F6504

PIPE R/H SIDE MUFFLER

$236.99

$

Usually ships in 2-12 days

0

2

Generac 0F3127

PIPE L/H SIDE 3.9L CPL

$353.99

$

Usually ships in 2-12 days

0

3

Generac 0F2808B

PIPE EXHAUST MUFFLER OUT

$180.99

$

Usually ships in 2-12 days

0

4

Generac 0F0738

MUFFLER 7" X 9"-(2) 2" IN/2.5" OUT

Note: THIS PART IS REPLACED BY 0K9067

$

$

Not available

5

Generac 0F2962

MUFFLER STRAP

$76.99

$

Usually ships in 2-12 days

0

6

Generac 0F2830

MUFFLER BRACKET STIFFENER

$51.99

$

Usually ships in 2-12 days

0

7

Generac 047411

SCREW HHC M6-1.0 X 16 G8.8
(Superseded to G047411)

$1.99

$

Usually ships in 2-12 days

0

8

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

9

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

10

Generac 080762

BOLT U 3/8-16 X 2.62

$

$

Not available

11

Generac 0D9832

SCREW HHC M12-1.75 X 75 SS

$29.99

$

Usually ships in 2-12 days

0

12

Generac 087171

WASHER FLAT 1/2 SS

$

$

Not available

13

Generac 083215

WASHER LOCK 1/2 SS

$

$

Not available

14

Generac 051548

NUT HEX M12-1.75 G8 SS

$

$

Not available

15

Generac 0F3794

EXHAUST BLANKET 549MM LONG (R/H)

$189.99

$

Usually ships in 2-12 days

0

16

Generac 0F3794A

EXHAUST BLANKET 448MM LONG (L/H)

$170.99

$

Usually ships in 2-12 days

0

17

Generac 0E8816

EXHAUST FLANGE 2" PIPE

$45.99

$

In Stock, only 1 left!

0

19

Generac 036797

BOLT U 5/16-18 X 2.25

$

$

Not available

20

Generac 024114

NUT HEX 5/16-24 STEEL

$

$

Not available

21

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

22

Generac 0F5078

PIPE L/H SIDE MUFFLER

$242.99

$

Usually ships in 2-12 days

0

23

Generac 0F3133

PIPE R/H SIDE 3.9L CPL

$340.99

$

Usually ships in 2-12 days

0
