QT04524JNSY - Generac 45kW Home Standby Generator (SN: 4986484 - 5140757) (2008) ENG Common Parts 2.4L G2 (0G1141) Parts Diagram

45kW Home Standby Generator

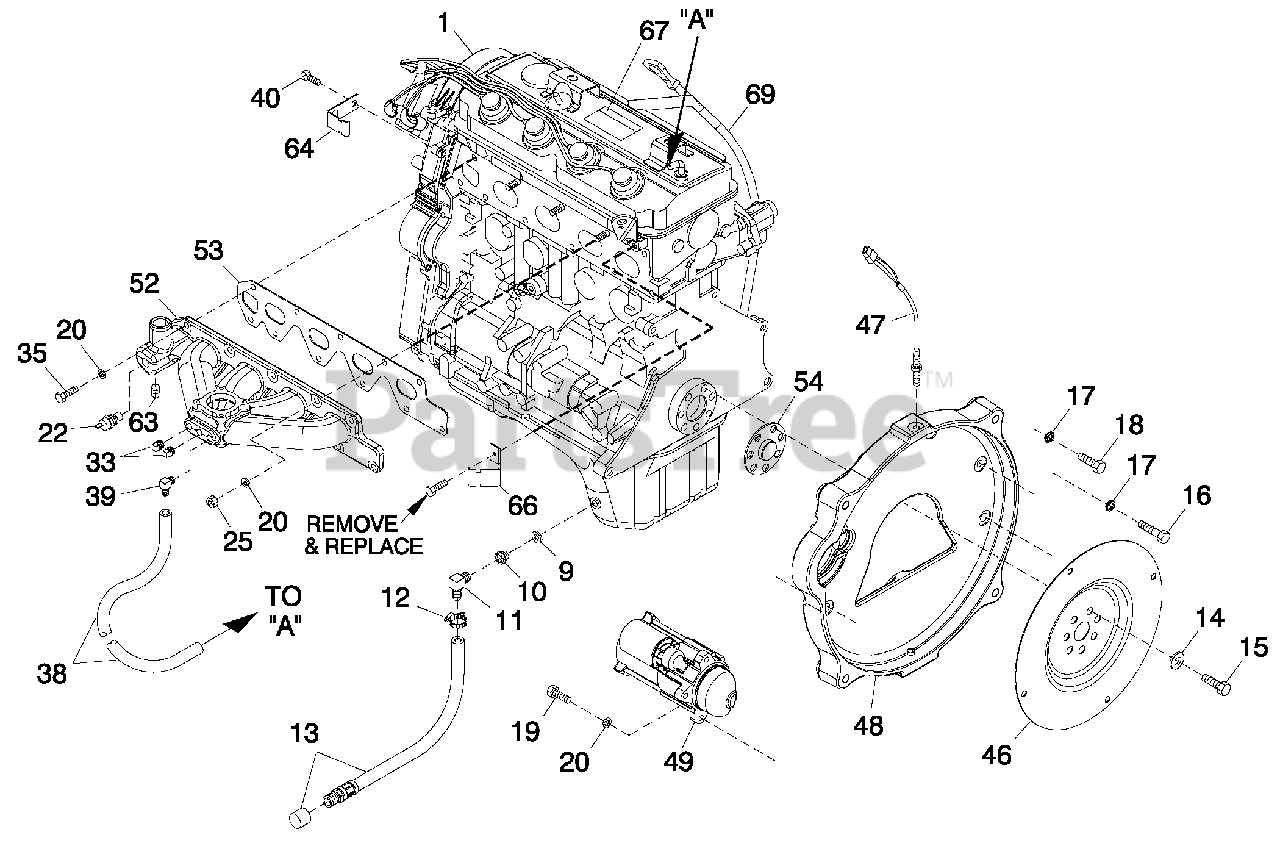

ENG Common Parts 2.4L G2 (0G1141) Parts Diagram

  • Title

1

Generac 0H1951

ENGINE 2.4LG2 4G64 CERT

$

$

Currently unavailable

9

Generac 057772

WASHER NYLON .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0

10

Generac 057765

ADAPTER M14-1.50X 3/8 NPT

$

$

Not available

11

Generac 043790

BARBED EL 90 3/8 NPT X 3/8

$

$

Not available

12

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$3.49

$

In Stock, only 2 left!

0

13

Generac 069860E

HOSE DRAIN ASSY 28"

$63.99

$

Usually ships in 2-12 days

0

14

Generac 063076

WASHER FLAT .531 ID X 1.062 OD

$

$

Not available

15

Generac 0G1394

SCREW HHC M12-1.25X 20 G10.9

$10.99

$

Usually ships in 2-12 days

0

16

Generac 052830

SCREW HHC M10-1.25 X 45 G8.8

$

$

Not available

17

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

18

Generac 062963

SCREW HHC M10-1.25 X 30 G8.8

$

$

Not available

19

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

20

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

22

Generac 0A6751

SWITCH HI-TEMP 245D X 3/8 NPT (R-PANEL)

$99.99

$

Usually ships in 2-12 days

0

33

Generac 026073A

PL U G STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

35

Generac 0A8258

SCREW HHC M8-1.25 X 25 G10.9

$1.49

$

Usually ships in 2-12 days

0

38

Generac 047290

HOSE 3/8 ID SINGLE BRAID (15" LG)
(Superseded to G047290)

$10.99

$

Usually ships in 2-12 days

0

39

Generac 049340

BARBED EL 90 1/4 NPT X 3/8

$

$

Not available

40

Generac 045757

SCREW HHC M6-1.0X25G8.8
(Superseded to G045757)

Note: USED WITH H-PANEL ONLY

$0.99

$

Usually ships in 2-12 days

0

46

Generac 0F9965E

FLEX PLATE 2 POLE 2.4L G2

$61.99

$

Usually ships in 2-12 days

0

47

Generac 0D2244M

ASSY MAGPICK UP(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$261.99

$

Usually ships in 2-12 days

0

48

Generac 0F9420

ADAPTER ENGINE 2.4L MACHINE

$713.99

$

Usually ships in 2-12 days

0

49

Generac 0G7461

STARTER MOTOR 12V

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

52

Generac 0G0707

MANIFOLD INTAKE (U SE HOSE 0G0816)

$258.99

$

Usually ships in 2-12 days

0

Generac 0G8488

MANIFOLD INTAKE (MACHINED) (U SE HOSE 0H1546)

$332.99

$

Usually ships in 2-12 days

0

53

Generac 0G0950

GASKET INTAKE MANIFOLD

Note: SUPPLIED WITH ENGINE

$69.99

$

Usually ships in 2-12 days

0

54

Generac 0F9583

SPACER 2.4L G2 FLEX PLATE

$37.99

$

Usually ships in 2-12 days

0

63

Generac 026925

PLUG STD PIPE 3/8 STEEL SQ HD
(Superseded to G026925)

$2.49

$

Usually ships in 2-12 days

0

64

Generac 0F2776

BRACKET, SIGNAL CONDITIONER

Note: USED WITH H-PANEL ONLY

$3.99

$

Usually ships in 2-12 days

0

66

0F2776D

BRACKET SIGNAL CONDITONER

Note: USED WITH H-PANEL ONLY

$

$

Not available

67

Generac 0G9378

DECAL SORE EPA CERTIFICATION

$

$

Currently unavailable

69

Generac 0G10080125

ROD ASSY OIL LEVEL GAUGE

$88.99

$

Usually ships in 2-12 days

0
