QT04524KNSX - Generac 45kW Home Standby Generator (SN: 7060619 - 7060619) (2012) Engine Common Prt 2.4L G2 45KW (0H7322) Parts Diagram

45kW Home Standby Generator

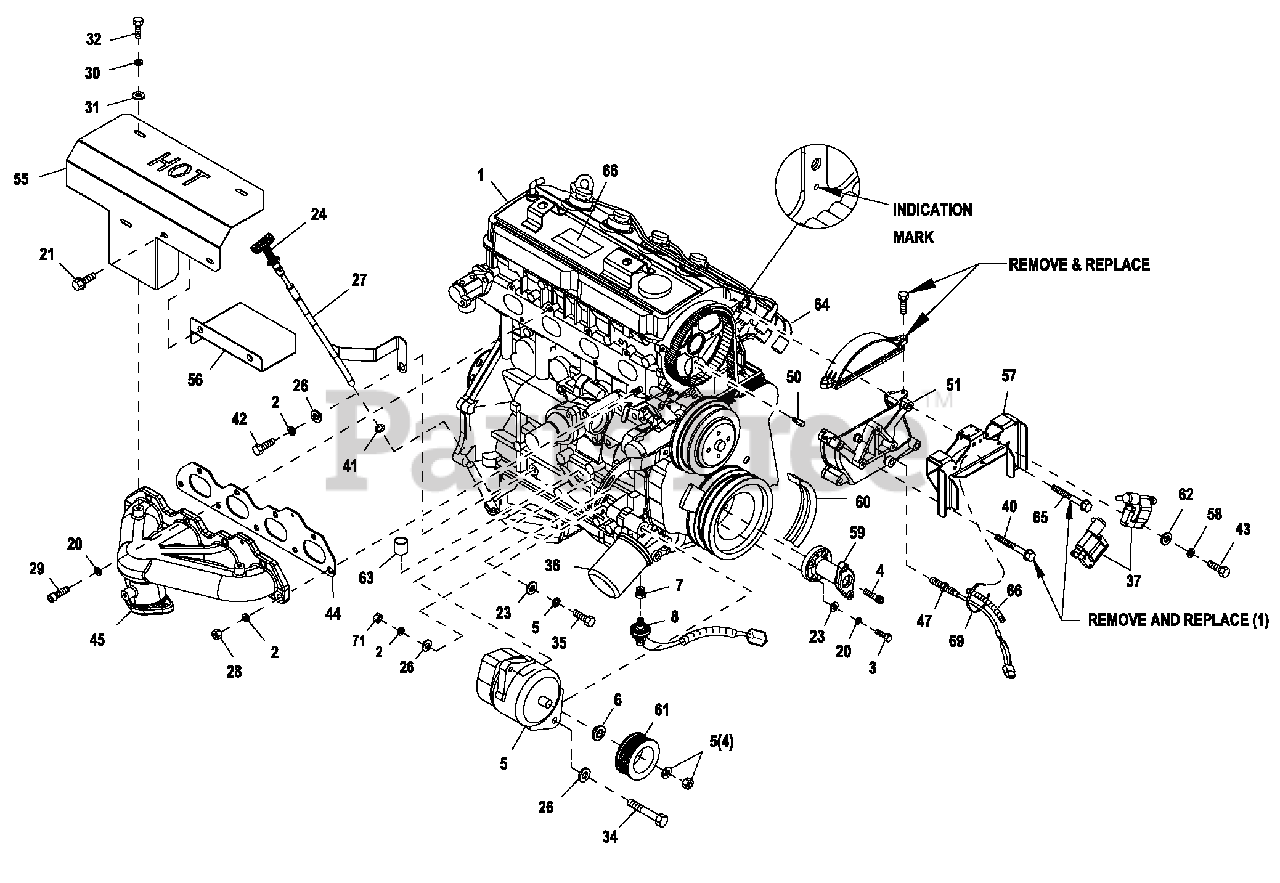

Engine Common Prt 2.4L G2 45KW (0H7322) Parts Diagram

  • Title

1

Generac 0H1619

ENGINE 2.4LG2 CERTIFIED

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 046526

WASHER LOCK M10

$

$

Not available

3

Generac 039414

SCREW HHC M8-1.25X35 G8.8
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

4

Generac 0G0149

SCREW SHC M14-1.5X 35 G10.9

$5.99

$

Usually ships in 2-12 days

0

5

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THE THREADS.

$519.99

$

Usually ships in 2-12 days

0

6

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

7

Generac 042574

ADAPTOR 1/8 NPTF TO 1/8 BSPT

$

$

Not available

8

Generac 0H7435

HARN LOW OIL PRESS SWITCH ASSY

$80.99

$

Usually ships in 2-12 days

0

9

Generac 057772

WASHER NYLON .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0

10

Generac 057765

ADAPTER M14-1.50X 3/8 NPT

$

$

Not available

11

Generac 043790

BARBED EL 90 3/8 NPT X 3/8

$

$

Not available

12

Generac 0C7649

CLAMP HOSE .38- 87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 3 left!

0

13

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

14

Generac 063076

WASHER FLAT .531 ID X 1.062 OD

$

$

Not available

15

Generac 0G1394

SCREW HHC M12-1.25 X 20 G10.9

$8.99

$

Usually ships in 2-12 days

0

16

Generac 052830

SCREW HHC M10-1.25X45 G8.8

$

$

Not available

17

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

18

Generac 062963

SCREW HHC M10-1.25X30 G8.8

$

$

Not available

19

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

20

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

21

Generac 0D6029

SCREW THF M6-1 X 16 N WAZ/JS

$18.99

$

Usually ships in 2-12 days

0

22

Generac 0E0502

TEMPERATURE SENDER

$53.99

$

Usually ships in 2-12 days

0

23

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

24

Generac 0H6859P

ASSEMBLY DIPSTICK G2.4L

$23.99

$

Usually ships in 2-12 days

0

25

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

<02

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

27

Generac 0G8427A

ASSY DIPSTICK TUBE 2.4 G2

$19.99

$

Usually ships in 2-12 days

0

28

Generac 046525

NUT HEX M10-1.25 G8YELCHR

$

$

Not available

29

Generac 058306

SCREW SHC M8-1.25 X 25 G12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

30

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

31

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

32

Generac 043116

SCREW HHC M6-1.0 X 12 G8.8
(Superseded to G043116)

$0.99

$

Usually ships in 2-12 days

0

33

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

34

Generac 0E4507

SCREW HHC M10-1.5X 120 C8.8

$4.99

$

Usually ships in 2-12 days

0

35

Generac 0A8258

SCREW HHC M8-1.25X 25 G10.9

$0.99

$

Usually ships in 2-12 days

0

36

Generac 0A45310244

FILTER 1.5L/2.4LG2 OIL

Note: SUPPLIED WITH ENGINE.

$50.99

$

Usually ships in 2-12 days

0

37

Generac 0G8853

COIL-2.4LG2 IGNITION

$183.99

$

Usually ships in 2-12 days

0

38

Generac 047290

HOSE 3/8 ID SINGLE BRAID (15" LG)
(Superseded to G047290)

$10.99

$

In Stock, only 1 left!

0

39

Generac 049340

BARBED EL 90 1/4 NPT X 3/8

$

$

Not available

40

Generac 052265

SCREW HHC M8-1.25X65 C8.8

$

$

Not available

41

Generac 0G3823

O-RING SIZE 9.0MM X 2.0MM NITR

$0.99

$

Usually ships in 2-12 days

0

42

Generac 052213

SCREW HHC M10-1.25X 20 C8.8

$

$

Not available

43

Generac 034413

SCREW HHM #10-32X1-1/4

$

$

Not available

44

Generac 0G0951

GASKET EXHAUST MANIFOLD

Note: SUPPLIED WITH ENGINE.

$35.99

$

Usually ships in 2-12 days

0

45

Generac 0G3910

EXHAUST MANIFOLD G2 (MACHINE)

$272.99

$

Usually ships in 2-12 days

0

46

Generac 0F9965E

FLEX PLATE 2 POLE 2.4L G2

$51.99

$

Usually ships in 2-12 days

0

47

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

48

Generac 0F9420

ADAPTER ENGINE 2.4L MACHINE

$675.99

$

Usually ships in 2-12 days

0

49

Generac 0G7461

STARTER MOTOR 12V

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

50

Generac 0G1472A

CAM SENSOR PIN ASSY

$27.99

$

Usually ships in 2-12 days

0

51

Generac 0G1476

COVER CAM GEAR G2 REWORKED

Note: ORDER P/N 0G1477.

$

$

Currently unavailable

52

Generac 0G8488

MANIFOLD INTAKE (MACHINED)

$305.99

$

Usually ships in 2-12 days

0

53

Generac 0G0950

GASKET INTAKE MANIFOLD

Note: SUPPLIED WITH ENGINE.

$63.99

$

Usually ships in 2-12 days

0

54

Generac 0F9583

SPACER 2.4L G2 FLEX PLATE

$31.99

$

Usually ships in 2-12 days

0

55

Generac 0G92210AS0R

SHIELD HEAT

$79.99

$

Usually ships in 2-12 days

0

56

Generac 0G0792A

SHIELD HEAT SML

$11.99

$

Usually ships in 2-12 days

0

57

Generac 0G8852

BRACKET ASM-2.4L COIL G2

$137.99

$

Usually ships in 2-12 days

0

58

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

59

Generac 0F9501

ADAPTER 2.4L CRANKSHAFT MACH

$68.99

$

Usually ships in 2-12 days

0

60

Generac 0G0952

POLY V-BELT G2

Note: SUPPLIED WITH ENGINE.

$67.99

$

Usually ships in 2-12 days

0

61

Generac 0G0788

PULLEY DC ALTERNATOR

$35.99

$

Usually ships in 2-12 days

0

62

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

63

Generac 0G9520

PLUG TAPER

Note: APPLY LOCTITE 620 BEARING RETAINMENT COMPOUND TO I/N 72.

$11.99

$

Usually ships in 2-12 days

0

64

Generac 0G8854

SPARK PLUG WIRE SET 2.4L G2 IG

$129.99

$

In Stock, only 1 left!

0

65

Generac 052203

SCREW HHC M8-1.25X70 G8.8

Note: SUPPLIED WITH ENGINE.

$

$

Not available

66

Generac 077043H

CONDUIT FLEX .25"ID

$1.99

$

Usually ships in 2-12 days

0

67

Generac 0G7313

DECAL EMISSION CTRL INFO 2.4L

$

$

Not available

68

Generac 0H6689

HARN ENG G2.4LG2 NEXUS

$1260.99

$

Usually ships in 2-12 days

0

69

Generac 029333A

TIE WRAP UL 7.4"X .19" BLK

$0.99

$

Usually ships in 2-12 days

0

70

0H0015

HARN EMISSIONS OVERLAY 2.4L (NOT SHOWN)

Note: CALIFORNIA EMISSIONS COMPLIANT MODELS ONLY

$

$

Not available

71

Generac 045772

NUT HEX M10-1.5 G8 YEL CHR

$

$

Not available
