QT06024GNSN - Generac 60kW Home Standby Generator (SN: 5374119 - 5447069) (2009) C2 Cooling Sytem & Fan Drive (0G7577) Parts Diagram

60kW Home Standby Generator

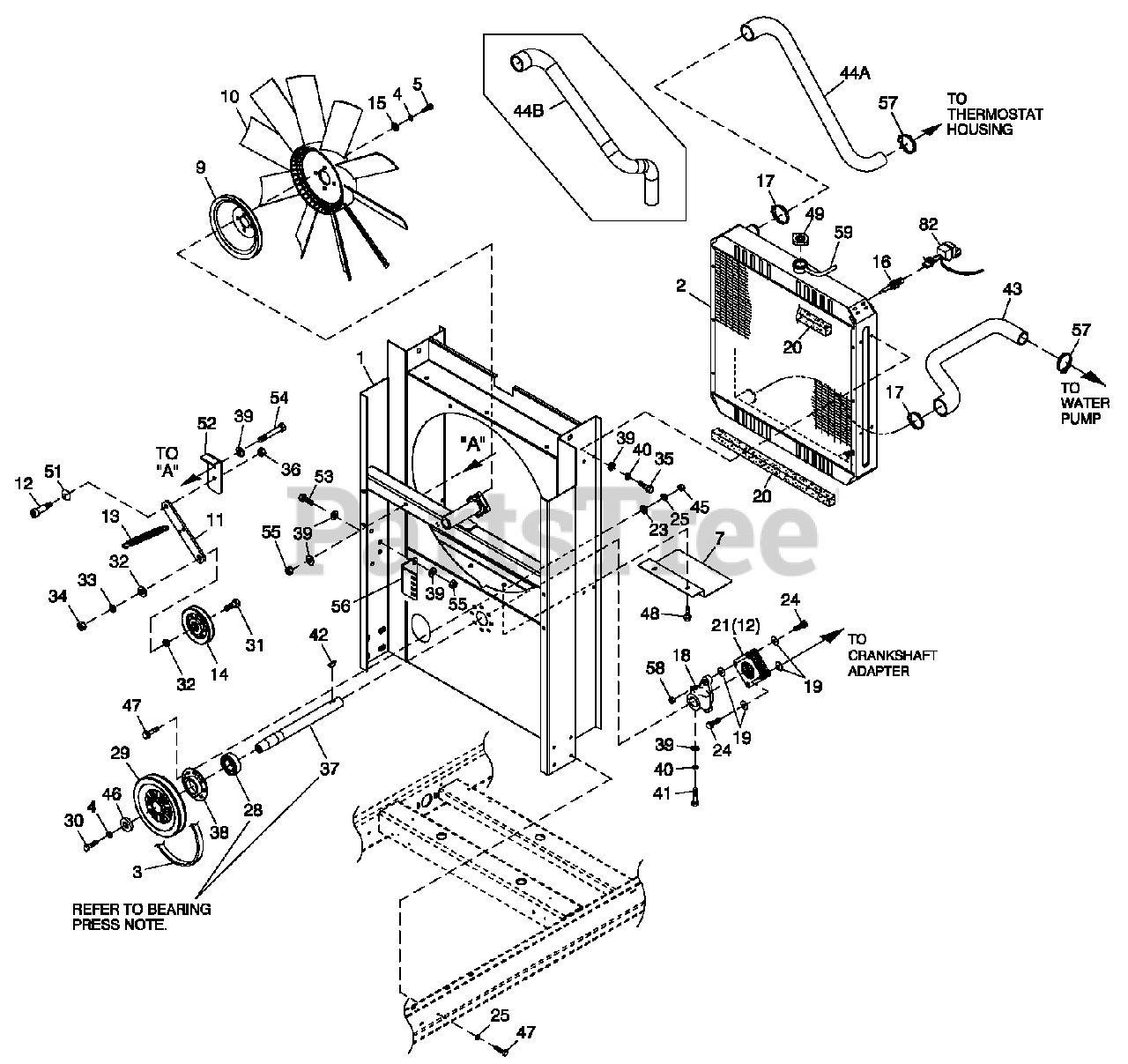

C2 Cooling Sytem & Fan Drive (0G7577) Parts Diagram

  • Title

1

Generac 0G68030ST03

WELDMENT RADIATORSUPPORTC2

Note: ORDER 0H67310SRV

$

$

Not available

2

Generac 0F2608

RADIATOR 598 X 568 X 49 CPL RH

Note: MUST ALSO ORDER: 069860E-DRAIN HOSE 043790-BRASS FITTING 090283-RADIATOR CAP. FOR 1.6L OR 2.4L QT ORDER RADIATOR CAP 0G0427. FOR OVERFLOW ADAPTR ORDER 0H2258.

$1232.98

$

Usually ships in 2-12 days

0

3

Generac 0F5263

V-BELT 31/64" X 57-3/8"

$35.99

$

Usually ships in 2-12 days

0

4

Generac 046526

WASHER LOCKM10

$

$

Not available

5

Generac 059981

SCREWHHC M10-1.5X30 G10.9

Note: APPLY MEDIUM STRENGTH BLUETHREAD LOCKING FLUIDTO THREADS.

$

$

Not available

7

Generac 0F5050A

SHIELD RADIATOR C4

$47.99

$

Usually ships in 2-12 days

0

9

Generac 0F2573

PULLEY FANV-GROOVE9"

$76.99

$

Usually ships in 2-12 days

0

10

Generac 0F4011

FAN COOL 22" D IA 10 BLADE LH

$132.99

$

Usually ships in 2-12 days

0

11

Generac 0G56820ST03

FLATTENSIONERARM

$157.99

$

Usually ships in 2-12 days

0

12

Generac 0G2990

SHOULDER BOLT 3 /8X 1/2"

$2.99

$

Usually ships in 2-12 days

0

13

Generac 0F2862

SPRING TENSION CPL

$9.99

$

Usually ships in 2-12 days

0

14

Generac 0F2560

PULLEY V-BELT 4" FLANGED

$27.99

$

In Stock, only 3 left!

0

15

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

16

0E 2507

PROBE COOLANT LEVEL 3/8NPTF

$

$

Not available

Generac 0H1827

PROBE COOLANT LEVEL 3/8-18NPTF (USE WITH N 82, P/N 0H1851)

$48.99

$

Usually ships in 2-12 days

0

17

Generac 035685

CLAMP HOSE#28 1.32-2.25

$

$

Not available

18

Generac 0F2561

HUB FLEX PLATE

$48.99

$

Usually ships in 2-12 days

0

19

Generac 0C8145

WASHERFLEX (THIN)

$2.99

$

Usually ships in 2-12 days

0

20

052 250

TAPE FOAM 1X 1(26.75' LG)

$

$

Not available

21

Generac 0C7043

DISKFLEX

Note: IF YOU NEED KIT ORDER P/N 0E33940SRV.KIT CONTAINS QTY-12 OF 0C7043.

$

$

Not available

23

Generac 022473

WASHERFLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

24

Generac 0C8146

SCREW HHC 5/16-24X1.124

Note: APPLY MEDIUM STRENGTH BLUETHREAD LOCKING FLUIDTO THREADS.

$2.49

$

Usually ships in 2-12 days

0

25

Generac 022097

WASHERLOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

28

Generac 031971

BEARING #6205 2NSE C3 E SRI2 S
(Superseded to G031971)

$35.99

$

In Stock, only 1 left!

0

29

Generac 0H0271

PULLEY 5.125" DIA MACHINED

$45.99

$

Usually ships in 2-12 days

0

30

Generac 042911

SCREW HHC M10-1.5X30 G88

Note: APPLY MEDIUM STRENGTH BLUETHREAD LOCKING FLUIDTO THREADS.

$

$

Not available

31

Generac 0F2872

SCREW HHC 1/2-13X 2" G8

$19.99

$

Usually ships in 2-12 days

0

32

Generac 022304

WASHERFLAT 1/2ZINC
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

33

Generac 022195

WASHER LOCK 1/2

$

$

Not available

34

Generac 022196

NUT HEX 1/2-13 STEEL

$

$

Not available

35

Generac 0F8651

SCREW HHFCM8-125 X 2 0W M 6

$1.99

$

Usually ships in 2-12 days

0

36

Generac 070015

NUT HEX LOCK 5/16-18 NY INS SS

$

$

Not available

37

Generac 0F9867

SHAFT FAN DRVE

$98.99

$

Usually ships in 2-12 days

0

38

Generac 0F2461

RETAINER BEARING

$13.99

$

Usually ships in 2-12 days

0

39

Generac 022145

WASHERFLAT 5/16-M8ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

40

Generac 022129

WASHER LOCKM8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

41

Generac 039287

SCREW HHC M8-1.25X 45 C8.8

Note: APPLY MEDIUM STRENGTH BLUETHREAD LOCKING FLUIDTO THREADS.

$

$

Not available

42

Generac 082774

KEY WOODRUFF 4X 19D
(Superseded to G082774)

$9.49

$

Usually ships in 2-12 days

0

43

Generac 0G0795

HOSE LOWER RADIATOR G2

$57.99

$

Usually ships in 2-12 days

0

44A

Generac 0G0816

HOSE UPPER RADIATOR G2

Note: USE WITH MANIFOLD 0G0707 IF YOU HAVE 0G8488 MANIFOLD THEN ORDER 0H1546 RAD HOSE

$101.99

$

Usually ships in 2-12 days

0

44B

Generac 0H1546

HOSE UPPER RADIATOR G2

Note: USE WITH MANIFOLD 0G8488 IF YOU HAVE 0G0707 MANIFOLD ORDER 0G0816 RAD HOSE

$50.99

$

In Stock, only 1 left!

0

45

Generac 049813

NUT HEX M6X 1.0 G8YELCHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

46

Generac 052644

SPACER .5X 1.5 X .2 5 STL/ZINC

$

$

Not available

47

Generac 0C8566

SCREW HHFCM6-10 X 2 0 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

48

Generac 0C2454

SCREW THF M6-1 X 16 N WAZ/JS

$3.49

$

Usually ships in 2-12 days

0

49

Generac 090283

CAP RADIATOR 13 PS I

$

$

Not available

51

Generac 0G4376

WASHER BELLEVILLE .75X.38X.028

$21.99

$

Usually ships in 2-12 days

0

52

Generac 0G56830ST03

TENS ION ER ARM SUPPORT BENT 90

$153.99

$

Usually ships in 2-12 days

0

53

Generac 039253

SCREW HHC M8-1.25 X 20 C8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

54

Generac 051698

SCREW HHC M8-1.25 X 75 C8.8

$

$

Not available

55

Generac 049820

NUT HEX LOCK M8-1.25 NY INS
(Superseded to G049820)

$0.99

$

In Stock, Qty 7

0

56

Generac 0G67930ST03

BRACKET TENSIONERSPRING

$54.99

$

Usually ships in 2-12 days

0

57

Generac 099502

CLAMP HOSE #24 B1.06-2.00

$

$

Not available

58

Generac 0C8165

NUT HEX LOCK 5/16-24 NY INS

$0.99

$

Usually ships in 2-12 days

0

59

Generac 029032

HOSE 9/32 ID(36' LG)
(Superseded to G029032)

$6.49

$

Usually ships in 2-12 days

0

60

Generac 0G3762

CAC504WX152H X 5 0D 2 .4 L G2

$701.99

$

Usually ships in 2-12 days

0

61

Generac 0G1285C

CLAMP CNSTTENSON 1.75-2.625

$9.99

$

Usually ships in 2-12 days

0

62

Generac 071296A

HOSE 2"IDX 3.0"LG

$61.99

$

Usually ships in 2-12 days

0

63

Generac 0G3985

TUBECAC N G2 TURBO

$77.99

$

Usually ships in 2-12 days

0

64

Generac 0G3989

TUBECAC OUT G2 TURBO

$187.99

$

Usually ships in 2-12 days

0

65

Generac 0C2454B

SCREW THF M6-1 X 30 N WA DELTA

$2.99

$

Usually ships in 2-12 days

0

66

Generac 0G9332A

OIL LINE REMOTE ENG/COOLER

$318.99

$

Usually ships in 2-12 days

0

67

Generac 0C4975

ADAPTOR 1/2 NPT X 37JIC 3/4-16

$8.99

$

Usually ships in 2-12 days

0

68

Generac 0G3990

COOLER OIL 2 4 L G2 TURBO

$344.99

$

Usually ships in 2-12 days

0

69

Generac 0C4973D

ADAPTE R90D J IC 3 7 1 /2NPT X 3/4

$18.99

$

Usually ships in 2-12 days

0

70

Generac 076749

TANK COOLANT RECOVERY
(Superseded to G076749)

$39.99

$

Usually ships in 2-12 days

0

71

Generac 080713

BRACKET COOLANT TANK

$

$

Not available

72

Generac 0G3986

MOUNT OIL COOLER 2 .4 LG 2

$30.99

$

Usually ships in 2-12 days

0

73

Generac 0G9910

ADAPTE R45D J IC 3 7 1 /2NPT X 3/4

$31.99

$

Usually ships in 2-12 days

0

74

0G9331

MOUNT REMOTE OIL FILTER2.4G2

$

$

Not available

75

Generac 0G9333

NIPPLE-OL FILTER

Note: APPLY LOCTITE #266TO I/N 75 PRIORTO ASSEMBLY.

$24.99

$

Usually ships in 2-12 days

0

76

0A4531 0244

FILTER1.5L/24LG2 OIL

$

$

Not available

77

Generac 043107

SCREW HHC M8-1.25 X 25 C8.8

$

$

Not available

78

0G9595

BRACKET RESERVOIR MOUNTING

$

$

Not available

79

Generac 0A5259A

HOSE 2"IDX 3.0"LG

$35.99

$

Usually ships in 2-12 days

0

80

Generac 055934M

CLAMP STLVNL.75 X .343 Z

$3.49

$

Usually ships in 2-12 days

0

81

Generac 029333A

TIE WRAP UL 7.4' X .19' BLK (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

82

Generac 0H1851

ASSYPCB LCLSENSOR (USEWITH I/N16, P/N QH18270NLY)

$113.99

$

Usually ships in 2-12 days

0
