QT08046KNSN - Generac 80kW Home Standby Generator (SN: 4823853 - 4823853) (2007) Engine Common Parts L/H Side 4.6L G3 Qt (0G1275) Parts Diagram

80kW Home Standby Generator

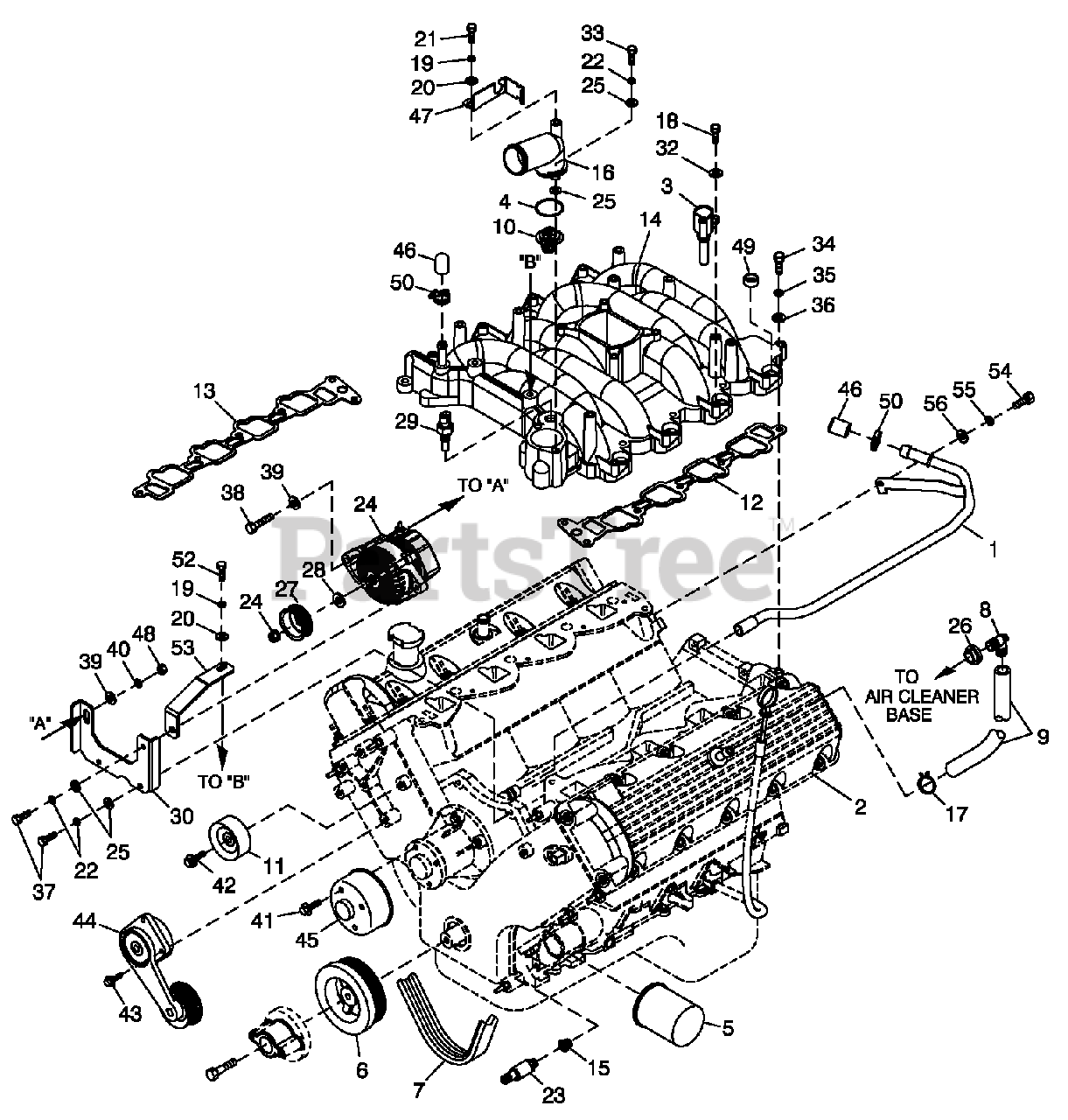

Engine Common Parts L/H Side 4.6L G3 Qt (0G1275) Parts Diagram

  • Title

1

Generac 0F9077

TUBE COOLANT 4.6L

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available

2

Generac 0F7316

ENGINE 4.6L G3 (RWD)

Note: PART OF ENGINE MAKE P/N 0G1274.. FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

3

Generac 0F2842

IGNITION COIL ASSY

$246.99

$

Usually ships in 2-12 days

0

4

Generac 0F2843

GASKET THERMOSTAT HOUSING G3

$27.99

$

Usually ships in 2-12 days

0

5

Generac 0D5419

OIL FILTER

Note: INCLUDED IN KITS: 0D345400PM

$49.99

$

Usually ships in 2-12 days

0

6

0G1815

REWORK HARMONIC BALANCER

$

$

Not available

7

Generac 0D3488R

BELT SERPENTINE 54.72"

$180.99

$

Usually ships in 2-12 days

0

8

Generac 057795A

BARBED EL 90 3/4 PLASTIC

$6.99

$

Usually ships in 2-12 days

0

9

Generac 59057

HOSE 3/4 ID SAE-30R2 (21"LG)

$

$

Not available

10

Generac 0F2844

THERMOSTAT ASSY

Note: ORDER P/N 0J6240E

$

$

Not available

11

Generac 0F2847

PULLEY FAN BELT

$155.99

$

Usually ships in 2-12 days

0

12

Generac 0F2840

GASKET INTAKE MANIFOLD LEFT

Note: PART OF ENGINE MAKE P/N 0G1274.

$233.99

$

Usually ships in 2-12 days

0

13

Generac 0F2839

GASKET INTAKE MANIFOLD RIGHT

Note: PART OF ENGINE MAKE P/N 0G1274.. NO LONGER AVAILABLE. ORDER 0J6240C

$

$

Not available

14

Generac 0F8202

MANIFOLD INTAKE 4.6L G3 (RWD)

Note: PART OF ENGINE MAKE P/N 0G1274.. THIS INTAKE MANIFOLD ONLY USED ON THE FOLLOWING ENGINE: 0G1274 4.6L RWD G3 ENG

$700.99

$

Usually ships in 2-12 days

0

15

Generac 55476

BUSHING REDUCER 3/8 TO 1/8 GAL

$

$

Not available

16

Generac 0F2851

CONNECTION WATER OUTLET

$161.99

$

Usually ships in 2-12 days

0

17

Generac 048031P

CLAMP HOSE BAND .88"

$1.99

$

Usually ships in 2-12 days

0

18

Generac 55440

SCREW HHC M5-0.8 X 25 G8.8

$

$

Not available

19

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

20

Generac 22473

WASHER FLAT 1/4 ZINC

$

$

Not available

21

Generac 42568

SCREW HHC M6-1.0 X 20 G8.8

$

$

Not available

22

Generac 22129

WASHER LOCK M8-5/16

$

$

Not available

23

Generac 0F4612

SENDER OIL PRESSURE 1/8"NPT

$337.99

$

Usually ships in 2-12 days

0

24

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

$519.99

$

Usually ships in 2-12 days

0

25

Generac 22145

WASHER FLAT 5/16-M8 ZINC

$

$

Not available

26

Generac 57796

GROMMET

$

$

Not available

27

Generac 0F3216D

PULLEY 160 OD DC ALTERNATOR

Note: ORDER KIT P/N 0F3216DSRV

$54.99

$

Usually ships in 2-12 days

0

28

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

29

Generac 0E0502

TEMPERATURE SENDER, DELPHI

$53.99

$

Usually ships in 2-12 days

0

30

Generac 0F9016

BRACKET DC ALTERNATOR 4.6L

$87.99

$

Usually ships in 2-12 days

0

31

Generac 0G0612

HARN ENG 4.6L GAS H-100 CPL (NOT SHOWN)

$11113.99

$

Usually ships in 2-12 days

0

32

Generac 51713

WASHER FLAT M5

$

$

Not available

33

Generac 42914

SCREW HHC M8-1.25 X 90 G8.8

$

$

Not available

34

Generac 51731

SCREW HHC M8-1.25 X 50 G8.8

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available

35

Generac 22129

WASHER LOCK M8-5/16

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available

36

Generac 22145

WASHER FLAT 5/16-M8 ZINC

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available

37

Generac 43107

SCREW HHC M8-1.25 X 25 G8.8

$

$

Not available

38

Generac 64416

SCREW HHC M10-1.5 X 45 G8.8 FT

$

$

Not available

39

Generac 22131

WASHER FLAT 3/8-M10 ZINC

$

$

Not available

40

Generac 46526

WASHER LOCK M10

$

$

Not available

41

Generac 0D8027

SCREW WP PULLEY M8-1.25 X 19

$4.99

$

Usually ships in 2-12 days

0

42

Generac 0D8025

BOLT HEX FL HD M8-1.25 X 28

$22.99

$

Usually ships in 2-12 days

0

43

Generac 0D8026

BOLT HEX FL HD M8-1.25 X 31

$42.99

$

Usually ships in 2-12 days

0

44

Generac 0D8030

TENSIONER, ENG. AUTOMATIC BELT

$376.99

$

Usually ships in 2-12 days

0

45

Generac 0D8029

PULLEY ENGINE WATER PUMP

$135.99

$

Usually ships in 2-12 days

0

46

Generac 77996

CAP ANTIFREEZE RUBBER

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available

47

Generac 0F2776A

BRACKET, SIGNAL CONDITIONER

$3.99

$

Usually ships in 2-12 days

0

48

Generac 45772

NUT HEX M10-1.5 G8 YEL CHR

$

$

Not available

49

Generac 0E0992A

PLUG EXPANSION 14 O.D.

Note: PART OF ENGINE MAKE P/N 0G1274.

$3.49

$

Usually ships in 2-12 days

0

50

Generac 57823

CLAMP HOSE #10 .56-1.06

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available

51

Generac 029333A

TIE WRAP UL 7.4"X .19" BLK (NOT SHOWN)

Note: I/N 51 IS FOR HOLDING SENSOR TO I/N 47.

$0.99

$

Usually ships in 2-12 days

0

52

Generac 47411

SCREW HHC M6-1.0 X 16 G8.8

$

$

Not available

53

Generac 0F9381

ALTERNATOR STRAP

$29.99

$

Usually ships in 2-12 days

0

54

Generac 39253

SCREW HHC M8-1.25 X 20 G8.8

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available

55

Generac 22129

WASHER LOCK M8-5/16

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available

56

Generac 22145

WASHER FLAT 5/16-M8 ZINC

Note: PART OF ENGINE MAKE P/N 0G1274.

$

$

Not available
