QT15068JNSYA - Generac 150kW Home Standby Generator (SN: 5633707 - 5651379) (2009) CPL C5 H Cntrl Lmd CB 6.8L 150KW A Volt Ind. (0G2041D) Parts Diagram

150kW Home Standby Generator

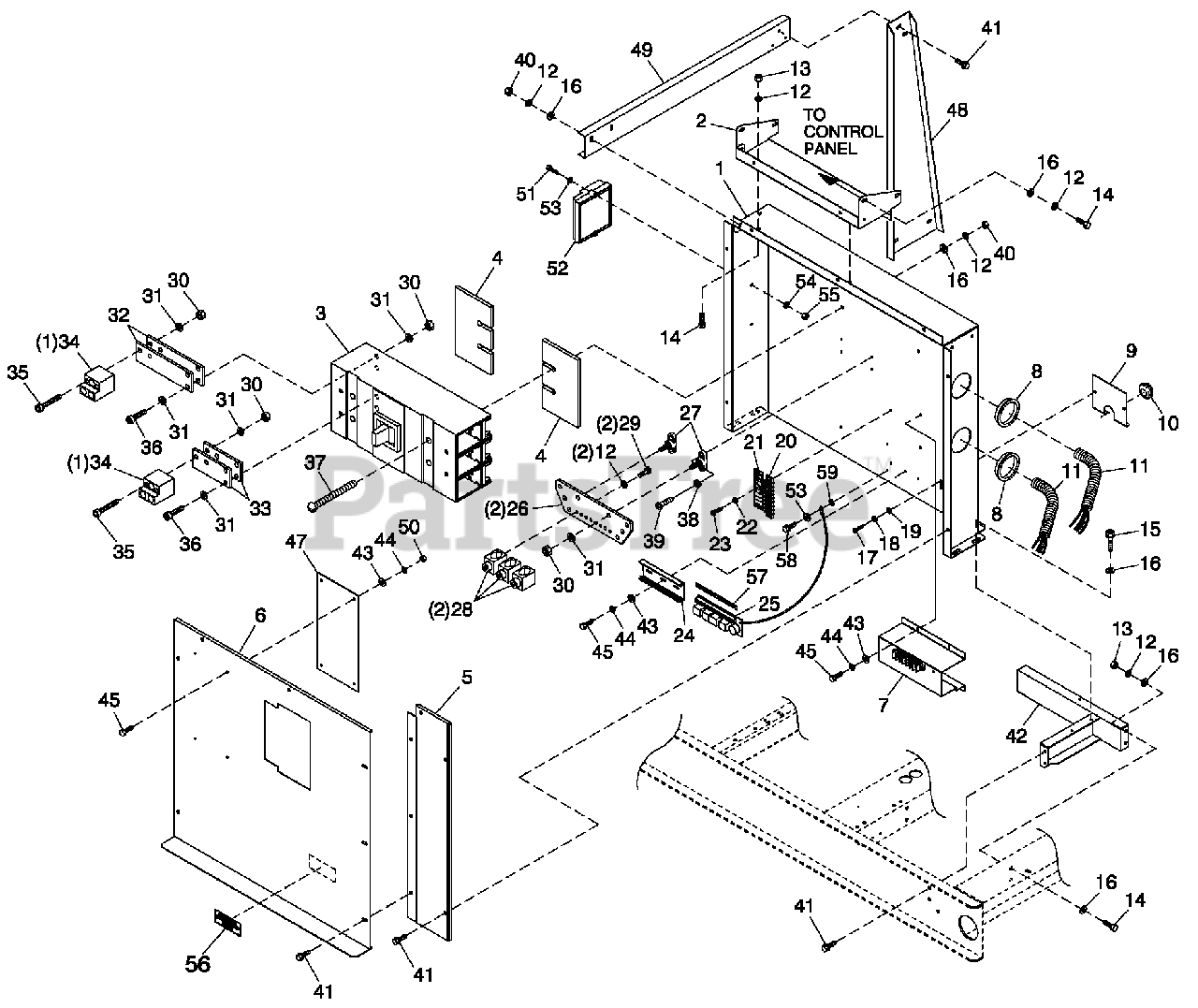

CPL C5 H Cntrl Lmd CB 6.8L 150KW A Volt Ind. (0G2041D) Parts Diagram

  • Title

1

0F6479

PANEL CB CONNECTION

$

$

Not available

2

0F6481

MOUNT CONTROL PANEL CPL

$

$

Not available

3

Generac 0D5582

CB 0700A3P 600VSLMD6 LL

$

$

Not available

4

Generac 0E2962

INSULATOR (NOMEX)

$2.49

$

Usually ships in 2-12 days

0

5

0F6505

COVER FIXED LMD CB

$

$

Not available

6

Generac 0F6506

COVER SERVICE LMD CB

$

$

Not available

7

Generac 0F4677

ASSY PCB INTERFACE 1PH 240V

$155.99

$

Usually ships in 2-12 days

0

8

Generac 023484N

BUSHING SNAP SB-2.5-31

$2.99

$

Usually ships in 2-12 days

0

9

Generac 0F6156

PLATE WIRE SNGL GALV

$2.99

$

Usually ships in 2-12 days

0

10

Generac 081008

GROMMET 1 .2 5X .2 5X .7 5

$

$

Not available

11

Generac 077043J

CONDUIT FLEX 2.0" ID (36" LG)

$

$

Not available

12

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

13

Generac 049813

NUT HEXM6X1.0G 8YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

14

Generac 047411

SCREW HHC M6-1.0X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

15

Generac 0D6029

SCREW HHTT M6-1.0X16ZYC

$18.99

$

Usually ships in 2-12 days

0

16

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

17

Generac 0C2266

SCREW PHTT M5-0.8 X 16 ZYC

$0.99

$

Usually ships in 2-12 days

0

18

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

19

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

20

Generac 057701

BLOCK TERM 20A 8 X 6 X1100V

$

$

Not available

21

Generac 0F3618

DECAL CPL CUST CONN H CTRL

$25.99

$

Usually ships in 2-12 days

0

22

Generac 022155

WASHER LOCK #6

$

$

Not available

23

Generac 0C2428

SCREW PHTT #6-32 X 1/2 ZYC

$0.99

$

Usually ships in 2-12 days

0

24

Generac 0C9764

RAIL SNAPTRACK PCB HOLDER BULK

$0.99

$

In Stock, Qty 6

0

25

Generac 0G6962B

ASSY RELAY PCB 12VDC

$357.99

$

Usually ships in 2-12 days

0

26

Generac 0D6682

BUBAR NEUTRAL BLOCK (520/MAR)

Note: SUPPLIED IN ASM. KIT 0G0790.

$53.99

$

Usually ships in 2-12 days

0

27

Generac 057073

JUNCTION BLOCK 3/8-16

$

$

Not available

28

Generac 0A7822

LUG SLDLSS 600/250-1/0 X 1/4-28

Note: SUPPLIED IN ASM. KIT 0G0790.

$46.99

$

Usually ships in 2-12 days

0

29

Generac 0A8261

SCREW HHC 1/4-28 X 5 /8 .625TH

Note: SUPPLIED IN ASM. KIT 0G0790.

$0.99

$

Usually ships in 2-12 days

0

30

Generac 022241

NUT HEX 3/8-16 STEEL

$

$

Not available

31

Generac 022237

WASHER LOCK 3/8

$

$

Not available

32

0F6507

BUSBAR 1 /4X 2 LMD L1

$

$

Not available

33

0F6507A

BUSBAR 1 /4X 2 LMD L2

$

$

Not available

34

Generac 0C4112B

LUG SIEMENS LMD/LDTA3K500

Note: SUPPLIED WITH BREAKER (0D5582)

$80.99

$

Usually ships in 2-12 days

0

35

0D6585

SCREW SHC 3/8-16 X 3.0 BLK OX

$

$

Not available

36

Generac 023645

SCREW SHC 3/8-16 X 1.25 G8.8 Z

$

$

Not available

37

024196

SCREW RHM 1/4-20X3-1/2

$

$

Not available

38

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

39

Generac 0C2266

SCREW PHTT M5-0.8 X 16 ZYC

$0.99

$

Usually ships in 2-12 days

0

40

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

41

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

42

0F6640

CHAN ASSY CB SUPPORT

$

$

Not available

43

Generac 043180

WASHER FLAT M4

$

$

Not available

44

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

45

Generac 0C3990

SCREW PHTT M4-0.7 X 10 ZYC

$0.99

$

Usually ships in 2-12 days

0

47

Generac 0F8926

INSUL CB COVER

$

$

Not available

48

0F8862

CHANNEL SUPPORT

$

$

Not available

49

0F8863

CHANNEL BRACE

$

$

Not available

50

Generac 051715

NUT HEX M4-0.7 G8YEL CHR
(Superseded to G051715)

$9.49

$

Usually ships in 2-12 days

0

51

036943

SCREW PPHM #10/32X2

$

$

Not available

52

CTRL IGN MODULE

Note: SUPPLIED WITH BREAKER (0D5582)

$

$

Not available

53

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

54

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

55

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

56

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0

57

Generac 0F8565

DECAL H-100 RB3 CUST CONN

$1.99

$

Usually ships in 2-12 days

0

58

Generac 045764

SCREW HHTT M4-0.7X8ZP
(Superseded to G045764)

$0.99

$

In Stock, only 2 left!

0

59

Generac 023762

WASHER SHAKEPROOF EXT #10 STL

$

$

Not available
