QT24KA501 - Exmark 50" Quest Zero-Turn Mower, 24hp Kawasaki (SN: 920000 - 999999) (2011) Controls and Fuel Tank Assembly Parts Diagram

50" Quest Zero-Turn Mower, 24hp Kawasaki

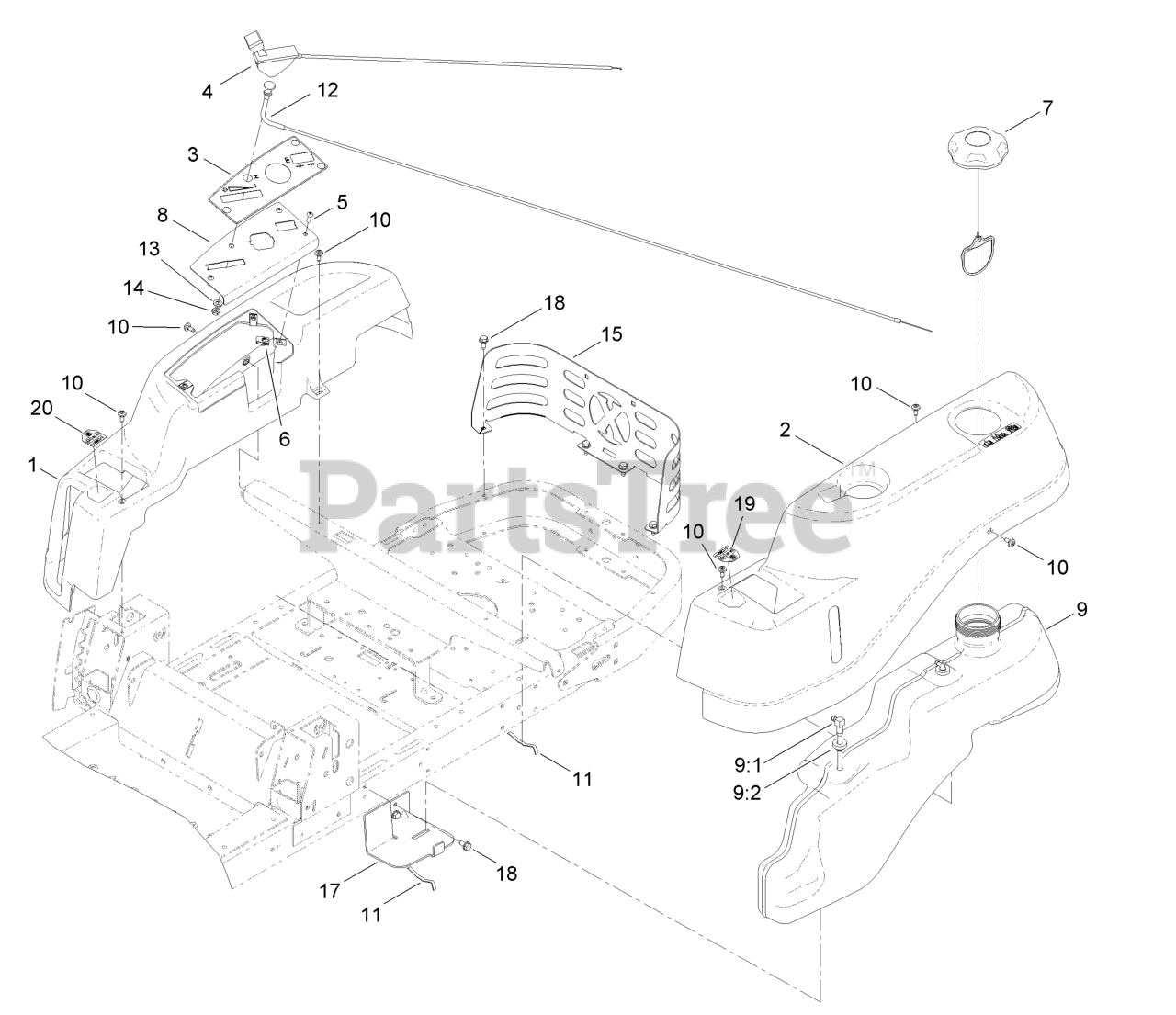

Controls and Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 119-8963

133-1156
(Superseded to 133-1156)

$

$

Not available

2

Exmark 119-8962

133-1157
(Superseded to 133-1157)

$104.99

$

Usually ships in 3-6 days

0

3

Exmark 116-4220

DECAL-PANEL, CONTROL

$

$

Not available

4

Exmark 120-2214

CABLE-THROTTLE

$46.99

$

In Stock, only 2 left!

0

5

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

7

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$29.99

$

In Stock, only 4 left!

0

8

Exmark 119-3377-03

PLATE-CONTROL

$13.99

$

In Stock, only 1 left!

0

9

Exmark 119-3324

FUEL TANK ASM

$352.99

$

In Stock, only 2 left!

0

9:1

Exmark 115-2564

121-0793
(Superseded to 121-0793)

$12.99

$

In Stock, only 2 left!

0

9:2

Exmark 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

10

Exmark 112-4004

120-7950
(Superseded to 120-7950)

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 609830

SPRING

$5.99

$

In Stock, only 2 left!

0

12

Exmark 112-9753

CABLE-CHOKE

$49.99

$

In Stock, Qty 5

0

13

Exmark 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

14

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

15

Exmark 119-8967-03

GUARD-REAR

$

$

Not available

17

Exmark 119-3395-03

SUPPORT-TANK, FRONT

$18.99

$

Usually ships in 3-6 days

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 11

0

19

Exmark 119-8814

DECAL-LEVER, CONTROL (LH)

$2.99

$

In Stock, only 2 left!

0

20

Exmark 119-8815

DECAL-LEVER, CONTROL (RH)

$2.99

$

In Stock, only 2 left!

0
