QT24KA501 - Exmark 50" Quest Zero-Turn Mower, 24hp Kawasaki (SN: 920000 - 999999) (2011) Motion Control Assembly Parts Diagram

50" Quest Zero-Turn Mower, 24hp Kawasaki

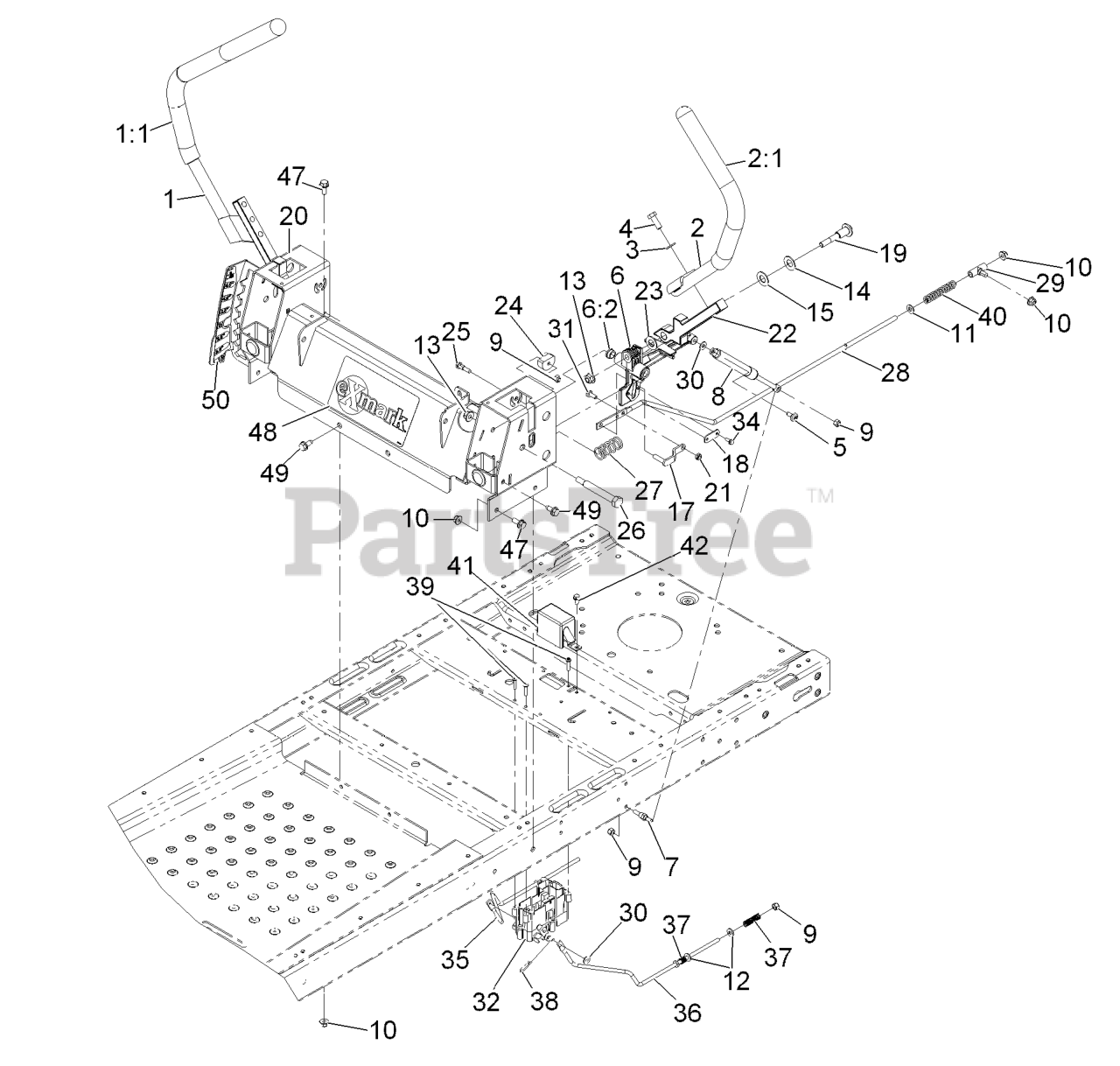

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 119-3486

RH HANDLE ASM

$72.99

$

Usually ships in 3-6 days

0

1:1

Exmark 108-6187

GRIP

$23.99

$

In Stock, only 1 left!

0

2

Exmark 119-3485

LH HANDLE ASM

$72.99

$

In Stock, only 1 left!

0

2:1

Exmark 108-6187

GRIP

$23.99

$

In Stock, only 1 left!

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Exmark 112-4004

120-7950
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 20+

0

6

Exmark 119-3470

ACTUATOR ARM ASM

$26.99

$

In Stock, Qty 5

0

6:2

Exmark 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

7

Exmark 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, only 1 left!

0

8

Exmark 103-2913

109-2339
(Superseded to 109-2339)

$82.99

$

In Stock, Qty 20+

0

9

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

15

Exmark 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Exmark 119-3303

121-1753
(Superseded to 121-1753)

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 119-8948

PLATE-STOP, HYDRO

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 117-1198

BOLT-PIVOT

$2.99

$

In Stock, Qty 20+

0

20

Exmark 119-3387-03

125-5474-03
(Superseded to 125-5474-03)

$215.99

$

Usually ships in 3-6 days

0

21

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Exmark 115-5098-05

133-9299-05
(Superseded to 133-9299-05)

$47.99

$

In Stock, Qty 10

0

23

Exmark 120-2273

WASHER-NYLON

$2.99

$

In Stock, Qty 7

0

24

Exmark 115-9604

ECCENTRIC

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 119-3301

BOLT-PIVOT, ECCENTRIC

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 3 left!

0

27

Exmark 119-8876

SPRING-RETURN

$2.99

$

In Stock, only 1 left!

0

28

Exmark 117-5388

ROD-HYDRO
(Superseded to 138-7217)

$12.99

$

In Stock, only 2 left!

0

29

Exmark 119-8842

MOUNT-ROD, HYDRO
(Superseded to 138-7218)

$12.99

$

Usually ships in 3-6 days

0

30

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

31

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

32

Exmark 115-9660

121-3017
(Superseded to 121-3017)

$182.99

$

In Stock, Qty 18

0

34

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 117-5384

121-2976
(Superseded to 121-2976)

$9.49

$

In Stock, Qty 9

0

36

Exmark 117-1278

121-2977
(Superseded to 121-2977)

$9.49

$

In Stock, Qty 14

0

37

Exmark 117-1169

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 19

0

38

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

39

Exmark 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 5

0

40

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 19

0

41

Exmark 119-8859

COVER-BRAKE

$7.99

$

In Stock, only 2 left!

0

42

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

47

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

48

Exmark 116-4219

DECAL

$15.99

$

In Stock, only 1 left!

0

49

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

50

Exmark 119-8870

DECAL-HOC

$5.49

$

Usually ships in 3-6 days
