QTE452CEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 316000000 - 399999999) (2016) Controls and Fuel Tank Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

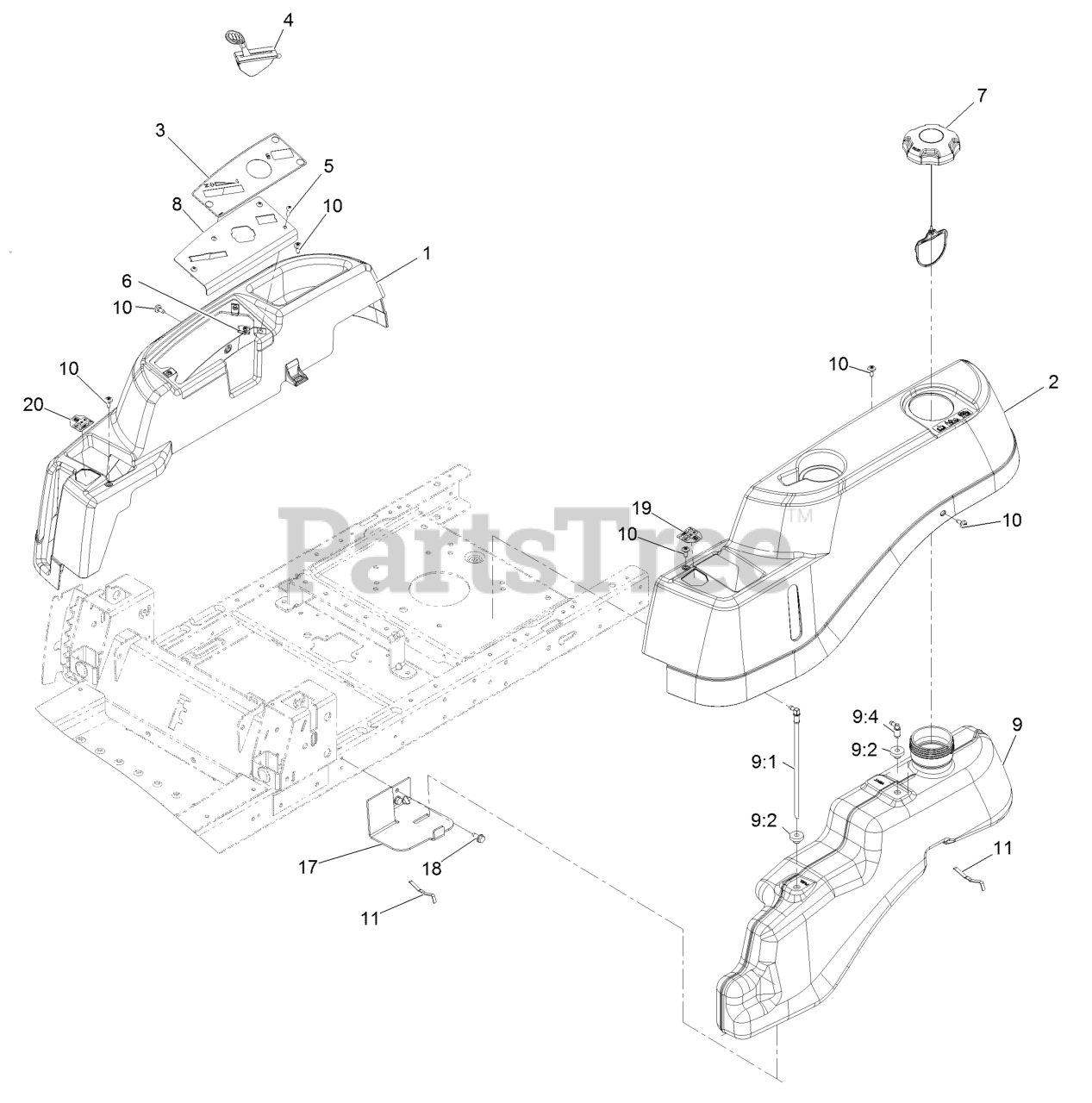

Controls and Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 119-8961

POD-RH

$72.99

$

Usually ships in 3-6 days

0

2

Exmark 119-8960

POD-LH

$72.99

$

Usually ships in 3-6 days

0

3

Exmark 121-0771

DECAL-PANEL, CONTROL

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 121-0767

CABLE-THROTTLE AND CHOKE

$54.99

$

Usually ships in 3-6 days

0

5

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

7

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$26.99

$

In Stock, Qty 8

0

8

Exmark 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 119-3324

FUEL TANK ASM

$313.99

$

In Stock, only 2 left!

0

9:1

Exmark 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

In Stock, Qty 10

0

9:2

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9:4

Exmark 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, Qty 9

0

10

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

11

Exmark 609830

SPRING

$5.49

$

In Stock, Qty 10

0

17

Exmark 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

19

Exmark 119-8814

DECAL-LEVER, CONTROL (LH)

$2.99

$

In Stock, only 1 left!

0

20

Exmark 119-8815

DECAL-LEVER, CONTROL (RH)

$2.99

$

In Stock, only 2 left!

0
