QTE452CEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 316000000 - 399999999) (2016) Fuse and Wire Harness Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

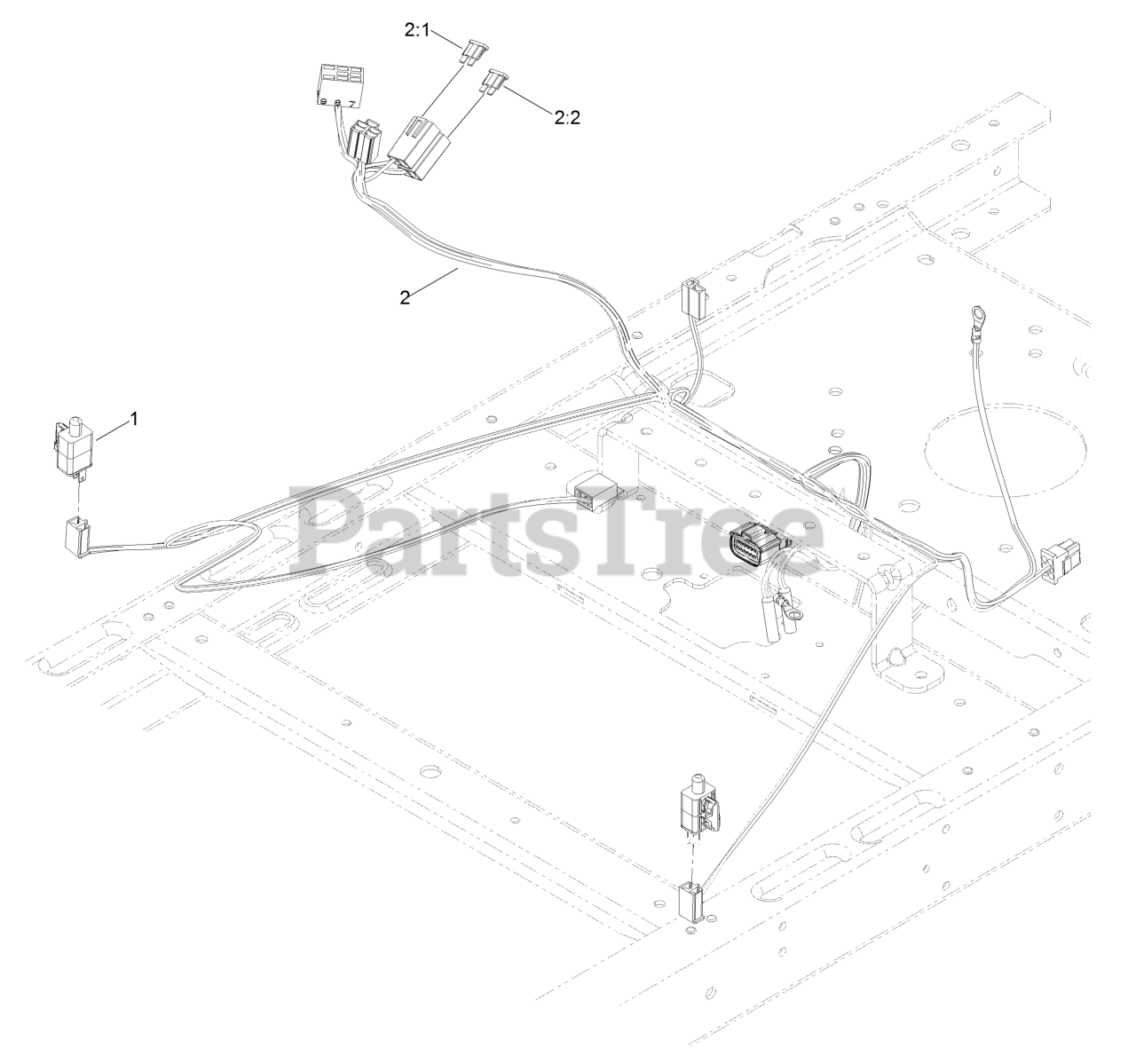

Fuse and Wire Harness Assembly Parts Diagram

  • Title

1

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

2

Exmark 132-0924

136-7482
(Superseded to 136-7482)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$156.99

$

In Stock, Qty 6

0

2:1

Exmark 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 14

0

2:2

Exmark 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 13

0
