QTE452CEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 400000000 - 402082299) (2017) Crankcase Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

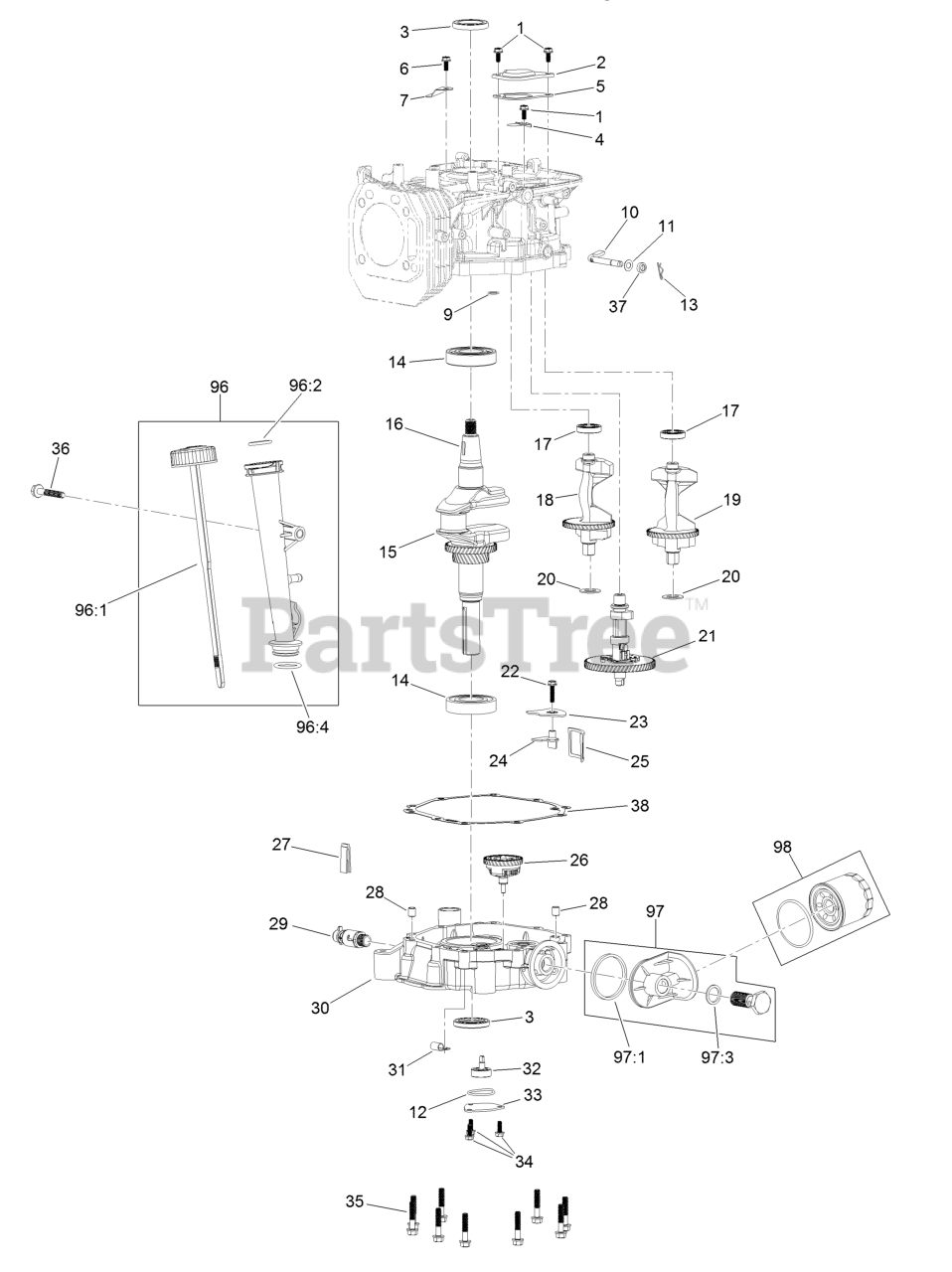

Crankcase Assembly Parts Diagram

  • Title

1

Exmark 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 120-4265

PLATE-BREATHER

$5.49

$

In Stock, only 1 left!

0

3

Exmark 120-4267

SEAL-OIL

$20.99

$

In Stock, only 1 left!

0

4

Exmark 120-4263

VALVE-REED

$9.99

$

In Stock, only 1 left!

0

5

Exmark 120-4264

GASKET-BREATHER

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 120-4234

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

7

Exmark 120-4268

RETAINER

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 120-4262

O-RING

$1.49

$

In Stock, Qty 5

0

10

Exmark 120-4382

SHAFT-GOVERNOR
(Superseded to 136-7887)

$9.99

$

Usually ships in 3-6 days

0

11

Exmark 120-4258

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 120-4343

SEAL-PUMP, OIL

$2.99

$

In Stock, only 2 left!

0

13

Exmark 120-4256

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 120-4261

BEARING-BALL

$23.99

$

Usually ships in 3-6 days

0

15

Exmark 120-4293

CRANKSHAFT

$190.99

$

Usually ships in 3-6 days

0

16

Exmark 120-4320

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 120-4266

BEARING-BALL

$23.99

$

Usually ships in 3-6 days

0

18

Exmark 127-9179

SHAFT-BALANCE, R

$63.99

$

Usually ships in 3-6 days

0

19

Exmark 127-9180

SHAFT-BALANCE, L

$63.99

$

In Stock, only 1 left!

0

20

Exmark 120-4295

WASHER

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 120-4297

CAMSHAFT

$95.99

$

In Stock, only 1 left!

0

22

Exmark 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

23

Exmark 120-4342

COVER-STRAINER, OIL

$13.99

$

Usually ships in 3-6 days

0

24

Exmark 120-4279

PLATE-BAFFLE, OIL

$7.99

$

Usually ships in 3-6 days

0

25

Exmark 120-4341

STRAINER-OIL

$7.99

$

Usually ships in 3-6 days

0

26

Exmark 120-4338

GEAR-GOVERNOR
(Superseded to 136-7834)

$11.99

$

Usually ships in 3-6 days

0

27

Exmark 120-4275

DEFLECTOR-OIL, RUBBER

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 120-4274

PIN-DOWEL

$1.49

$

In Stock, only 2 left!

0

29

Exmark 120-4321

VALVE-DRAIN, OIL

$19.99

$

In Stock, only 1 left!

0

30

Exmark 120-4327

COVER-CRANKCASE
(Superseded to 136-7828)

$143.99

$

Usually ships in 3-6 days

0

31

Exmark 127-9188

CLAMP-HOSE

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 120-4344

OIL PUMP ASM

$18.99

$

Usually ships in 3-6 days

0

33

Exmark 120-4270

COVER-PUMP, OIL

$6.49

$

Usually ships in 3-6 days

0

34

Exmark 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 120-4273

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 120-4284

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

37

Exmark 120-4257

SEAL-OIL

$5.49

$

Usually ships in 3-6 days

0

38

Exmark 120-4260

GASKET-CRANKCASE

$14.99

$

In Stock, only 1 left!

0

96

Exmark 120-4355

DIPSTICK AND TUBE KIT

$19.99

$

Usually ships in 3-6 days

0

96:1

Exmark 120-4350

DIPSTICK ASM

$11.99

$

Usually ships in 3-6 days

0

96:2

Exmark 120-4348

O-RING

$2.99

$

Usually ships in 3-6 days

0

96:4

Exmark 120-4282

O-RING

$2.99

$

Usually ships in 3-6 days

0

97

Exmark 120-4363

OIL ADAPTOR KIT

$67.99

$

Usually ships in 3-6 days

0

97:1

Exmark 120-4362

SEAL-ADAPTOR, OIL

$6.49

$

Usually ships in 3-6 days

0

97:3

Exmark 120-4360

WASHER-FILTER, OIL

$2.99

$

In Stock, Qty 5

0

98

Exmark 120-4276

126-5234
(Superseded to 126-5234)

$25.99

$

In Stock, Qty 11

0
