QTE452CEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 400000000 - 402082299) (2017) Fuel Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

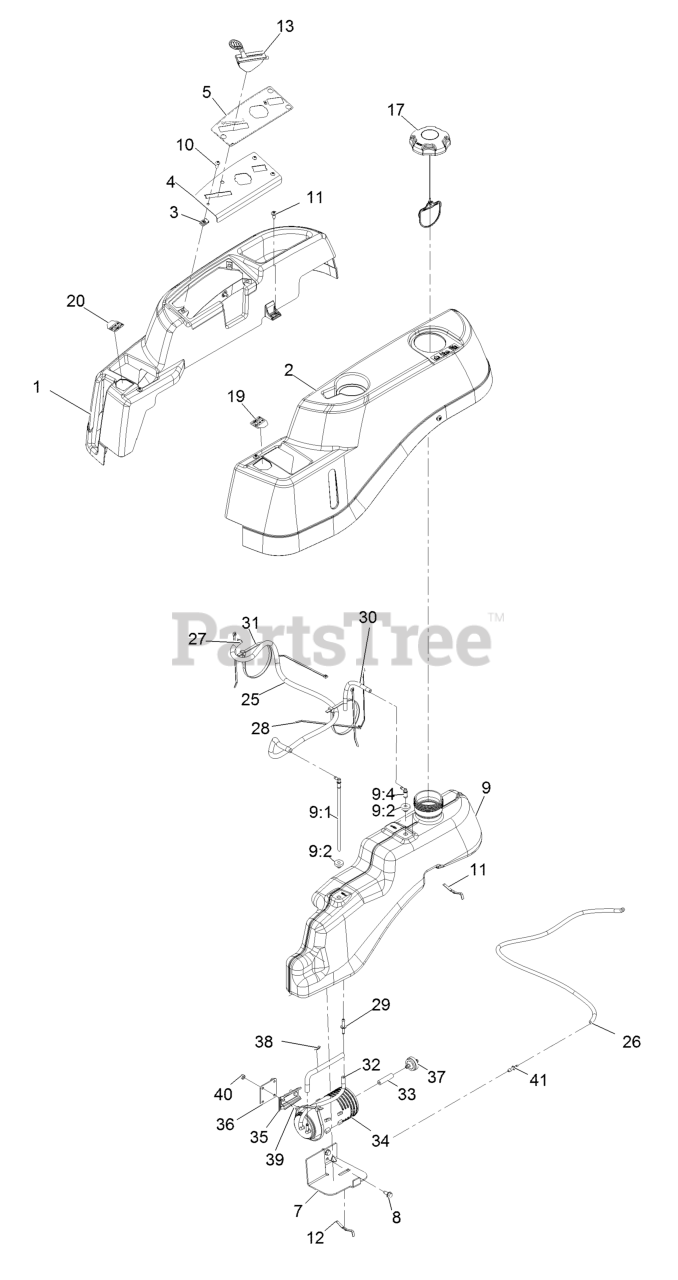

Fuel Assembly Parts Diagram

  • Title

1

Exmark 133-1154

POD-RH

$72.99

$

Usually ships in 3-6 days

0

2

Exmark 133-1155

POD-LH

$72.99

$

Usually ships in 3-6 days

0

3

Exmark 10706-9

Clip

$2.99

$

In Stock, Qty 20+

0

4

Exmark 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

5

Exmark 121-0771

DECAL-PANEL, CONTROL

$11.99

$

Usually ships in 3-6 days

0

7

Exmark 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

9

Exmark 119-3324

FUEL TANK ASM

$313.99

$

In Stock, only 2 left!

0

9:1

Exmark 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

In Stock, Qty 9

0

9:2

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9:4

Exmark 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, Qty 9

0

10

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12

Exmark 609830

SPRING

$5.49

$

In Stock, Qty 10

0

13

Exmark 121-0767

CABLE-THROTTLE AND CHOKE

$54.99

$

Usually ships in 3-6 days

0

17

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$26.99

$

In Stock, Qty 9

0

19

Exmark 135-0752

DECAL-CONTROL LEVER LH

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 135-0753

DECAL-CONROL LEVER RH

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0307

HOSE-FUEL

$20.99

$

In Stock, only 2 left!

0

26

Exmark 132-6854

HOSE-FUEL

$18.99

$

Usually ships in 3-6 days

0

27

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

28

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

29

Exmark 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, Qty 6

0

30

Exmark 110-1876

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

31

Exmark 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 1-213003

1-213131
(Superseded to 1-213131)

$

$

Not available

33

Exmark 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

34

Exmark 117-1221

CANISTER-CARBON, 800CC

$73.99

$

In Stock, only 2 left!

0

35

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

36

Exmark 119-8992-03

PLATE-ADAPTER

$9.49

$

Usually ships in 3-6 days

0

37

Exmark 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, only 3 left!

0

38

Exmark 120-2038

CARTRIDGE-VALVE, CHECK

$44.99

$

Usually ships in 3-6 days

0

39

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

41

Exmark 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0
