QTE651KA421 - Exmark 42" Quest E-Series Zero-Turn Mower, Kawasaki FR651V (SN: 314000000 - 314999999) (2014) Main Frame And Front Axle Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kawasaki FR651V

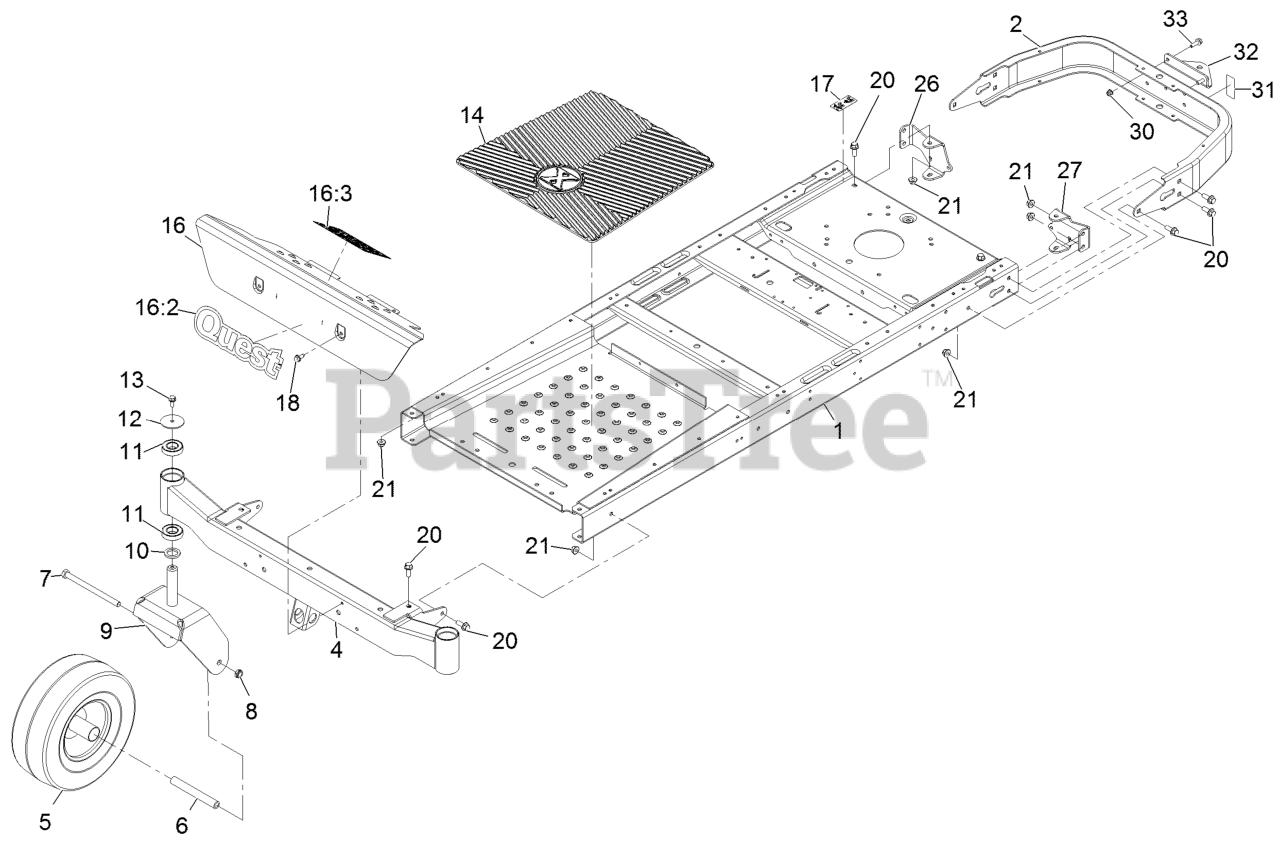

Main Frame And Front Axle Assembly Parts Diagram

  • Title

1

Exmark 121-2970-01

FRAME

$464.99

$

Usually ships in 3-6 days

0

2

Exmark 110-1920-01

BUMPER-REAR

$120.99

$

Usually ships in 3-6 days

0

4

Exmark 120-5516-01

AXLE-FRONT

$310.99

$

Usually ships in 3-6 days

0

5

Exmark 130-0736

CASTER WHEEL ASM

$87.99

$

In Stock, Qty 18

0

6

Exmark 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 20+

0

7

Exmark 325-22

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 17

0

9

Exmark 120-2266-01

FORK-CASTER

$88.99

$

Usually ships in 3-6 days

0

10

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 5

0

11

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Exmark 119-8915

WASHER

$2.99

$

In Stock, Qty 5

0

13

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

14

Exmark 120-5457

MAT-FLOOR

$90.99

$

In Stock, only 1 left!

0

16

Exmark 125-0071

FOOTREST ASM
(Superseded to 132-0889)

$157.99

$

Usually ships in 3-6 days

0

16:2

Exmark 116-4218

DECAL

$15.99

$

In Stock, only 1 left!

0

16:3

Exmark 120-2239

132-0869
(Superseded to 132-0869)

$9.49

$

Usually ships in 3-6 days

0

17

Exmark 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 17

0

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 121-0737-01

MOUNT-HYDRO, REAR (RH)

$17.99

$

Usually ships in 3-6 days

0

27

Exmark 121-0738-01

MOUNT-HYDRO, REAR (LH)

$17.99

$

Usually ships in 3-6 days

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 109-7076

DECAL

$8.49

$

Usually ships in 3-6 days

0

32

Exmark 117-1232-03

BRACKET-HITCH

$28.99

$

In Stock, only 1 left!

0

33

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0
