QTE691KA501 - Exmark 50" Quest E-Series Zero-Turn Mower, Kawasaki FR691V (SN: 313000000 - 313999999) (2013) Main Frame and Front Axle Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Kawasaki FR691V

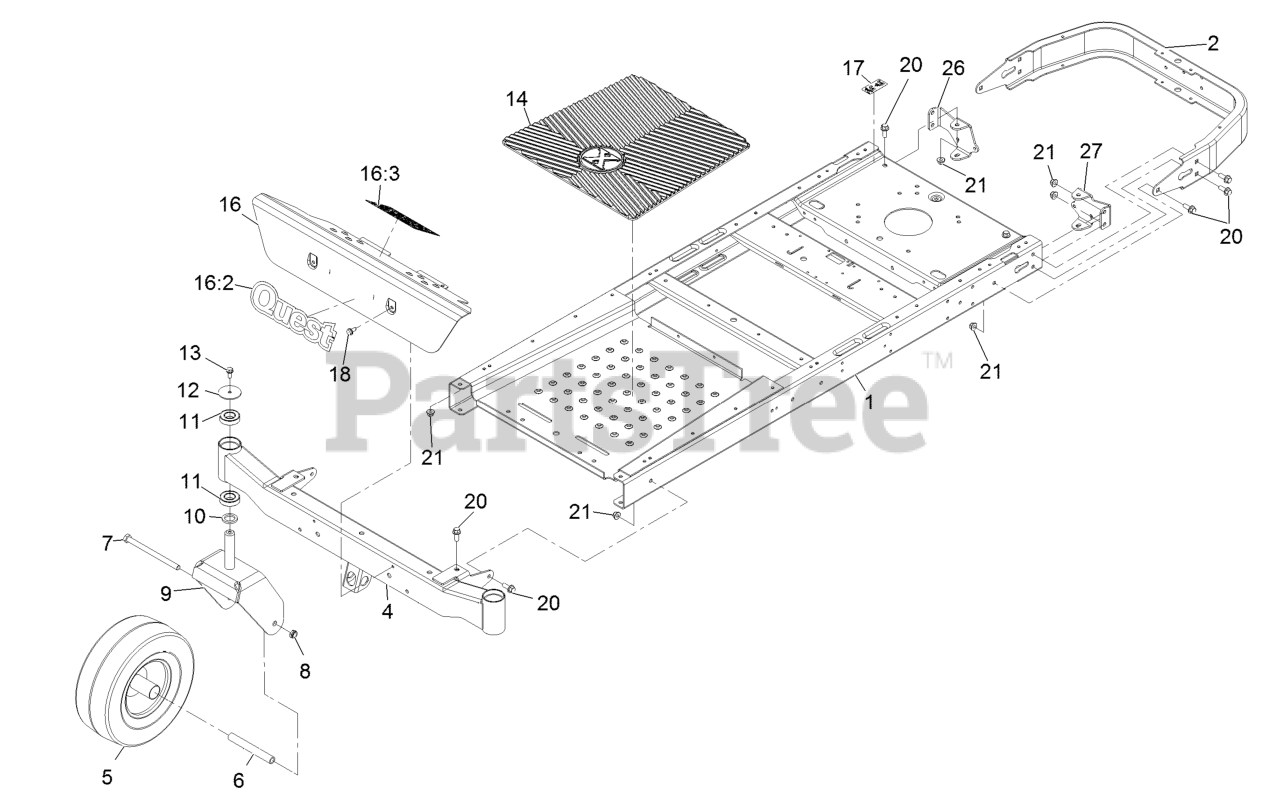

Main Frame and Front Axle Assembly Parts Diagram

  • Title

1

Exmark 120-7963-01

FRAME

$

$

Not available

2

Exmark 117-7415-01

BUMPER-REAR (WIDE)

$144.99

$

Usually ships in 3-6 days

0

4

Exmark 120-5513-01

AXLE-FRONT, WIDE
(Superseded to 121-5683-01)

$400.99

$

Usually ships in 3-6 days

0

5

Exmark 119-3473

13 INCH WHEEL AND TIRE AS

$124.99

$

In Stock, Qty 11

0

6

Exmark 119-3475

SPANNER

$12.99

$

In Stock, Qty 20+

0

7

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Exmark 119-3349-01

FORK-CASTER

$176.99

$

In Stock, only 4 left!

0

10

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

11

Exmark 109-3678

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

12

Exmark 119-8915

WASHER

$3.49

$

In Stock, only 2 left!

0

13

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

14

Exmark 120-5456

MAT-FLOOR
(Superseded to 126-6502)

$103.99

$

Usually ships in 3-6 days

0

16

Exmark 125-0073

FOOTREST SERVICE ASM

$178.99

$

Usually ships in 3-6 days

0

16:2

Exmark 116-4218

DECAL

$17.99

$

Usually ships in 3-6 days

0

16:3

Exmark 120-2239

132-0869
(Superseded to 132-0869)

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 121-0737-01

MOUNT-HYDRO, REAR (RH)

$18.99

$

Usually ships in 3-6 days

0

27

Exmark 121-0738-01

MOUNT-HYDRO, REAR (LH)

$18.99

$

Usually ships in 3-6 days

0
