QTE691KA501 - Exmark 50" Quest E-Series Zero-Turn Mower, Kawasaki FR691V (SN: 314000000 - 314999999) (2014) 50 Inch Deck Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Kawasaki FR691V

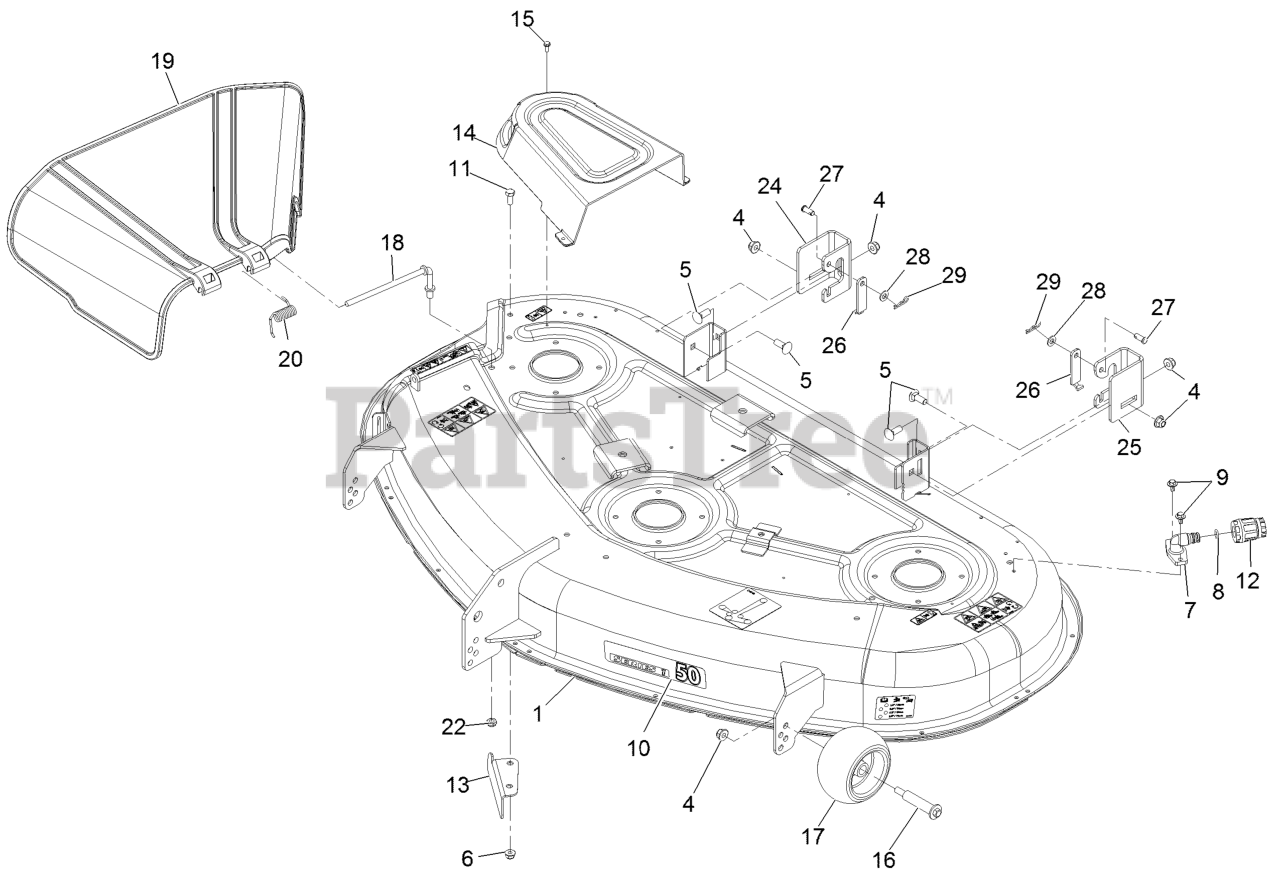

50 Inch Deck Assembly Parts Diagram

  • Title

1

Exmark 119-8841

50 INCH DECK AND DECAL AS

$1402.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 6

0

8

Exmark 46-6290

O-RING

$2.99

$

In Stock, only 2 left!

0

9

Exmark 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

10

Exmark 126-1768

DECAL-SERIES 1 - 50

$

$

Not available

11

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Exmark 95-3270

CONNECTOR-HOSE

$26.99

$

In Stock, Qty 7

0

13

Exmark 112-3983-03

BAFFLE-CUTOFF

$28.99

$

In Stock, only 2 left!

0

14

Exmark 108-7890

COVER-BELT

$23.99

$

In Stock, Qty 11

0

15

Exmark 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 9

0

16

Exmark 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

17

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

18

Exmark 112-3950

ROD-PIVOT

$21.99

$

In Stock, only 2 left!

0

19

Exmark 108-7895

DEFLECTOR

$74.99

$

In Stock, Qty 7

0

20

Exmark 110-6694

SPRING-TORSION

$6.99

$

In Stock, Qty 5

0

22

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 130-6888

BRACKET - HANGER, RR

$55.99

$

In Stock, only 3 left!

0

25

Exmark 130-6890

BRACKET - HANGER, LR

$55.99

$

In Stock, only 2 left!

0

26

Exmark 130-6891

LINK - DECK RETENTION

$10.99

$

In Stock, only 4 left!

0

27

Exmark 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 10

0

28

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0
