QTE708GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Fuel Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 708

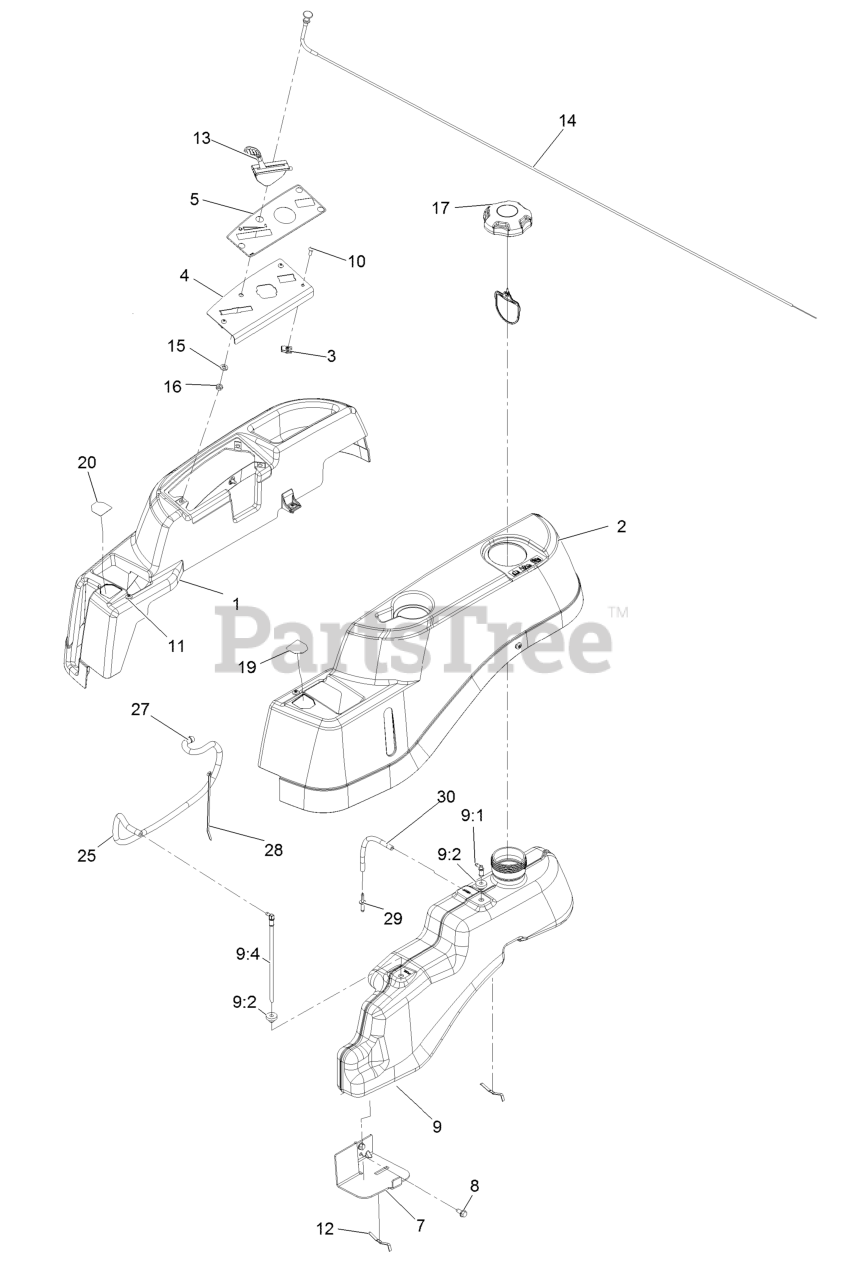

Fuel Assembly Parts Diagram

  • Title

1

Exmark 133-1154

POD-RH

$72.99

$

Usually ships in 3-6 days

0

2

Exmark 133-1155

POD-LH

$72.99

$

Usually ships in 3-6 days

0

3

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

4

Exmark 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

5

Exmark 121-0772

DECAL-PANEL, CONTROL

$11.99

$

In Stock, only 4 left!

0

7

Exmark 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

9

Exmark 119-3324

FUEL TANK ASM

$313.99

$

In Stock, only 2 left!

0

9:1

Exmark 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

In Stock, Qty 9

0

9:2

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9:4

Exmark 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, Qty 9

0

10

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12

Exmark 609830

SPRING

$5.49

$

In Stock, Qty 10

0

13

Exmark 121-0769

CABLE-THROTTLE

$52.99

$

In Stock, Qty 7

0

14

Exmark 112-9753

CABLE-CHOKE

$44.99

$

In Stock, Qty 20+

0

15

Exmark 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

16

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

17

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$26.99

$

In Stock, Qty 9

0

19

Exmark 135-0752

DECAL-CONTROL LEVER LH

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 135-0753

DECAL-CONROL LEVER RH

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0281

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

27

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

28

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

29

Exmark 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, Qty 6

0

30

Exmark 110-1876

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0
