QTE708GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Traction Drive Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 708

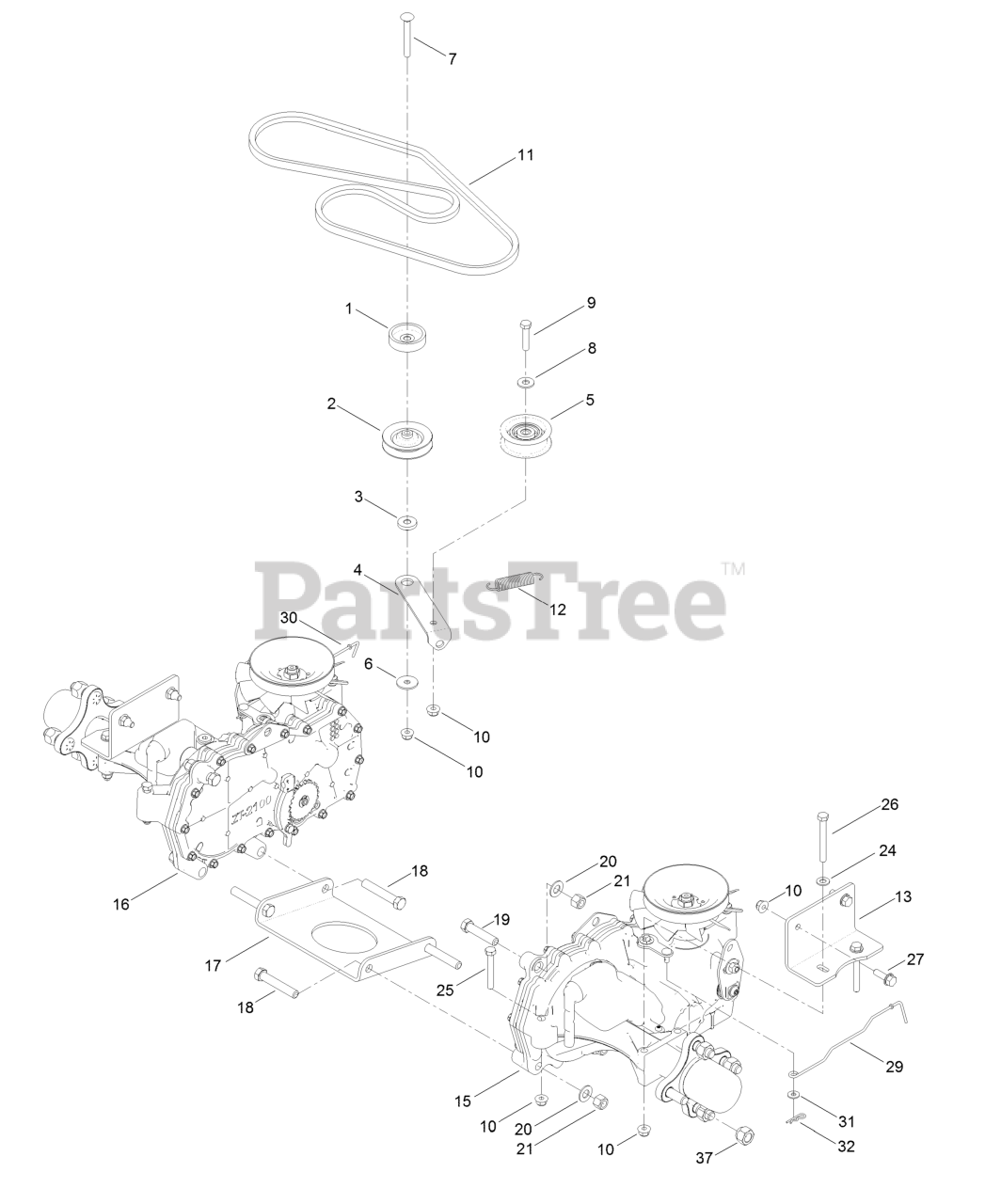

Traction Drive Assembly Parts Diagram

  • Title

1

Exmark 119-3353

SPACER

$11.99

$

In Stock, Qty 12

0

2

Exmark 119-8822

PULLEY-IDLER

$26.99

$

In Stock, Qty 20+

0

3

Exmark 119-3327

SPACER-ARM, IDLER

$2.99

$

In Stock, Qty 20+

0

4

Exmark 119-3326

ARM-IDLER
(Superseded to 138-7276)

$6.49

$

In Stock, Qty 10

0

5

Exmark 106-2176

PULLEY-IDLER

$33.99

$

In Stock, Qty 20+

0

6

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3230-8

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

8

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 130-6975

V-BELT
(Superseded to 130-6975-SL)

$36.99

$

Usually ships in 3-6 days

0

12

Exmark 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 20+

0

13

Exmark 117-7264-03

MOUNT-HYDRO

$9.49

$

Usually ships in 3-6 days

0

15

Exmark 119-3330

LH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

16

Exmark 119-3331

RH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

17

Exmark 119-3339-03

PLATE-CROSS, HYDRO

$23.99

$

Usually ships in 3-6 days

0

18

Exmark 324-10

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Exmark 324-8

SCREW-HH

$5.99

$

In Stock, Qty 7

0

20

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

21

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

25

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

26

Exmark 322-13

SCREW-HH

$3.49

$

In Stock, Qty 17

0

27

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

29

Exmark 131-0900

ROD-BYPASS, LH
(Superseded to 138-7243)

$7.99

$

Usually ships in 3-6 days

0

30

Exmark 130-7049

ROD-BYPASS, RH
(Superseded to 138-7245)

$7.99

$

Usually ships in 3-6 days

0

31

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

37

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0
