QTE735KC421 - Exmark 42" Quest E-Series Zero-Turn Mower, Kohler KT735 (SN: 314000000 - 314999999) (2014) Seat Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kohler KT735

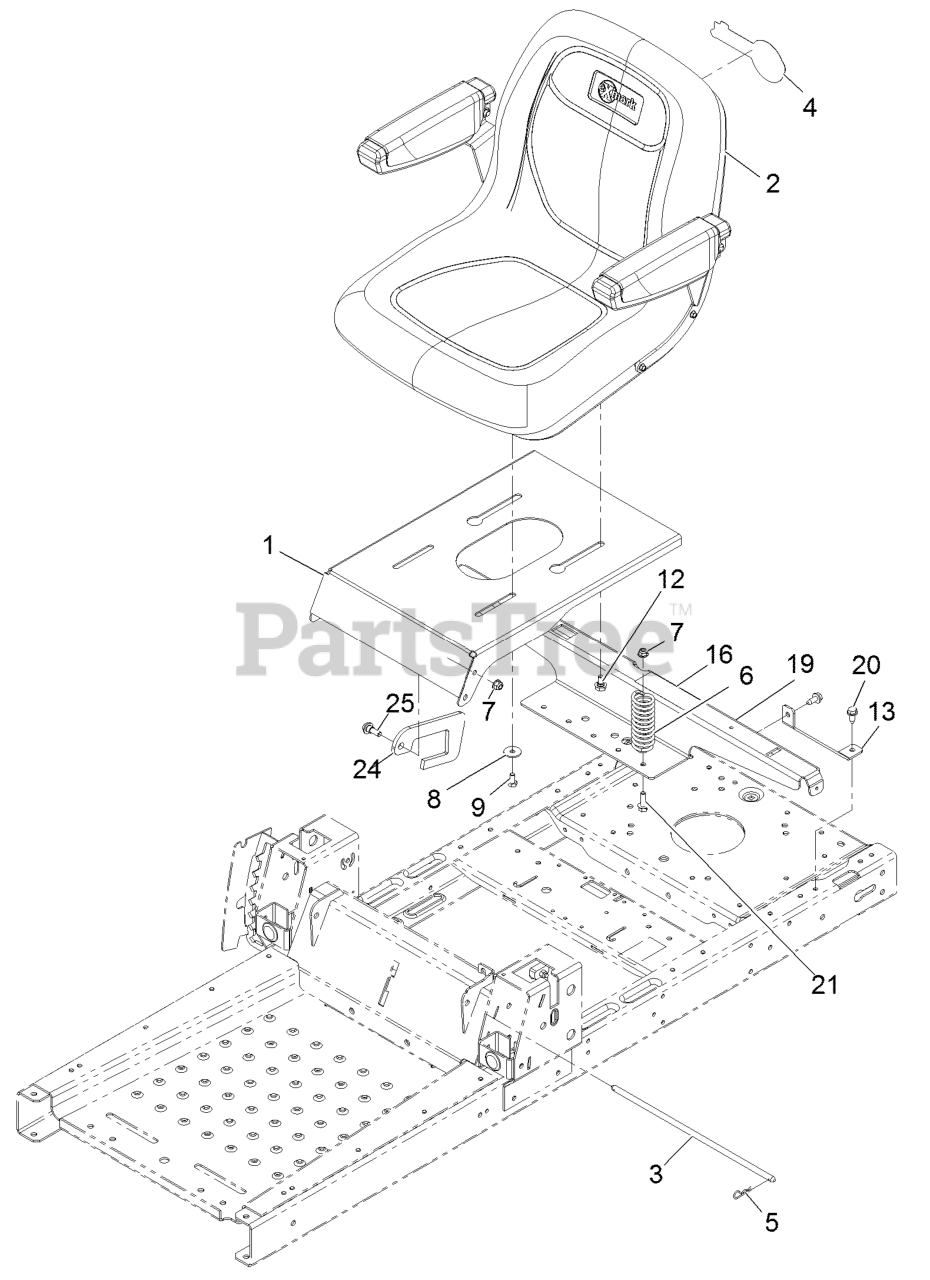

Seat Assembly Parts Diagram

  • Title

1

Exmark 119-3391-03

133-4469
(Superseded to 133-4469)

$103.99

$

Usually ships in 3-6 days

0

2

Exmark 119-8957

SEAT-18 IN W/ARM

$817.99

$

Usually ships in 3-6 days

0

3

Exmark 119-3433

ROD-PIVOT, NARROW

$13.99

$

Usually ships in 3-6 days

0

4

Exmark 120-5464

DECAL

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

6

Exmark 92-7054

SPRING-COMPRESSION

$22.99

$

In Stock, Qty 7

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

9

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Exmark 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, Qty 20+

0

13

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

16

Exmark 106-8717

DECAL-SERVICE, CE

$8.49

$

Usually ships in 3-6 days

0

19

Exmark 121-0732-03

SUPPORT-POD
(Superseded to 131-1040-03)

$108.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

24

Exmark 120-5512

STOP-SEAT

$

$

Not available

25

Exmark 116-2670

SCREW-SHOULDER

$8.49

$

In Stock, Qty 12

0
