QTE735KC502 - Exmark 50" Quest E-Series Zero-Turn Mower, Kohler KT735 (SN: 314000000 - 314999999) (2014) 50 Inch Deck Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Kohler KT735

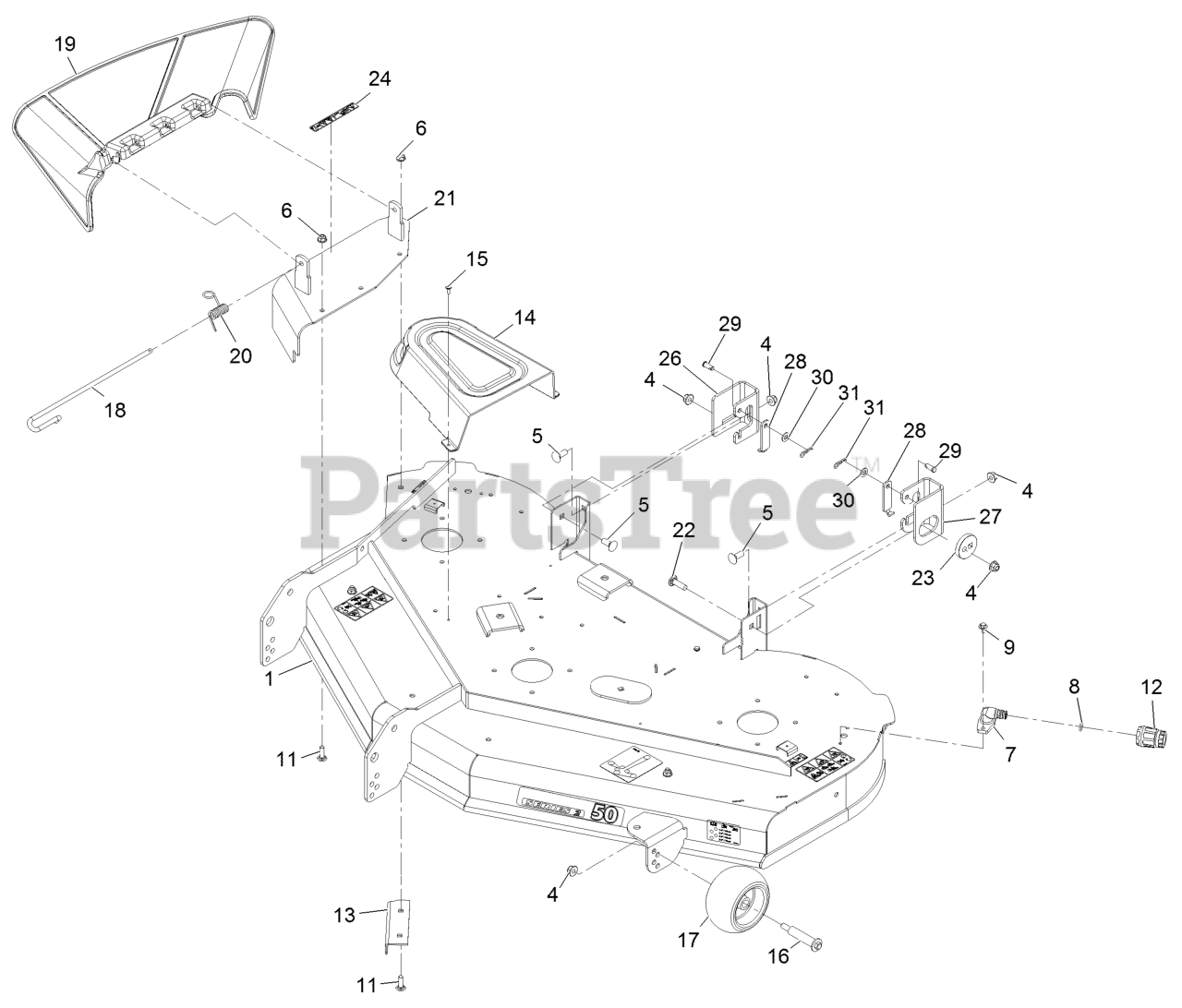

50 Inch Deck Assembly Parts Diagram

  • Title

1

Exmark 121-2968

50" DECK AND DECAL ASM (E

$2908.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 20+

0

8

Exmark 46-6290

O-RING

$2.99

$

In Stock, Qty 13

0

9

Exmark 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

12

Exmark 95-3270

CONNECTOR-HOSE

$25.99

$

In Stock, Qty 19

0

13

Exmark 120-7951-03

BAFFLE-CUTOFF

$27.99

$

In Stock, only 2 left!

0

14

Exmark 108-7890

COVER-BELT

$22.99

$

In Stock, Qty 20+

0

15

Exmark 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

16

Exmark 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

17

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

18

Exmark 109-8854

PIN-CHUTE

$17.99

$

In Stock, Qty 17

0

19

Exmark 121-0739

DEFLECTOR-DISCHARGE

$68.99

$

In Stock, Qty 20+

0

20

Exmark 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 120-7925-01

COVER-DISCHARGE

$124.99

$

Usually ships in 3-6 days

0

22

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

23

Exmark 112-3980

ECCENTRIC

$8.49

$

In Stock, only 2 left!

0

24

Exmark 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 19

0

26

Exmark 130-6888

BRACKET - HANGER, RR

$55.99

$

In Stock, only 3 left!

0

27

Exmark 130-6889

BRACKET - HANGER, LR

$55.99

$

In Stock, only 2 left!

0

28

Exmark 130-6891

LINK - DECK RETENTION

$10.99

$

In Stock, only 2 left!

0

29

Exmark 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 9

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0
