QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 315000000 - 315999999) (2015) Fuse and Wire Harness Assembly Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

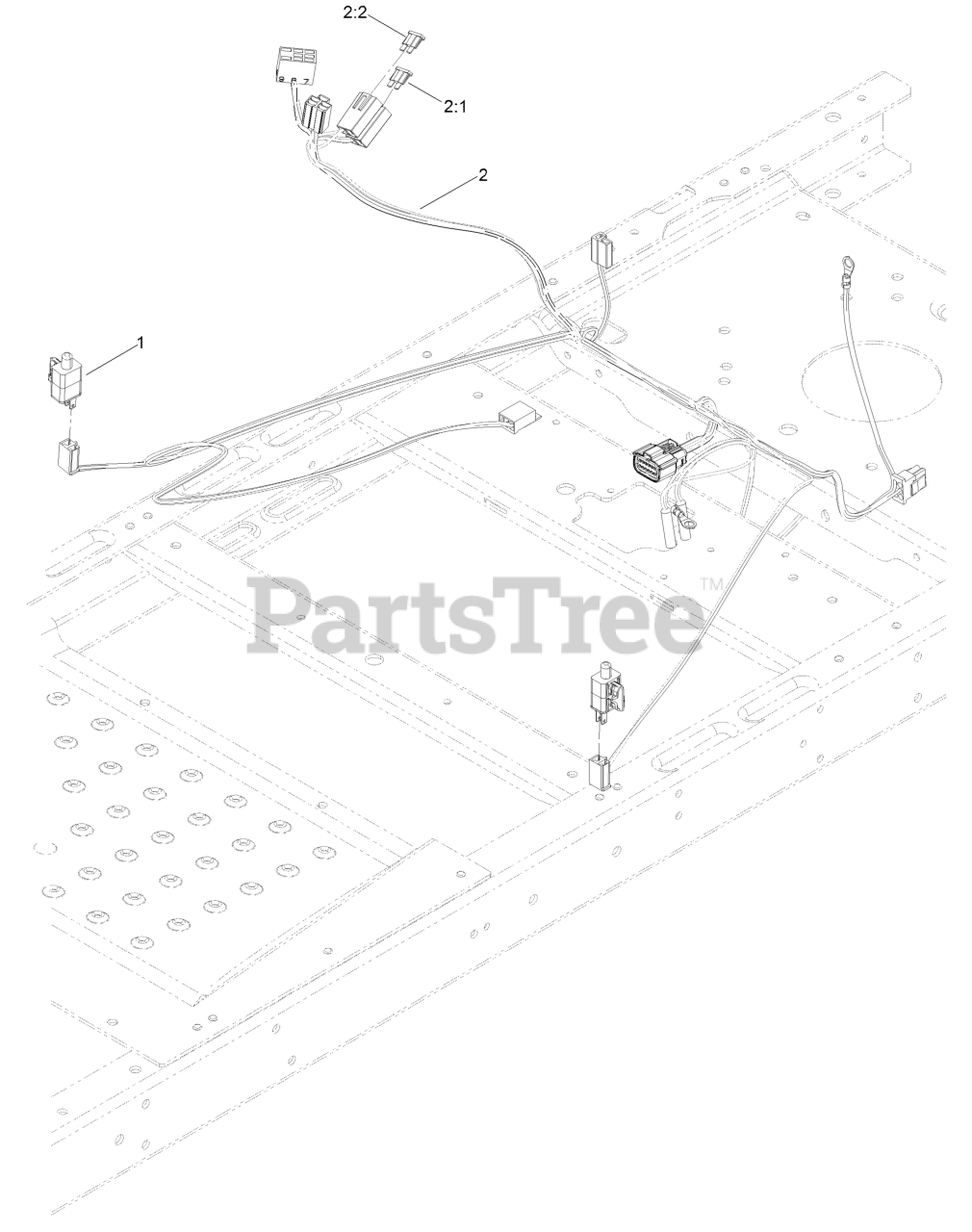

Fuse and Wire Harness Assembly Parts Diagram

  • Title

1

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

2

Exmark 130-7013

136-7482
(Superseded to 136-7482)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$142.99

$

In Stock, Qty 5

0

2:1

Exmark 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 10

0

2:2

Exmark 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 2 left!

0
