QTS691KA502 - Exmark 50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 312000000 - 312999999) (2012) 50 Inch Deck Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

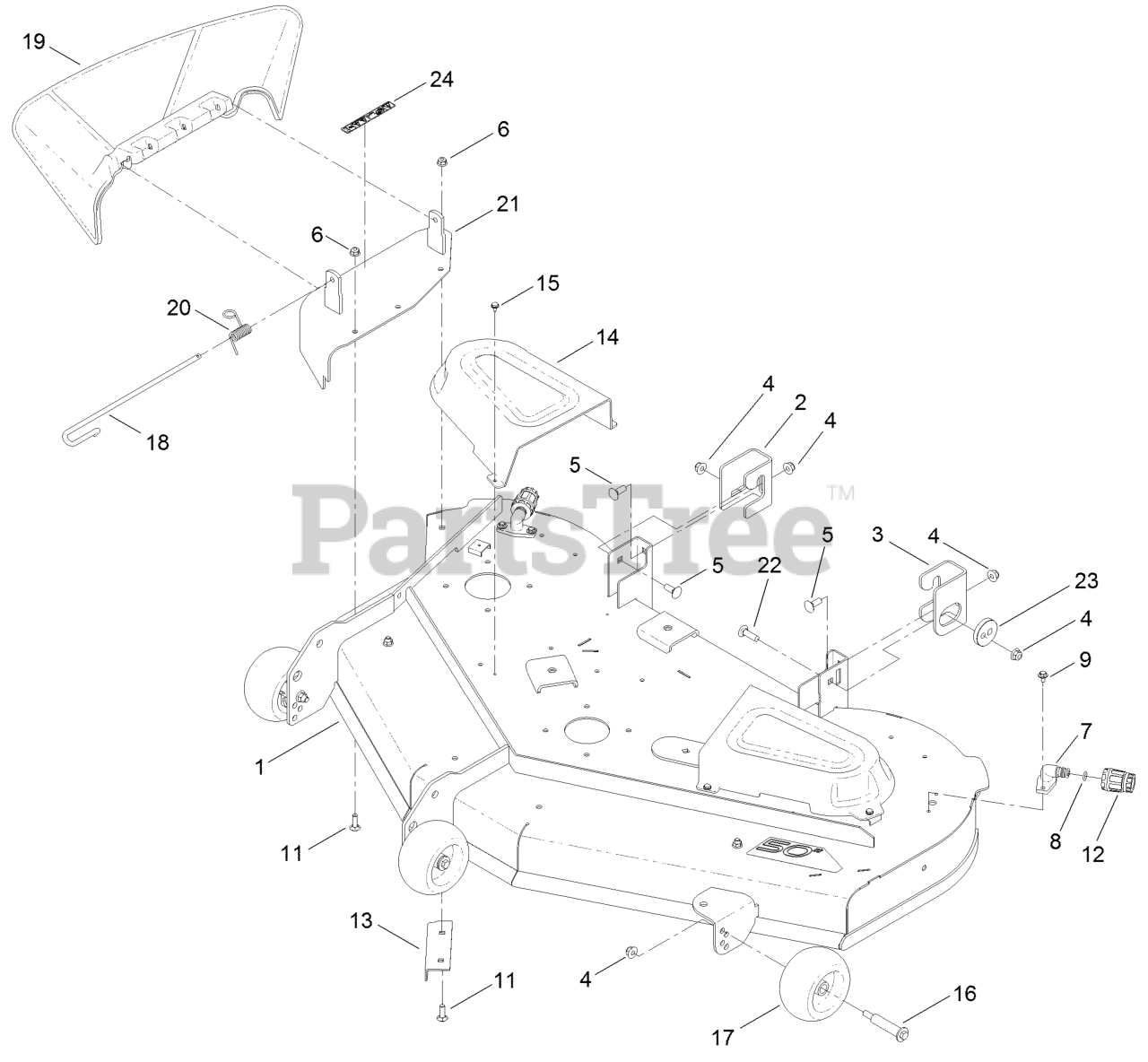

50 Inch Deck Assembly Parts Diagram

  • Title

1

Exmark 121-2968

50" DECK AND DECAL ASM (E

$2908.99

$

Usually ships in 3-6 days

0

2

Exmark 119-3494

131-4138
(Superseded to 131-4138)

$14.99

$

In Stock, Qty 20+

0

3

Exmark 121-0797

BRACKET-HANGER, LH

$28.99

$

In Stock, Qty 6

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 15

0

7

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 8

0

8

Exmark 46-6290

O-RING

$2.99

$

In Stock, only 2 left!

0

9

Exmark 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 3 left!

0

12

Exmark 95-3270

CONNECTOR-HOSE

$25.99

$

In Stock, Qty 10

0

13

Exmark 120-7951-03

BAFFLE-CUTOFF

$27.99

$

In Stock, only 2 left!

0

14

Exmark 108-7890

COVER-BELT

$22.99

$

In Stock, Qty 15

0

15

Exmark 32104-76

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

17

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

18

Exmark 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 4 left!

0

19

Exmark 121-0739

DEFLECTOR-DISCHARGE

$68.99

$

In Stock, Qty 17

0

20

Exmark 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

In Stock, only 2 left!

0

21

Exmark 120-7925-01

COVER-DISCHARGE

$124.99

$

Usually ships in 3-6 days

0

22

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 6

0

23

Exmark 112-3980

ECCENTRIC

$8.49

$

In Stock, Qty 9

0

24

Exmark 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 17

0
