QTS708GEM50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Caster, Wheel and Tire Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Exmark 708

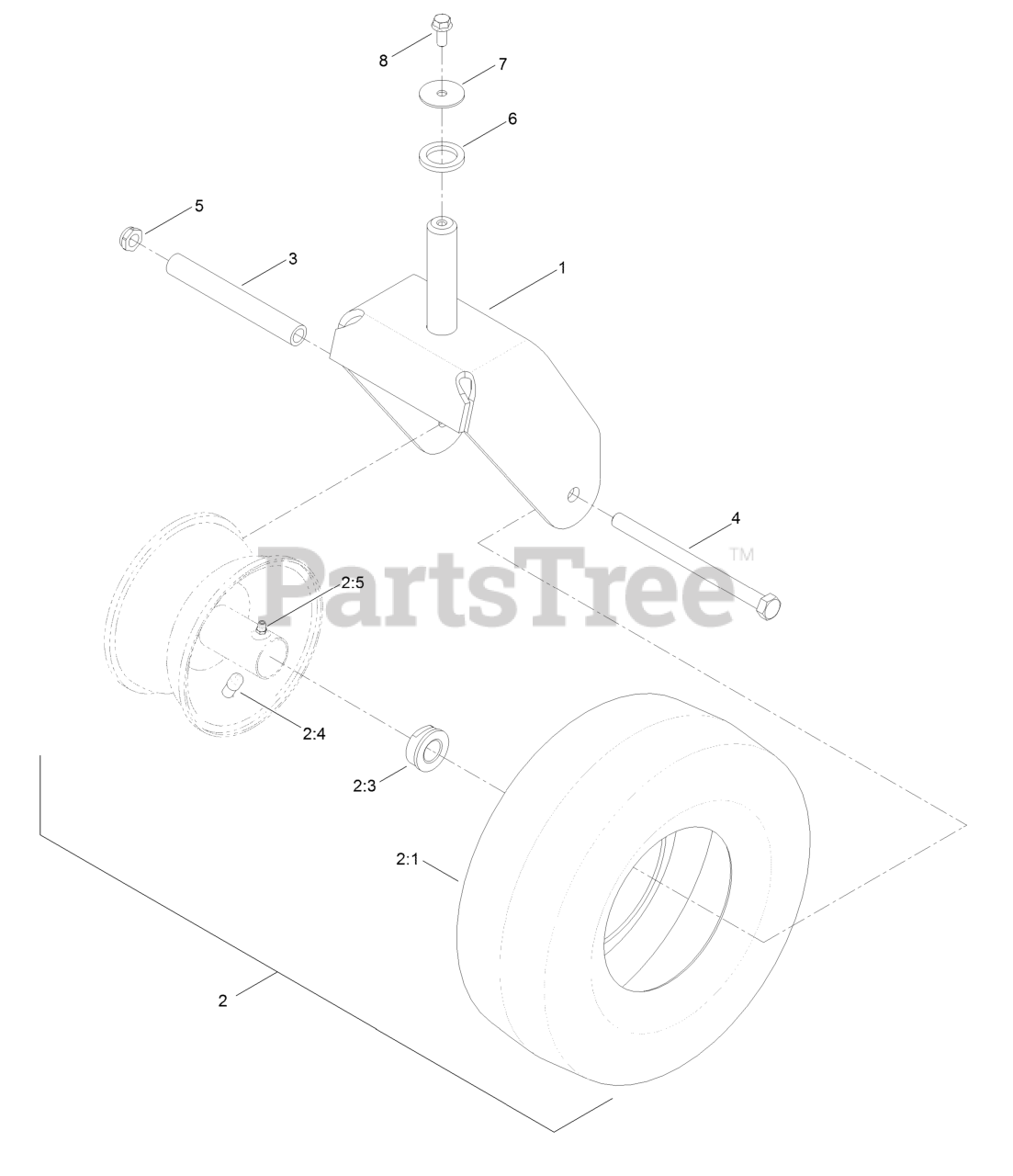

Caster, Wheel and Tire Assembly Parts Diagram

  • Title

1

Exmark 119-3349-01

FORK-CASTER

$182.99

$

In Stock, only 2 left!

0

2

Exmark 119-3473

13 INCH WHEEL AND TIRE AS

$125.99

$

In Stock, only 1 left!

0

2:1

Exmark 119-3471

TIRE-13 INCH

$108.99

$

In Stock, only 2 left!

0

2:3

Exmark 114-1640

BUSHING-FLANGE

$13.99

$

In Stock, Qty 20+

0

2:4

Exmark 232-27

Stem-Valve

$

$

Not available

2:5

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2:99

Exmark 232-46

TUBE-INNER

Note: Not illustrated

$47.99

$

Usually ships in 3-6 days

0

3

Exmark 119-3475

SPANNER

$12.99

$

In Stock, only 2 left!

0

4

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 11

0

5

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

6

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3256-68

WASHER-FLAT

$3.49

$

In Stock, only 4 left!

0

8

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0
