QTS708GEM50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Main Frame Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Exmark 708

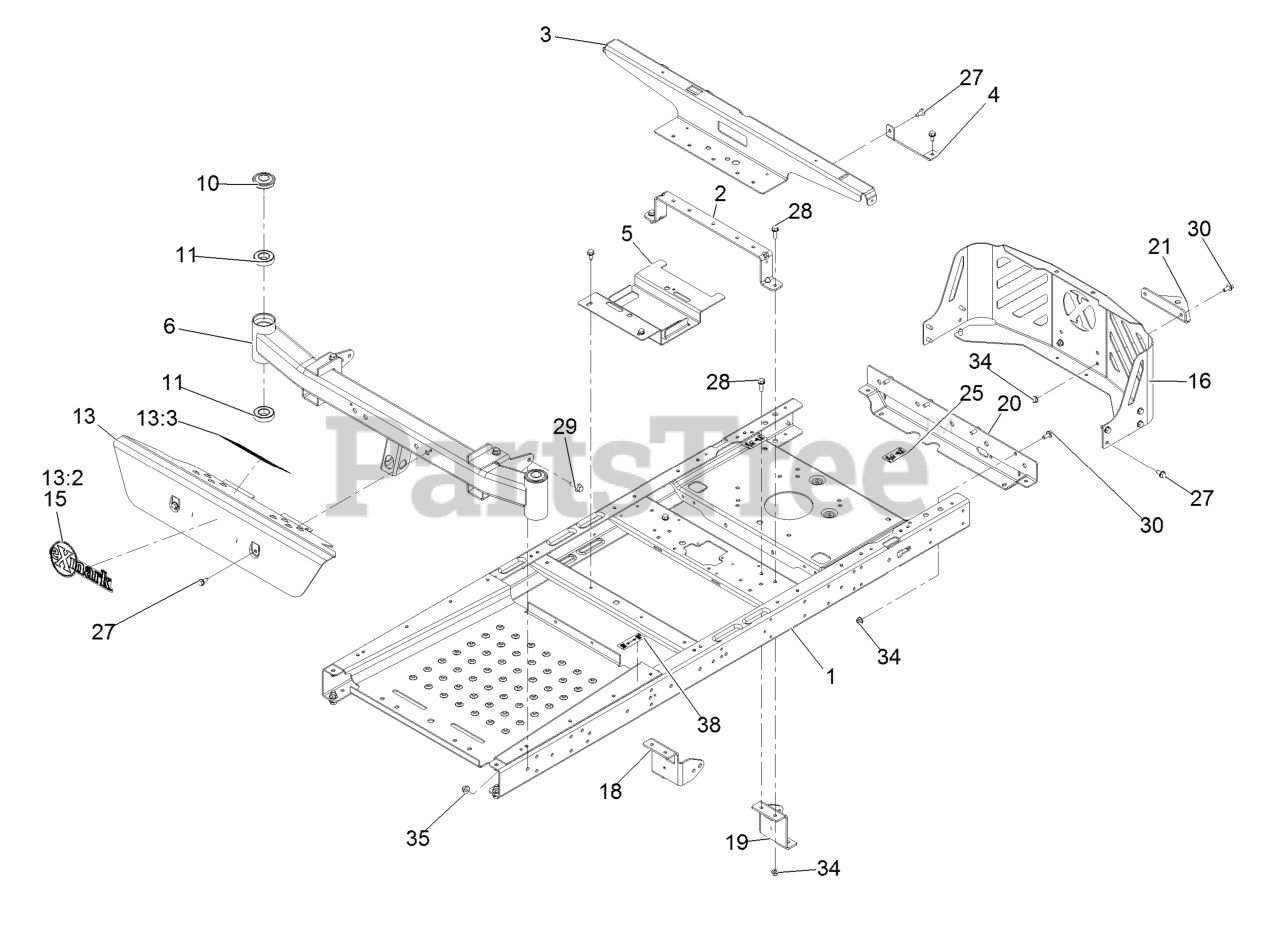

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 135-0508-01

RIVETED FRAME ASM (WIDE LEVER)

$498.99

$

Usually ships in 3-6 days

0

2

Exmark 135-0687-03

BRACE-SEAT, REAR (WIDE)

$21.99

$

Usually ships in 3-6 days

0

3

Exmark 133-7063-03

SUPPORT-POD

$89.99

$

Usually ships in 3-6 days

0

4

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 135-0507-03

BRACKET-BATTERY

$301.99

$

Usually ships in 3-6 days

0

6

Exmark 125-1726-01

AXLE ASM

$387.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4348

CAP-GREASE

$5.99

$

In Stock, Qty 10

0

11

Exmark 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 7

0

13

Exmark 133-1159

FOOTREST ASM

$186.99

$

Usually ships in 3-6 days

0

13:2

Exmark 126-6969

DECAL-EXMARK LOGO

$8.49

$

In Stock, Qty 13

0

13:3

Exmark 132-0869

DECAL-DANGER

$11.99

$

In Stock, only 1 left!

0

15

Exmark 126-6969

DECAL-EXMARK LOGO

$8.49

$

In Stock, Qty 13

0

16

Exmark 131-1018-03

GUARD-ENGINE, WIDE

$135.99

$

Usually ships in 3-6 days

0

18

Exmark 131-0901-01

MOUNT-HYDRO, FRONT (RH)
(Superseded to 137-7020-01)

$17.99

$

Usually ships in 3-6 days

0

19

Exmark 131-0902-01

MOUNT-HYDRO, FRONT (LH)
(Superseded to 139-3211-01)

$16.99

$

In Stock, only 3 left!

0

20

Exmark 130-6946-01

CROSSMEMBER-REAR, WIDE

$46.99

$

Usually ships in 3-6 days

0

21

Exmark 117-1232-03

BRACKET-HITCH

$31.99

$

In Stock, only 2 left!

0

25

Exmark 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

27

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

28

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 9

0

30

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

34

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0
