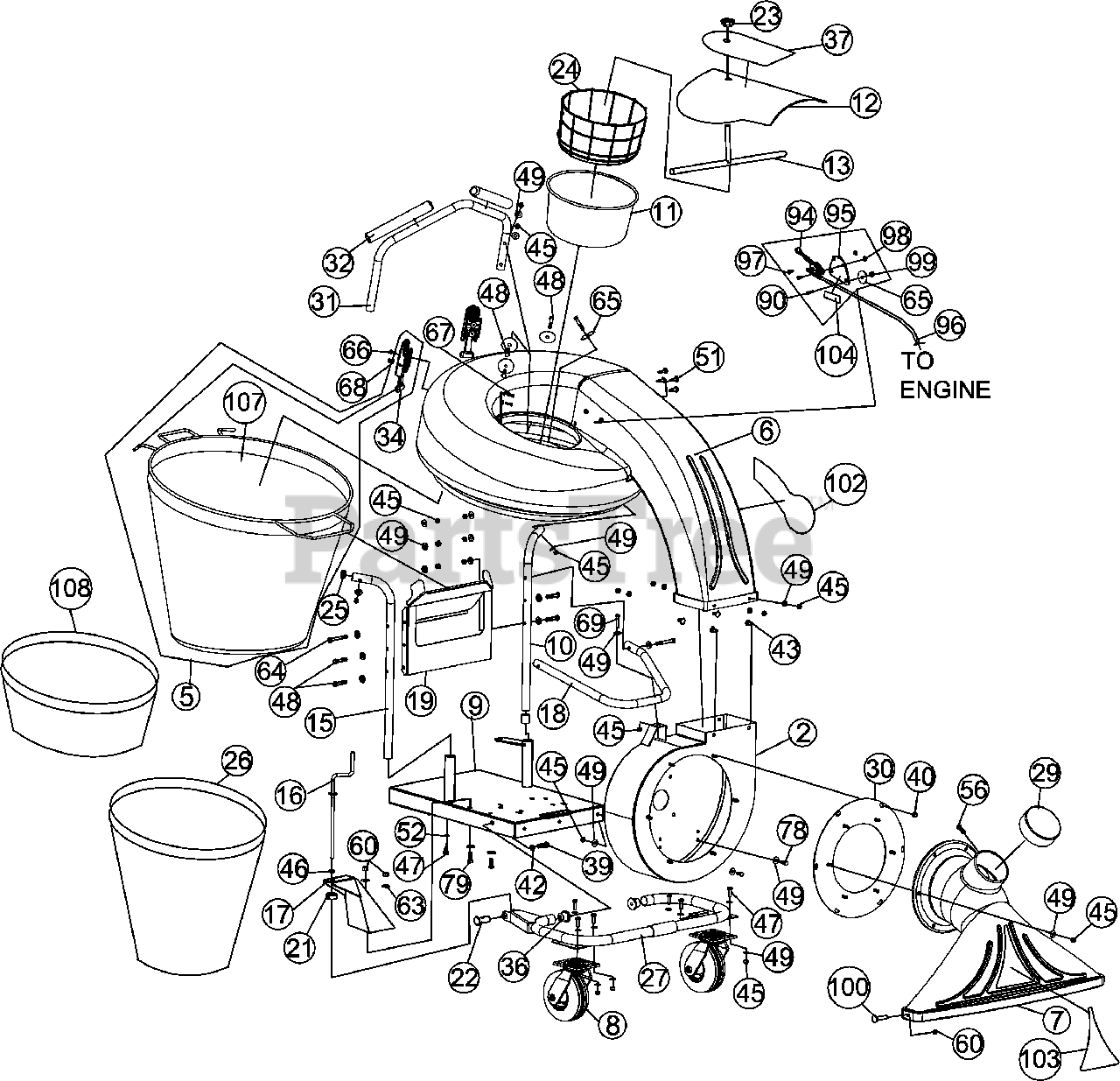

QV 550 H - Billy Goat QuietVac Lawn & Litter Vacuum HOOD Parts Diagram

QuietVac Lawn & Litter Vacuum

HOOD Parts Diagram

  • Title

2

Billy Goat 831600

HOUSING QV WA W/LABELS

$413.99

$

Usually ships in 2-11 days

0

5

Billy Goat 831225

BAG QV

$

$

Currently unavailable

6

Billy Goat 831605

HOOD QV

$744.99

$

Usually ships in 2-11 days

0

7

Billy Goat 831606

NOZZLE 32" W/LABELS

$323.99

$

Usually ships in 2-11 days

0

8

Billy Goat 831201

CASTER SWIVEL QV

$250.99

$

Usually ships in 2-11 days

0

9

Billy Goat 831105

ENGINE BASE 5 HP WA SP

$282.99

$

Usually ships in 2-11 days

0

10

Billy Goat 831404

HANDLE LOWER LFT

$26.99

$

Usually ships in 2-11 days

0

11

Billy Goat 831226

HOOD FILTER

$69.99

$

In Stock, only 2 left!

0

12

Billy Goat 831604

HOOD SCOOP QV PUSH W/LABEL

$122.99

$

Usually ships in 2-11 days

0

13

Billy Goat 831266

ROD FILTER HOLDER QV

$12.99

$

Usually ships in 2-11 days

0

15

Billy Goat 831403

HANDLE LOWER RT

$26.99

$

Usually ships in 2-11 days

0

16

Billy Goat 831214

HEIGHT ADJ ROD

$38.99

$

Usually ships in 2-11 days

0

17

Billy Goat 831110

HEIGHT ADJ BRACKET WA

$49.99

$

Usually ships in 2-11 days

0

18

Billy Goat 831405

HANDLE WISHBONE

$35.99

$

Usually ships in 2-11 days

0

19

Billy Goat 831222

BRACKET HANDLE SUPPORT

$79.99

$

Usually ships in 2-11 days

0

21

Billy Goat 831216

STOP COLLAR

$8.49

$

Usually ships in 2-11 days

0

22

Billy Goat 831209

PIVOT HEIGHT ADJ QV
(Superseded to 831117)

$85.99

$

Usually ships in 2-11 days

0

23

Billy Goat 811230

KNOB 3/8" - 16 SOLID HUB

$8.99

$

In Stock, only 1 left!

0

24

Billy Goat 831223

FILTER FRAME

$80.99

$

Usually ships in 2-11 days

0

25

Billy Goat 890132

PLUG TUBE INSERT 1" OD

$

$

Not available

26

Billy Goat 831282

DUST SOCK

$180.99

$

In Stock, only 1 left!

0

27

Billy Goat 831108

FRAME CASTER QV WA

$182.99

$

Usually ships in 2-11 days

0

28

Billy Goat 501243

INSERT 5/16"-18 TUBE 14/16 GA

$9.99

$

Usually ships in 2-11 days

0

29

Billy Goat 831211

CAP 5" VINYL BLACK

$16.99

$

In Stock, only 1 left!

0

30

Billy Goat 831109

PLATE NOZZLE WA QV

$69.99

$

Usually ships in 2-11 days

0

31

Billy Goat 831406

HANDLE UPPER QV

$32.99

$

Usually ships in 2-11 days

0

32

Billy Goat 430342

GRIP 1" OD X 9.5"

$7.99

$

Usually ships in 2-11 days

0

34

Billy Goat 840016

BAG LATCH
(Superseded to 840139-S)

$77.99

$

In Stock, only 2 left!

0

36

Billy Goat 831207

BUSHING FRAME PIVOT

$37.99

$

Usually ships in 2-11 days

0

37

Billy Goat 831258

LABEL INSTRUCTION QV

$15.99

$

Usually ships in 2-11 days

0

39

Billy Goat 8041051

SCREWCAP 3/8"-16 X 1 1/4" HCS ZP

$0.99

$

In Stock, Qty 9

0

40

Billy Goat 350346

NUT 5/16-18 SER HEX WSHR FLNG ZP

$0.99

$

Usually ships in 2-11 days

0

42

Billy Goat 8177012

WASHER LOCK 3/8" ST MED

$0.99

$

In Stock, Qty 9

0

43

Billy Goat 8024039

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

$0.99

$

In Stock, Qty 10

0

45

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX ZP

$0.99

$

In Stock, Qty 10

0

46

Billy Goat 831215

BUSING HEIGHT ADJ BRKT QV

$2.99

$

Usually ships in 2-11 days

0

47

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" HCS ZP

$0.99

$

In Stock, Qty 9

0

48

Billy Goat 8041031

SCREWCAP 5/16"-18 X 1 3/4" HCS ZP

$0.99

$

In Stock, Qty 5

0

49

Billy Goat 8171003

WASHER 5/16" FLAT

$0.99

$

In Stock, Qty 10

0

51

Billy Goat 840114

PLUG SNAP RIVET 0.232 DIA

$0.99

$

Usually ships in 2-11 days

0

52

Billy Goat 8177011

WASHER LOCK 5/16" SPLIT

$0.99

$

In Stock, Qty 8

0

56

Billy Goat 840082

SCREW PLASTITE 1/4"-20 X 3/4" HWH ZP

$1.49

$

In Stock, only 3 left!

0

60

Billy Goat 8160003

NUT LOCK 3/8" -16 HEX

$0.99

$

In Stock, Qty 8

0

63

Billy Goat 8171004

WASHER 3/8" FLAT

$0.99

$

In Stock, Qty 10

0

64

Billy Goat 8041035

SCREWCAP 5/16"-18 2 3/4" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

65

Billy Goat 810652

WASHER 2" OD X 0.344 ID X 16 GA

$1.99

$

Usually ships in 2-11 days

0

66

Billy Goat 8155007

NUT LOCK #10-24 HEX

$0.99

$

Usually ships in 2-11 days

0

67

Billy Goat 8059136

SCREW MACH #10-24 X 3/4"

$0.99

$

In Stock, Qty 6

0

68

Billy Goat 8172005

WASHER #10 SAE

$0.99

$

In Stock, only 2 left!

0

69

Billy Goat 8041030

SCREWCAP 5/16"-18 X 1 1/2"

$0.99

$

Usually ships in 2-11 days

0

78

Billy Goat 8041026

SCREWCAP 5/16"-18 X 3/4" HCS ZP

$0.99

$

In Stock, Qty 7

0

79

Billy Goat 8041050

SCREWCAP 3/8"-16 X 1" HCS ZP

$0.99

$

In Stock, Qty 6

0

90

Billy Goat 8041004

SCREWCAP 1/4"-20 X 3/4"

$0.99

$

In Stock, Qty 6

0

94

Billy Goat 440012

CONTROL THROTTLE
(Superseded to 440146)

$8.99

$

In Stock, only 2 left!

0

95

Billy Goat 500358

PLATE THROTTLE

$440.99

$

Usually ships in 2-11 days

0

96

Billy Goat 440178

CABLE THROTTLE

$31.99

$

In Stock, only 2 left!

0

97

Billy Goat 830514

SCREW MACH HD PHIL #10-24

$0.99

$

In Stock, Qty 6

0

98

Billy Goat 8164005

NUT LOCK LT #10-24

$0.99

$

In Stock, Qty 5

0

99

Billy Goat 900453

NUT FLANGE 1/4"-20
(Superseded to 900483)

$22.99

$

Usually ships in 2-11 days

0

100

Billy Goat 8024058

BOLT CARRIAGE 3/8"-16 X 1"

$1.49

$

In Stock, Qty 5

0

102

Billy Goat 831260

LABEL BADGING QV

$

$

Currently unavailable

103

Billy Goat 831261

LABEL NOZZLE QV

$11.99

$

Usually ships in 2-11 days

0

104

Billy Goat 810656

LABEL THROTTLE

$3.99

$

Usually ships in 2-11 days

0

107

Billy Goat 831613

BAG NO CLASPS SERVICE KIT

$

$

Currently unavailable

108

Billy Goat 831268

DUST SKIRT

$132.99

$

Usually ships in 2-11 days

0
