QV-670 - Echo QuikVent Chainsaw (SN: 03001001 - 03999999) Handles Parts Diagram

QV-670 Technical Specifications: - Mass with bar & chain, full fuel & oil: 8.7 kg (19.2 lb) - Powerhead only, dry: 7.2 kg (15.9 lb) - Engine: IR-cooled, 2-stroke, single cylinder - Displacement: 66.7 mL (4.07 cu in) - Bore x stroke: 50 mm x 34 mm (1.97 x 1.34 in) - Compression ratio: 7.6:1 - Max speed: 13,500 rpm (no-load) - Carburetor: diaphragm - Starter: recoil - Ignition: CDI with SAIS - Spark plug: Champion CJ-6Y, gap 0.6-0.7 mm - Fuel mix: 50:1 gasoline (<89 octane) + oil - Fuel tank: 0.64 L (21.64 oz) - Oil tank: 0.37 L (12.5 oz) - Guide bar: 305 mm (12 in) - Chain: Papco Firebrand 400-s, 9.53 mm pitch, 7-teeth - Speed: 9,500 rpm → 21.1 m/s (4,150 f/m) - Features: skid/stand, large starter handle, chain brake, anti-vibration, throttle safety catch, handles, chain catcher

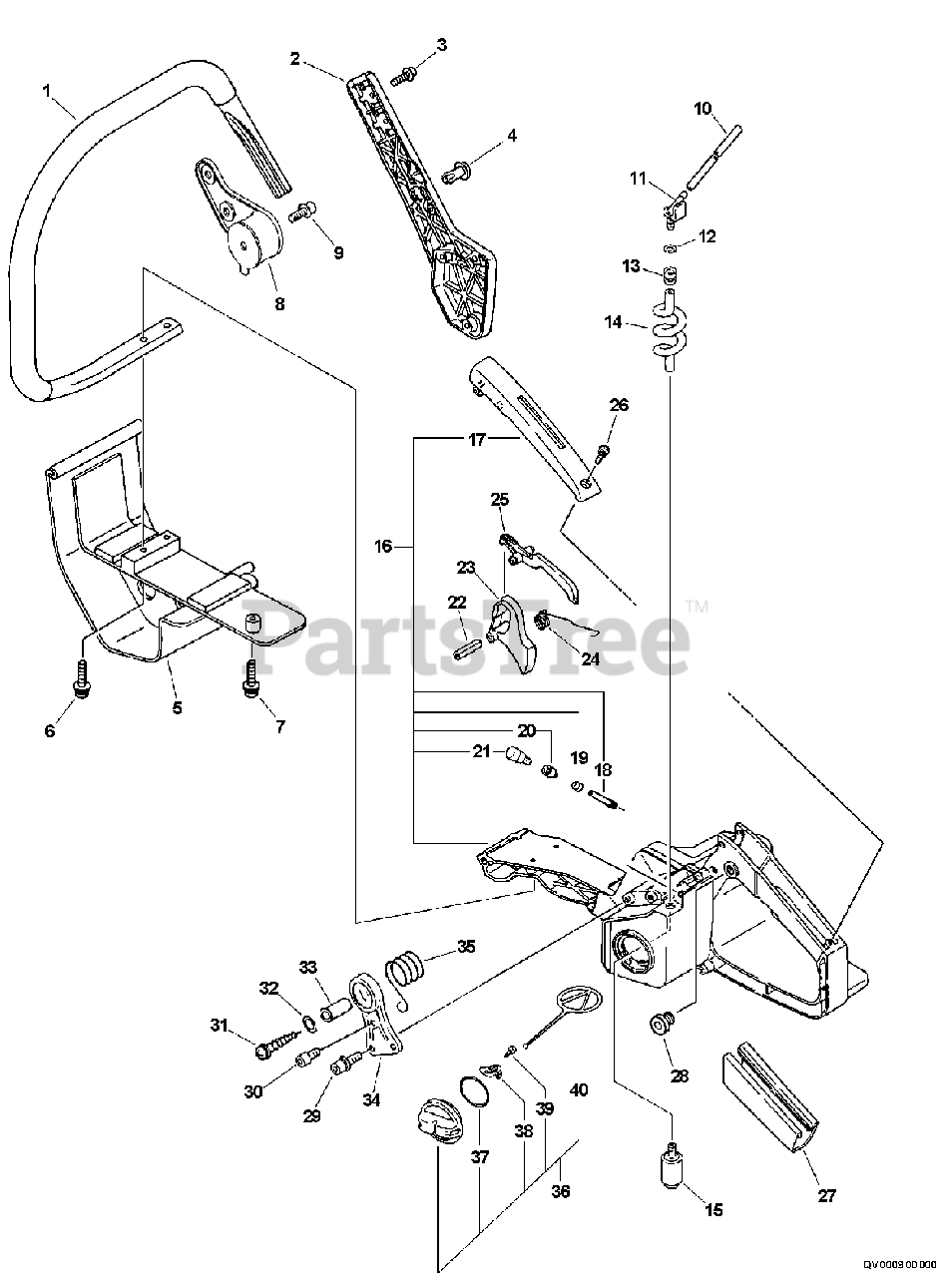

Handles Parts Diagram

  • Title

1

Echo C400000100

HANDLE, FRONT
(Superseded to C400000101)

$106.99

$

In Stock, only 1 left!

0

2

Echo 35161638230

BRACKET, GRAY HANDLE

$57.99

$

In Stock, only 1 left!

0

3

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 20+

0

4

Echo V649000010

RIVET

$0.99

$

In Stock, Qty 7

0

5

Echo 30510532630

STAND

$207.99

$

Usually ships in 2-4 days

0

6

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

7

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

8

Echo V401000050

CUSHION 5

$19.99

$

Usually ships in 2-4 days

0

9

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

10

Echo 13201056030

PIPE, FUEL 3×6×110
(Superseded to 13201056031)

Note: RePower BULK OPTION: 90015

$3.49

$

In Stock, only 2 left!

0

11

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$5.49

$

In Stock, Qty 9

0

12

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

13

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

14

Echo 13201030830

PIPE, FUEL
(Superseded to 13201030831)

$6.99

$

In Stock, Qty 12

0

15

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

16

Echo 35110338131

REAR HANDLE ASSY
(Superseded to 35110338132)

Note: Includes ITEMS 17-21

$

$

Not available

17

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 3 left!

0

18

Echo 13131232430

PIPE, VENT

$16.99

$

In Stock, only 2 left!

0

19

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

20

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

21

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

22

Echo 90034250025

PIN, SPRING Ø5×25 MM

$1.99

$

In Stock, Qty 8

0

23

Echo C450000040

TRIGGER, THROTTLE
(Superseded to C450000041)

$5.49

$

Usually ships in 2-4 days

0

24

Echo 17804319830

SPRING, THROTTLE RETURN

$2.99

$

In Stock, Qty 6

0

25

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, Qty 6

0

26

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 9

0

27

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 1 left!

0

28

Echo V162000040

PLUG

$1.99

$

In Stock, only 2 left!

0

29

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

30

Echo 90010505008

BOLT 5×8

$0.99

$

In Stock, Qty 20+

0

31

Echo 90010505035

SCREW - 5×35

$1.49

$

Usually ships in 2-4 days

0

32

Echo 90063000005

WASHER 5

$0.99

$

In Stock, only 1 left!

0

33

Echo V353000120

COLLAR 5

$5.99

$

In Stock, only 2 left!

0

34

Echo V419000010

BRACKET, CUSHION

$7.99

$

In Stock, only 2 left!

0

35

Echo V450000150

SPRING, COMPRESSION

$10.99

$

In Stock, only 2 left!

0

36

Echo 13100437631

CAP ASSY, FUEL
(Superseded to 13100437632)

Note: INCLUDES ITEMS 37-40

$4.49

$

In Stock, Qty 18

0

37

Echo 90072020029

O-RING 29

$3.99

$

In Stock, only 1 left!

0

38

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

39

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

40

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0
