QV-6700 - Echo QuikVent Chainsaw (Type 1E) Clutch Asy, Cutting Attachment, Chainbrake Parts Diagram

QuikVent Chainsaw (Type 1E)

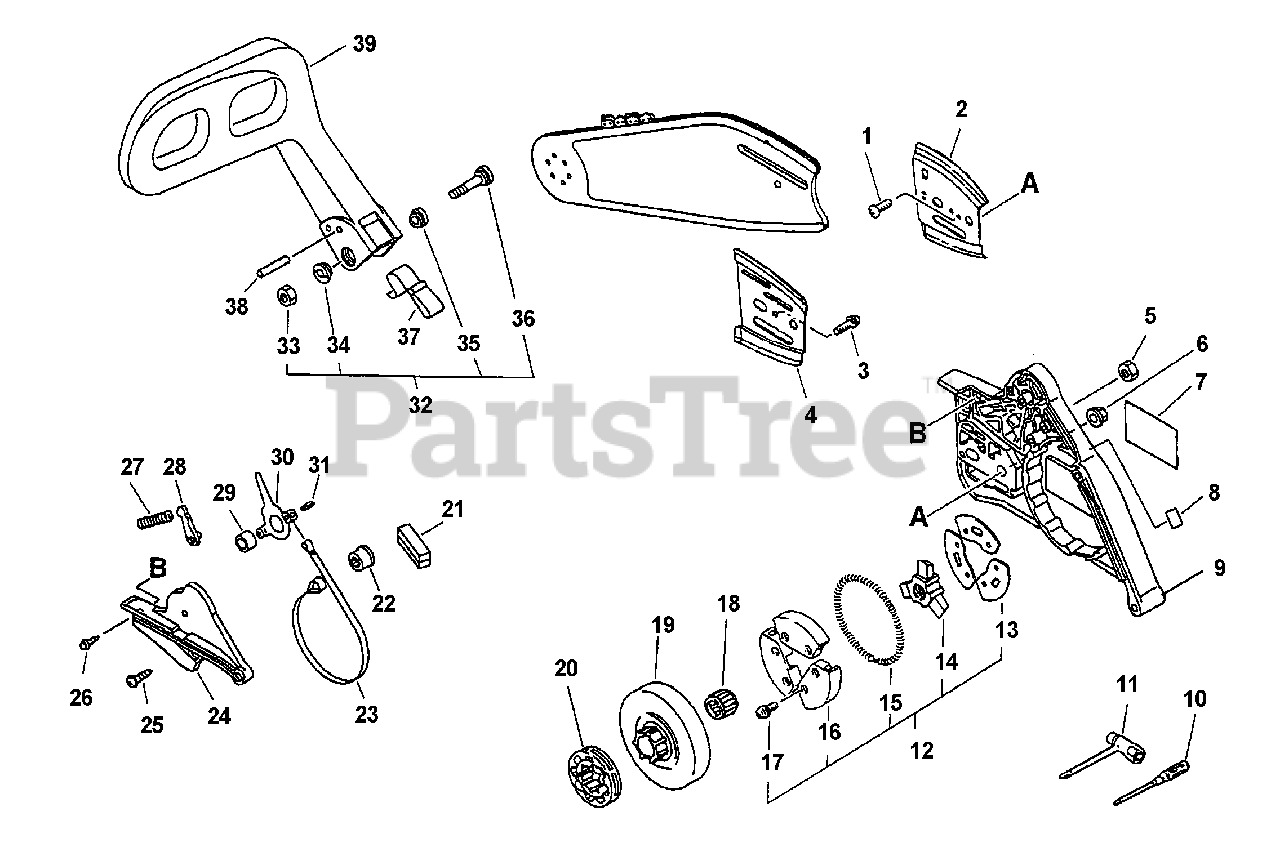

Clutch Asy, Cutting Attachment, Chainbrake Parts Diagram

  • Title

Echo 43320232631

CHAIN BRAKE ASSY
(Superseded to 43320232632)

Note: Includes ITEMS 9, 22-39

$98.99

$

In Stock, only 1 left!

0

1

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, Qty 11

0

2

Echo 43301232631

PLATE, GUIDE - OUTER

$4.99

$

Usually ships in 2-4 days

0

3

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

4

Echo 43301332631

PLATE, GUIDE - INNER

$5.49

$

Usually ships in 2-4 days

0

5

Echo 90050000003

NUT - 3

$0.99

$

In Stock, only 2 left!

0

6

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

7

Echo 89011838130

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

8

Echo 89015530130

LABEL - CAUTION
(Superseded to X524000680)

$3.99

$

Usually ships in 2-4 days

0

9

Echo 43300538230

GUARD, SPROCKET
(Superseded to P021002291)

$

$

Not available

10

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 4 left!

0

11

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 10

0

12

Echo 17500032431

CLUTCH ASSY
(Superseded to 17500032432)

Note: INCLUDES ITEMS 13 - 17

$77.99

$

Usually ships in 2-4 days

0

13

Echo 17501916130

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

14

Echo 17501632430

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

15

Echo 17501832430

SPRING, CLUTCH

$2.99

$

In Stock, only 1 left!

0

16

Echo 17500232430

CLUTCH SHOE SET
(Superseded to 17500232431)

$61.99

$

In Stock, only 1 left!

0

17

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 8

0

18

Echo 17501232430

BEARING, NEEDLE

$13.99

$

In Stock, only 2 left!

0

19

Echo 17510532430

DRUM, CLUTCH
(Superseded to 17510532431)

$40.99

$

In Stock, Qty 6

0

20

Echo 682100

SPROCKET, RIM

$14.99

$

In Stock, Qty 11

0

21

Echo 43331232630

SEAL

$1.49

$

In Stock, Qty 7

0

22

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 4 left!

0

23

Echo 43312338131

BAND, BRAKE

$9.99

$

In Stock, only 1 left!

0

24

Echo 43331038230

COVER, BRAKE

$6.49

$

Usually ships in 2-4 days

0

25

Echo 90022003018

SCREW - 3X18

$0.99

$

In Stock, only 4 left!

0

26

Echo 90025204012

SCREW - 4X12

$0.99

$

In Stock, only 2 left!

0

27

Echo 43312238130

SPRING, BRAKE

$6.99

$

Usually ships in 2-4 days

0

28

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

29

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 11

0

30

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

31

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 3 left!

0

32

Echo 43311337539

MOUNTING KIT

Note: INCLUDES ITEMS 33-6

$5.49

$

In Stock, Qty 14

0

33

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

34

Echo 43316739130

SPACER

$2.99

$

In Stock, Qty 20+

0

35

Echo 43316739730

COLLAR - 5

$2.99

$

In Stock, only 2 left!

0

36

Echo 90020905035

SCREW - 5X35

$1.49

$

In Stock, Qty 5

0

37

Echo 43311438131

SPRING, RETURN

$6.99

$

Usually ships in 2-4 days

0

38

Echo 90033035260

PIN - 3.5X26

$0.99

$

In Stock, Qty 7

0

39

Echo 43310533530

LEVER, BRAKE
(Superseded to 43310533531)

$

$

Not available
