QV-680 - Echo QuikVent Chainsaw (SN: C03403001001 - C03403999999) Engine, Cylinder Cover Parts Diagram

QuikVent Chainsaw

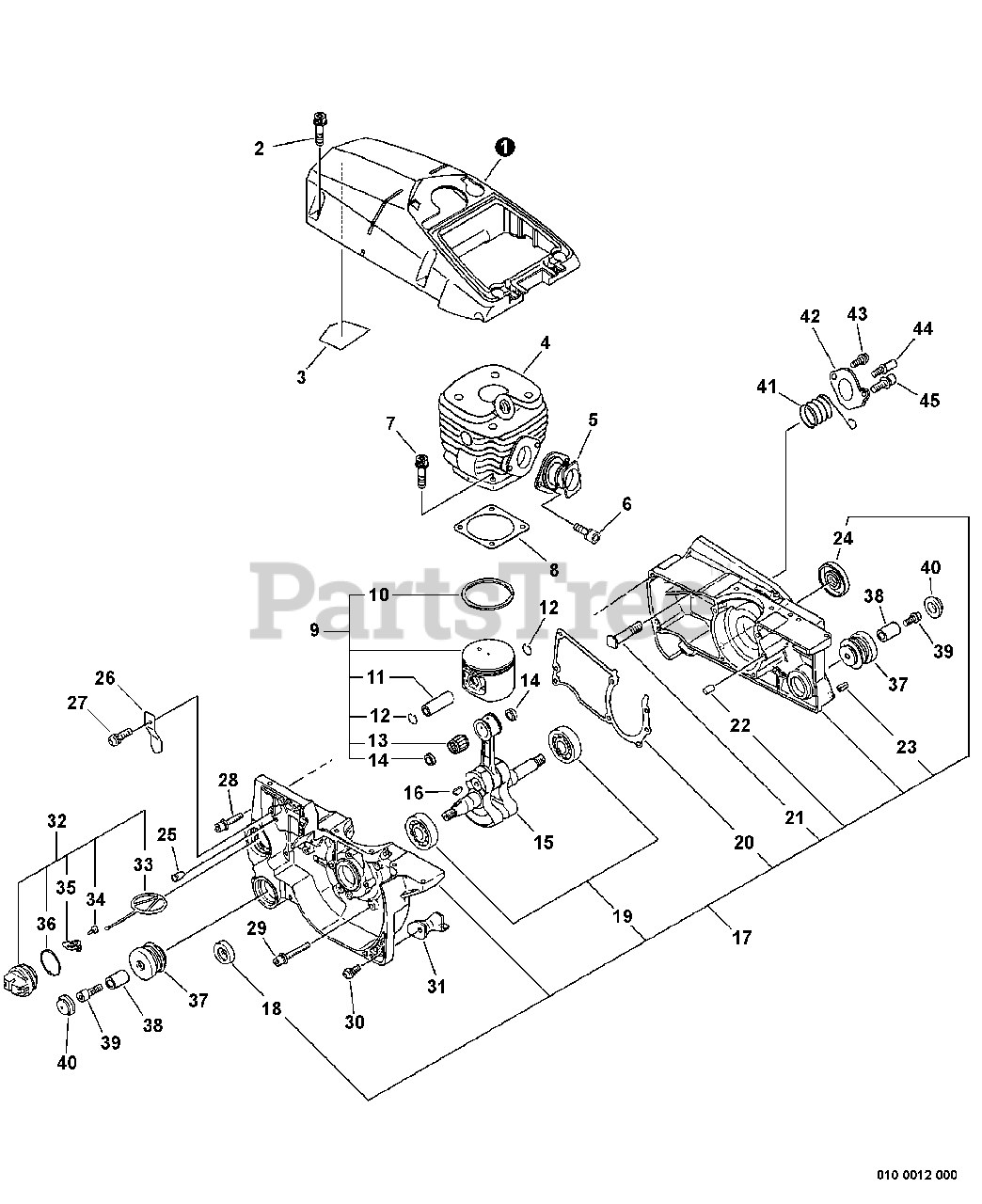

Engine, Cylinder Cover Parts Diagram

  • Title

1

Echo A160000461

COVER, ENGINE

$49.99

$

Usually ships in 2-4 days

0

2

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo V341000010

SHIELD, HEAT

$5.99

$

Usually ships in 2-4 days

0

4

Echo A130000171

CYLINDER
(Superseded to A130000172)

$161.99

$

In Stock, only 2 left!

0

5

Echo A202000010

BELLOWS, INTAKE
(Superseded to A202000011)

$25.99

$

In Stock, only 1 left!

0

6

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

7

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

8

Echo 10101032431

GASKET, CYLINDER

$2.99

$

In Stock, Qty 11

0

9

Echo P021015290

PISTON KIT

Note: Includes ITEMS 10-14

$92.99

$

Usually ships in 2-4 days

0

10

Echo A101000150

RING, PISTON

$13.99

$

Usually ships in 2-4 days

0

11

Echo V610000000

PIN, PISTON 12

$4.99

$

Usually ships in 2-4 days

0

12

Echo V580000000

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

13

Echo 10001232430

BEARING, NEEDLE

$15.99

$

Usually ships in 2-4 days

0

14

Echo 10001418430

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

15

Echo A011000250

CRANKSHAFT ASSY

$234.99

$

Usually ships in 2-4 days

0

16

Echo 10014230830

KEY, WOODRUFF

$1.99

$

In Stock, only 4 left!

0

17

Echo 10020432435

CRANKCASE KIT
(Superseded to 10020432436)

Note: Includes ITEMS 18-25

$327.99

$

Usually ships in 2-4 days

0

18

Echo 10021219830

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

19

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

20

Echo 10024232430

GASKET, CRANKCASE

$6.99

$

Usually ships in 2-4 days

0

21

Echo 43301119831

STUD, GUIDE BAR 8

$3.49

$

In Stock, Qty 15

0

22

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90034550010

PIN, SPRING 5×10

$1.99

$

Usually ships in 2-4 days

0

24

Echo 10021232430

SEAL, OIL

$6.99

$

In Stock, only 3 left!

0

25

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

26

Echo V150000570

PLATE, EYE

$2.99

$

Usually ships in 2-4 days

0

27

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

28

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

29

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

30

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

31

Echo 10091732430

CUSHION

$19.99

$

Usually ships in 2-4 days

0

32

Echo 43600135934

CAP ASSY

Note: Includes ITEMS 33-36

$16.99

$

In Stock, only 2 left!

0

33

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

34

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

35

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

36

Echo 90072502025

O-RING

$2.99

$

In Stock, Qty 5

0

37

Echo V420000530

CUSHION

$8.99

$

In Stock, only 1 left!

0

38

Echo V353000110

COLLAR 5

$3.99

$

In Stock, only 1 left!

0

39

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 8

0

40

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, only 2 left!

0

41

Echo V450000150

SPRING, COMPRESSION

$10.99

$

In Stock, only 1 left!

0

42

Echo V150000750

PLATE, EYE

$4.99

$

Usually ships in 2-4 days

0

43

Echo 90016204008

BOLT 4×8

$1.49

$

In Stock, Qty 7

0

44

Echo V203000050

BOLT 5

$2.99

$

In Stock, only 2 left!

0

45

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0
