QV-680 - Echo QuikVent Chainsaw (SN: C03403001001 - C03403999999) Starter, Ignition, Flywheel Parts Diagram

QuikVent Chainsaw

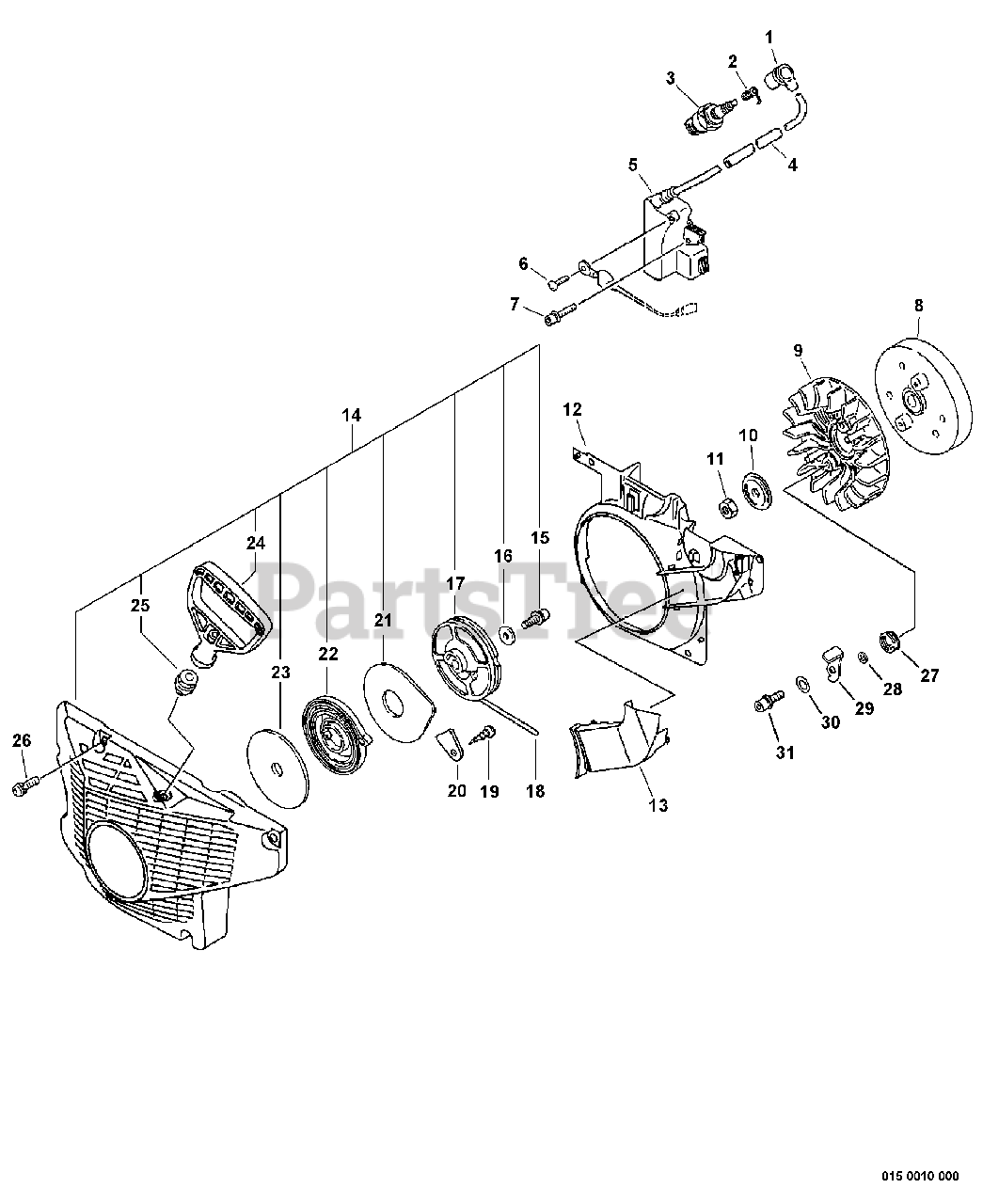

Starter, Ignition, Flywheel Parts Diagram

  • Title

1

Echo A427000010

CAP, SPARK PLUG
(Superseded to A427000011)

$2.99

$

In Stock, Qty 20+

0

2

Echo A426000010

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

3

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.49

$

In Stock, Qty 20+

0

4

Echo 15661119830

TUBE

$1.99

$

Usually ships in 2-4 days

0

5

Echo 15660132631

COIL, IGNITION
(Superseded to 15660132632)

$138.99

$

In Stock, only 1 left!

0

6

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 9

0

7

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

8

Echo 15680032631

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

9

Echo A171000060

FAN

$10.99

$

In Stock, only 1 left!

0

10

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, Qty 20+

0

11

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

12

Echo A172000850

COVER, FAN

$10.99

$

Usually ships in 2-4 days

0

13

Echo A161000020

DUCT, AIR

$6.49

$

Usually ships in 2-4 days

0

14

Echo P021017380

STARTER ASSY

Note: Includes ITEMS 15-25

$120.99

$

Usually ships in 2-4 days

0

15

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

16

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 17721532330

REEL, ROPE

$8.99

$

Usually ships in 2-4 days

0

18

Echo 17722607060

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$10.99

$

In Stock, Qty 13

0

19

Echo 90025304008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

20

Echo 43314415130

RETAINER, BRAKE BAND

$1.99

$

Usually ships in 2-4 days

0

21

Echo 17722107060

PLATE, STARTER

$10.99

$

In Stock, only 1 left!

0

22

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 16

0

23

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 12

0

24

Echo 17722832630

GRIP, STARTER

$16.99

$

Usually ships in 2-4 days

0

25

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

26

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

27

Echo 17723419832

SPRING, RETURN

$3.49

$

In Stock, Qty 7

0

28

Echo V353000191

SPACER, PAWL
(Superseded to V353000192)

$3.49

$

Usually ships in 2-4 days

0

29

Echo 17721832631

PAWL, STARTER
(Superseded to 17721832632)

$5.49

$

Usually ships in 2-4 days

0

30

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

31

Echo V203000150

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0
