QV-8000 - Echo QuikVent Chainsaw (Type 1E) (Original Version) Carburetor -- HDA-153A_B Parts Diagram

QuikVent Chainsaw (Type 1E)

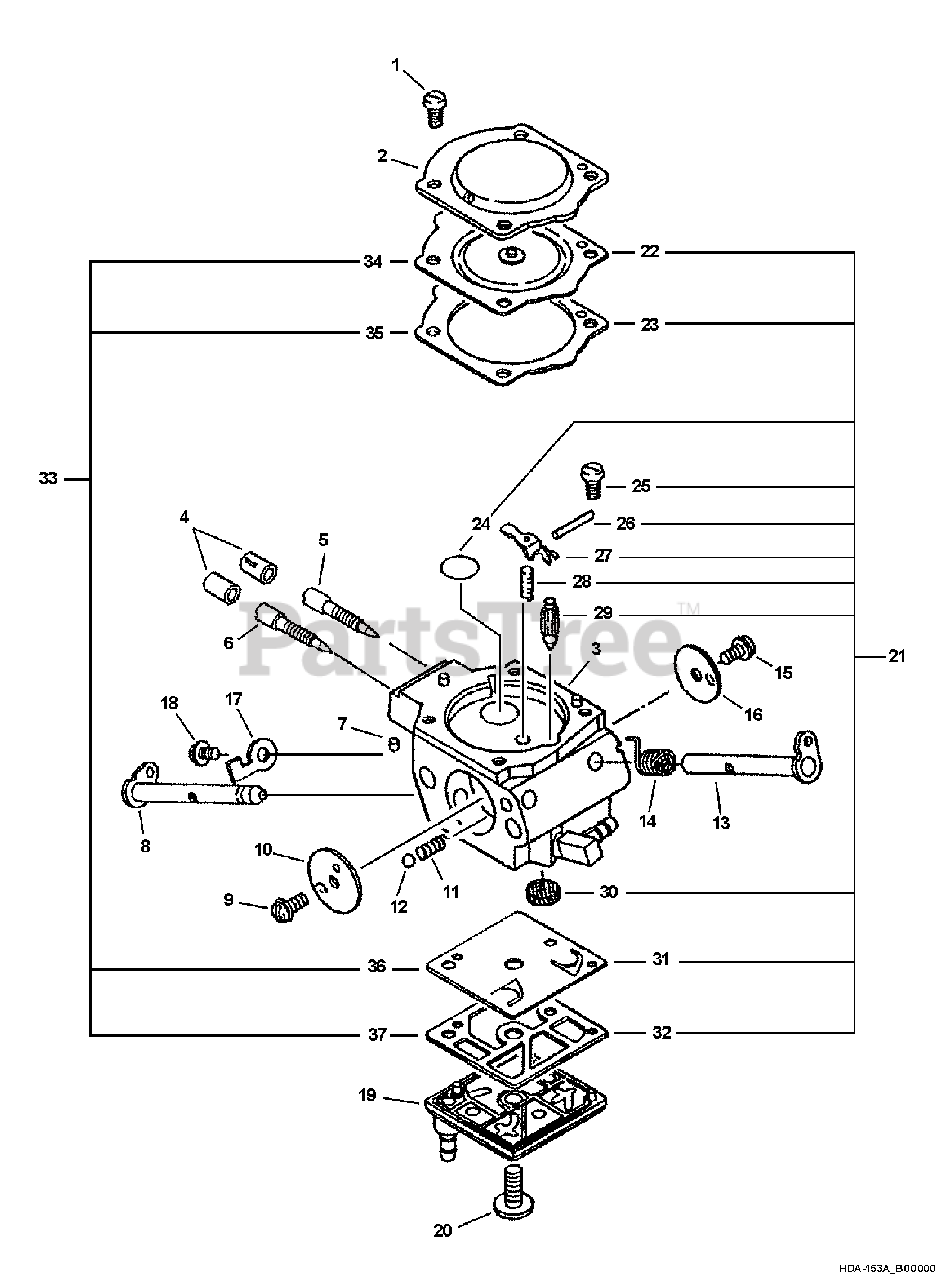

Carburetor -- HDA-153A_B Parts Diagram

  • Title

Echo 12300038831

CARBURETOR HDA-153A
(Superseded to 12300038832)

$138.99

$

Usually ships in 2-4 days

0

Echo 12300038832

CARBURETOR HDA-153B

$138.99

$

Usually ships in 2-4 days

0

1

------------------

SCREW

$

$

Not available

2

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

3

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

4

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

5

Echo 12311802260

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

6

Echo 12312032631

NEEDLE - HIGH SPEED

$4.49

$

In Stock, only 4 left!

0

7

Echo 12317815030

PLUG

$4.99

$

Usually ships in 2-4 days

0

8

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

9

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

10

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

13

Echo 12311732430

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

14

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

16

Echo 12311616130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

17

Echo 12315630830

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

18

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

19

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

20

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12310032630

REPAIR KIT

Note: INCLUDES ITEMS 22-32

$17.99

$

Usually ships in 2-4 days

0

22

------------------

DIAPHRAGM, METERING

$

$

Not available

23

------------------

GASKET, DIAPHRAGM

$

$

Not available

24

------------------

PLUG, WELCH

$

$

Not available

25

------------------

SCREW, METERING LEVER PIN

$

$

Not available

26

------------------

PIN, METERING LEVER

$

$

Not available

27

------------------

LEVER, METERING

$

$

Not available

28

------------------

SPRING, METERING LEVER

$

$

Not available

29

------------------

VALVE, INLET NEEDLE

$

$

Not available

30

------------------

STRAINER

$

$

Not available

31

------------------

DIAPHRAGM, PUMP

$

$

Not available

32

------------------

GASKET, PUMP

$

$

Not available

33

Echo 12310117330

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEMS 34-37

$8.99

$

Usually ships in 2-4 days

0

34

------------------

GASKET, DIAPHRAGM

$

$

Not available

35

------------------

DIAPHRAGM, METERING

$

$

Not available

36

------------------

DIAPHRAGM, PUMP

$

$

Not available

37

------------------

GASKET, PUMP

$

$

Not available
