QV-8000 - Echo QuikVent Chainsaw (Type 1E) (SN: 001001 - 999999) Clutch Parts Diagram

QuikVent Chainsaw (Type 1E)

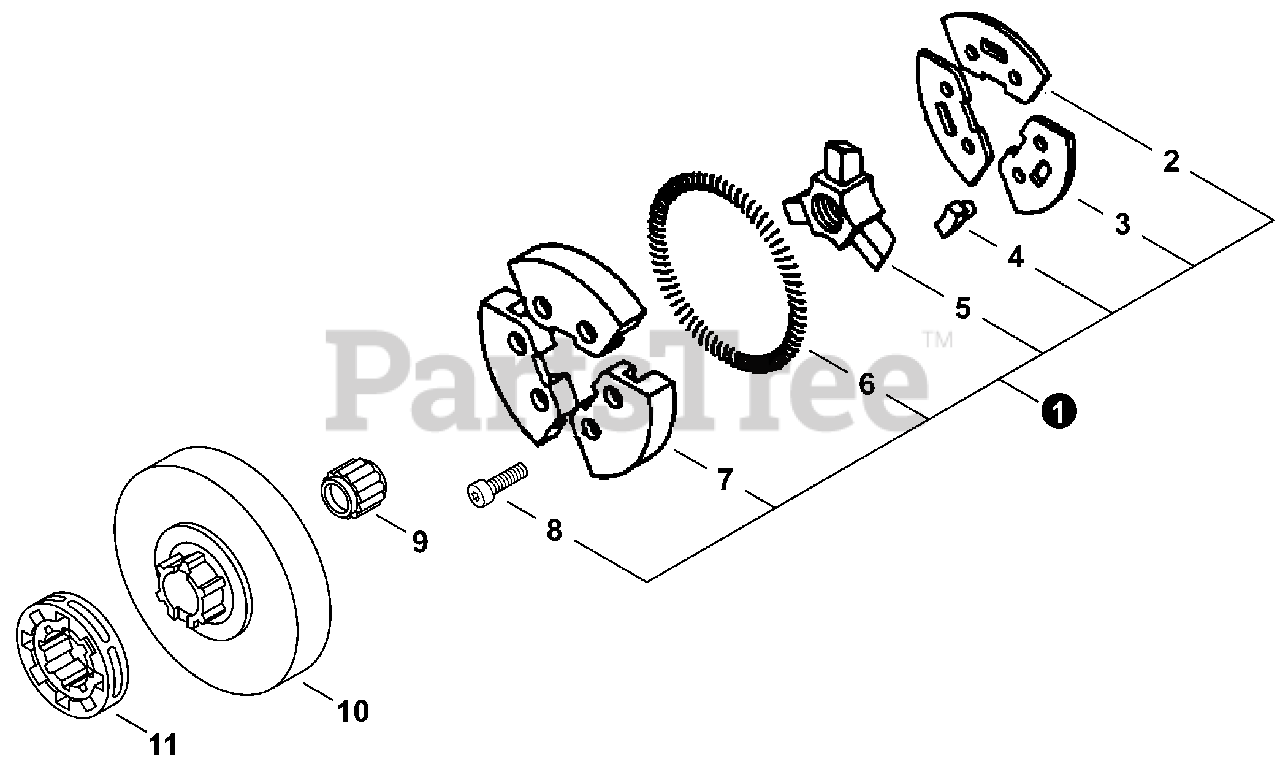

Clutch Parts Diagram

  • Title
1

Echo Part# 17500030832

CLUTCH ASSY

Note: Includes Items 2-8

Usually ships in 5 to 10 days

$

$104.05

0

2

Echo Part# 17501930830

PLATE, CLUTCH
Usually ships in 5 to 10 days

$

$2.20

0

3

Echo Part# 17502930830

PLATE, CLUTCH
Usually ships in 5 to 10 days

$

$2.45

0

Usually ships in 5 to 10 days

$

$1.32

0

5
Usually ships in 5 to 10 days

$

$13.86

0

6

Echo Part# 17501830830

SPRING, CLUTCH
Usually ships in 1 day

$

$2.69

0

7

Echo Part# 17500230831

SHOE SET, CLUTCH
Usually ships in 5 to 10 days

$

$23.09

0

Usually ships in 1 day

$

$0.69

0

9

Echo Part# 17501230831

BEARING, NEEDLE
Usually ships in 1 day

$

$10.84

0

10

Echo Part# 17510530831

DRUM, CLUTCH
Usually ships in 1 day

$

$38.70

0

11

Echo Part# 17503314731

SPROCKET, RIM 3/8"×7T
Usually ships in 1 day

$

$12.30

0
