QV-8000 - Echo QuikVent Chainsaw (Type 1E) (SN: C90303001001 - C90303999999) Carburetor Parts Diagram

Chainsaw: Engine: air-cooled, single-cylinder, 2-stroke - Displacement: 4.92 cu. in. (80.7 cc) - Bore/Stroke: 2.05 in. (52 mm) / 1.50 in. (38 mm) - Compression ratio: 7.321:1 - Bearings: heavy-duty ball bearings on crankshaft, caged needles on rod/piston pin - Max engine speed: 12,500 rpm (no-load) - Ignition: CDI with sloped advance timing - Spark plug gap: 0.024-0.028 in. (0.6-0.7 mm) - Fuel/Lubrication: 89 octane unleaded gasoline. 32:1 or 50:1 Echo two-cycle oil; 27 oz. (0.82 L) fuel capacity - Guide bar: 12 in. angle, industrial sprocket nose, 3/8" 7" teeth, 0.063" gauge - Chain: Papco Firebrand #75dg-50e, 400-S, 3/8" pitch, 0.063" drive link gauge, 4,150 fpm at 9,500 rpm - Lubrication: automatic/adjustable & manual override bar oil, 13.6 oz. (0.4 L) tank - Weight: 22.0 lb (with bar & chain, full gas & oil) - Features: patented skid/stand, anti-vibration, throttle safety catch, front/rear handles, chain brake, chain catcher, large starter handle.

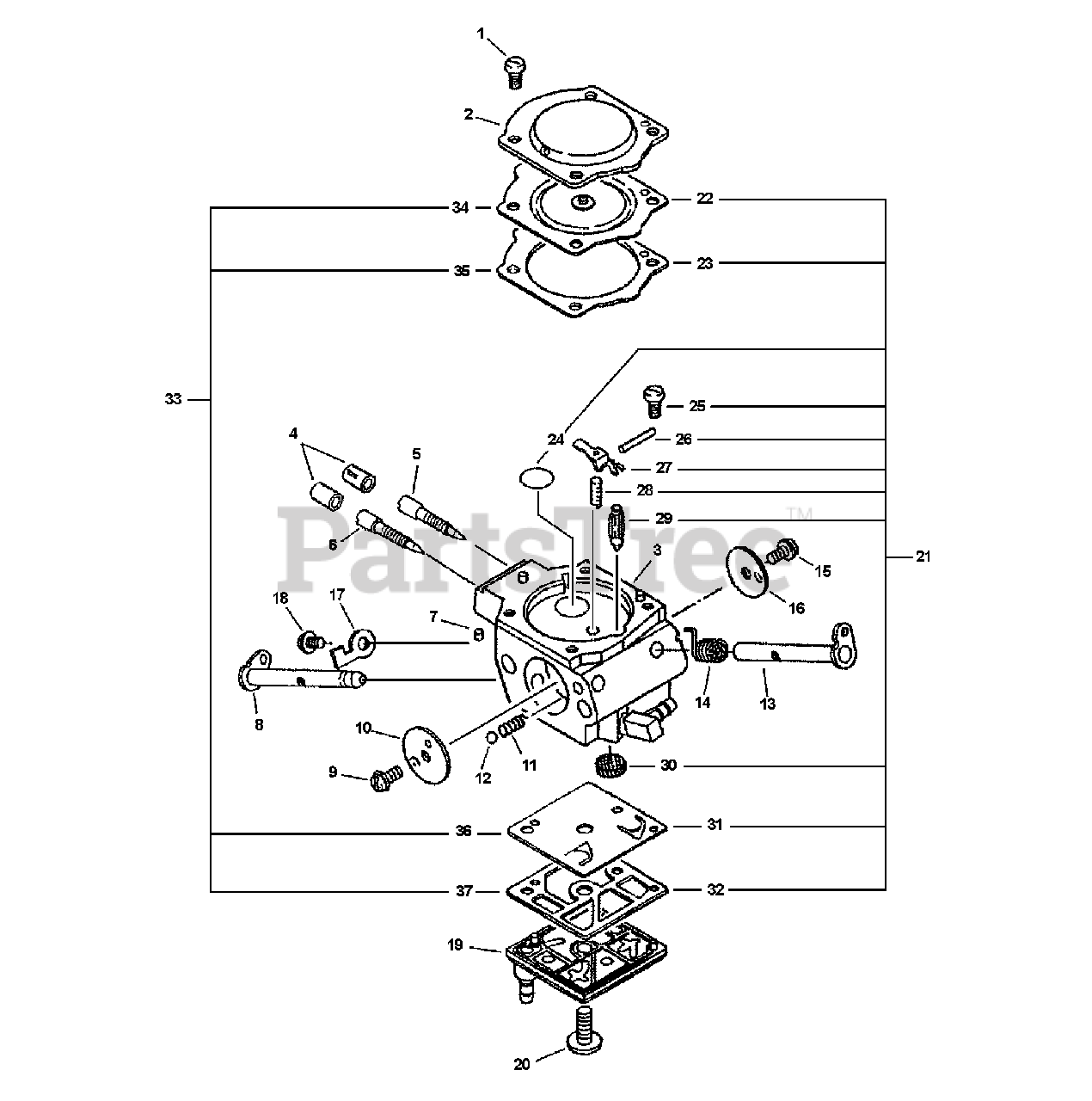

Carburetor Parts Diagram

  • Title

Echo 12300038831

CARBURETOR -- HDA-153A
(Superseded to 12300038832)

Note: Includes Items 1-37

$165.99

$

In Stock, only 1 left!

0

Echo 12300038832

CARBURETOR -- HDA-153B

Note: Includes Items 1-37

$165.99

$

In Stock, only 1 left!

0

1

------------------

SCREW

$

$

Not available

2

Echo 12314217330

COVER, METERING DIAPHRAGM

$4.99

$

Usually ships in 2-4 days

0

3

------------------

BODY, CARBURETOR

$

$

Not available

4

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

5

Echo 12311802260

NEEDLE, LOW SPEED

$5.99

$

Usually ships in 2-4 days

0

6

Echo 12312032631

NEEDLE, HIGH SPEED

$5.49

$

In Stock, only 2 left!

0

7

Echo 12317815030

PLUG, FRICTION

$9.99

$

Usually ships in 2-4 days

0

8

Echo 12313119830

SHAFT, CHOKE

$6.49

$

Usually ships in 2-4 days

0

9

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

10

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 12313510630

SPRING, CHOKE FRICTION

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

13

Echo 12311732430

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

14

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12311438830

SCREW

$1.49

$

In Stock, Qty 6

0

16

Echo 12311616130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

17

Echo 12315630830

STOP, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

18

Echo 12311438830

SCREW

$1.49

$

In Stock, Qty 6

0

19

Echo 12312419830

COVER, FUEL PUMP

$9.99

$

In Stock, only 2 left!

0

20

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12310032630

REPAIR KIT

Note: Includes Items 22-32

$21.99

$

Usually ships in 2-4 days

0

22

------------------

DIAPHRAGM, METERING

$

$

Not available

23

------------------

GASKET, METERING DIAPHRAGM

$

$

Not available

24

------------------

PLUG, WELCH

$

$

Not available

25

------------------

SCREW, METERING LEVER PIN

$

$

Not available

26

------------------

PIN, METERING LEVER

$

$

Not available

27

------------------

LEVER, METERING

$

$

Not available

28

------------------

SPRING, METERING LEVER

$

$

Not available

29

------------------

VALVE, INLET NEEDLE

$

$

Not available

30

------------------

SCREEN, INLET

$

$

Not available

31

------------------

DIAPHRAGM, FUEL PUMP

$

$

Not available

32

------------------

GASKET, FUEL PUMP

$

$

Not available

33

Echo 12310117330

DIAPHRAGM/GASKET KIT

Note: Includes Items 34-37

$

$

Not available

34

------------------

GASKET, METERING DIAPHRAGM

$

$

Not available

35

------------------

DIAPHRAGM, METERING

$

$

Not available

36

------------------

DIAPHRAGM, FUEL PUMP

$

$

Not available

37

------------------

GASKET, FUEL PUMP

$

$

Not available
