QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Traction Drive Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

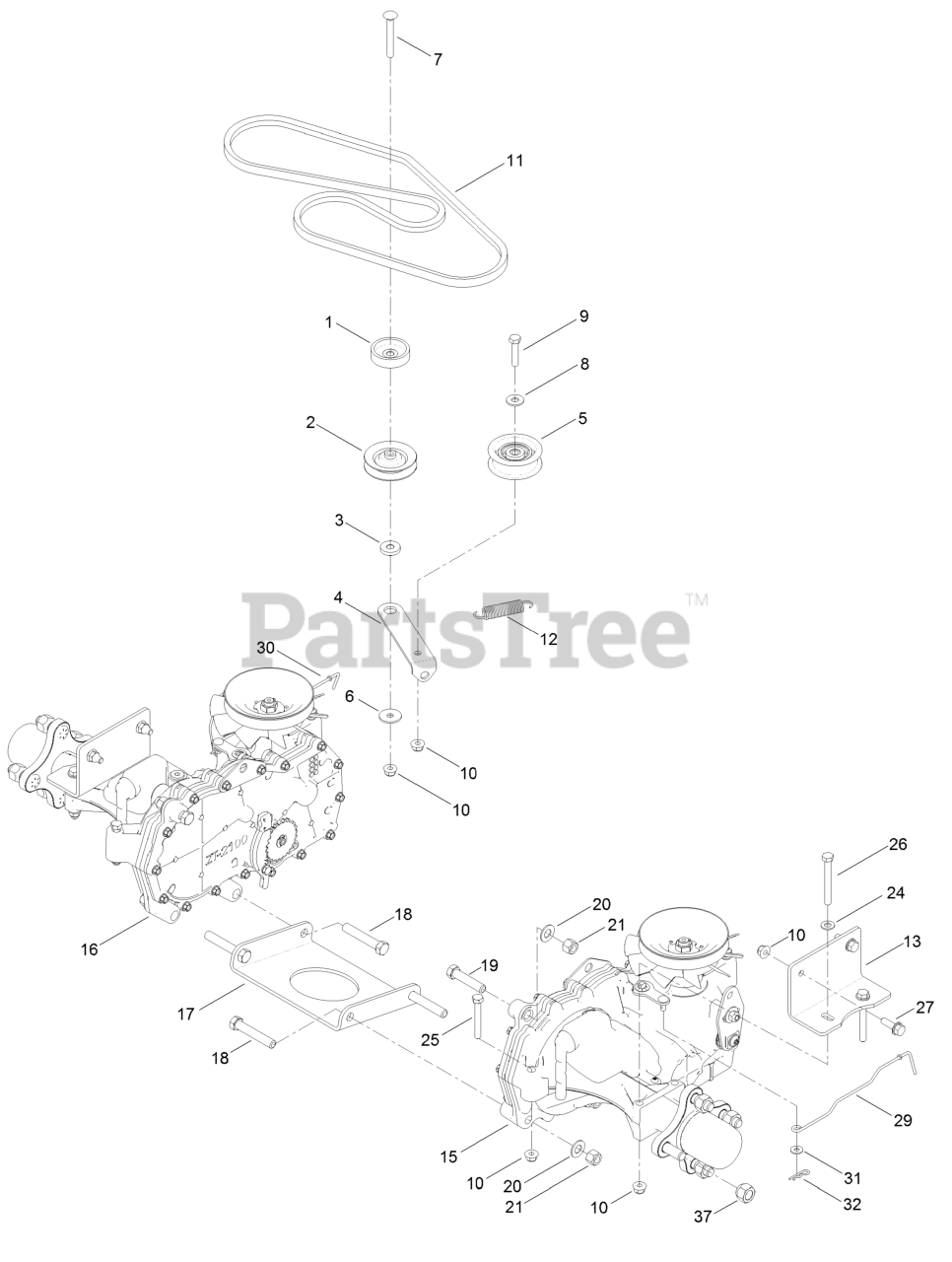

Traction Drive Assembly Parts Diagram

  • Title

1

Exmark 119-3353

Spacer

$11.99

$

In Stock, Qty 8

0

2

Exmark 119-8822

Pulley-Idler

$26.99

$

In Stock, Qty 20+

0

3

Exmark 119-3327

Spacer-Arm, Idler

$2.99

$

In Stock, Qty 20+

0

4

Exmark 119-3326

Arm-Idler
(Superseded to 138-7276)

$6.49

$

In Stock, Qty 12

0

5

Exmark 106-2176

Pulley-Idler

$33.99

$

In Stock, Qty 20+

0

6

Exmark 5-4460

Washer-Pivot

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3230-8

Screw-CARR

$4.99

$

Usually ships in 3-6 days

0

8

Exmark 3256-3

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

9

Exmark 322-7

Screw-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 130-6975

V-Belt
(Superseded to 130-6975-SL)

$36.99

$

Usually ships in 3-6 days

0

12

Exmark 104-6415

Spring-Return, Pedal
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 20+

0

13

Exmark 117-7264-03

Mount-Hydro

$9.49

$

Usually ships in 3-6 days

0

15

Exmark 119-3330

LH Hydro Transaxle ASM

$1340.99

$

Usually ships in 3-6 days

0

16

Exmark 119-3331

RH Hydro Transaxle ASM

$1340.99

$

Usually ships in 3-6 days

0

17

Exmark 119-3339-03

Plate-Cross, Hydro

$23.99

$

Usually ships in 3-6 days

0

18

Exmark 324-10

Screw-HH

$2.49

$

In Stock, Qty 20+

0

19

Exmark 324-8

Screw-HH

$5.99

$

In Stock, Qty 5

0

20

Exmark 3256-25

Washer-Flat

$0.99

$

In Stock, Qty 10

0

21

Exmark 3296-48

Nut-Lock, NI

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3256-23

Washer-Plain

$2.49

$

In Stock, Qty 20+

0

25

Exmark 322-11

Screw-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

26

Exmark 322-13

Screw-HH

$3.49

$

In Stock, Qty 17

0

27

Exmark 3234-29

Screw-HHF

$2.99

$

In Stock, Qty 12

0

29

Exmark 131-0900

Rod-Bypass, LH
(Superseded to 138-7243)

$7.99

$

Usually ships in 3-6 days

0

30

Exmark 130-7049

Rod-Bypass, RH
(Superseded to 138-7245)

$7.99

$

Usually ships in 3-6 days

0

31

Exmark 119-8952

Washer

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

37

Exmark 242-50

Nut-Lug

$1.99

$

In Stock, Qty 20+

0
