QZE722GKC42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Kohler KT722 (SN: 417930746 & Above) (Rev A) (2025) Deck Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kohler KT722

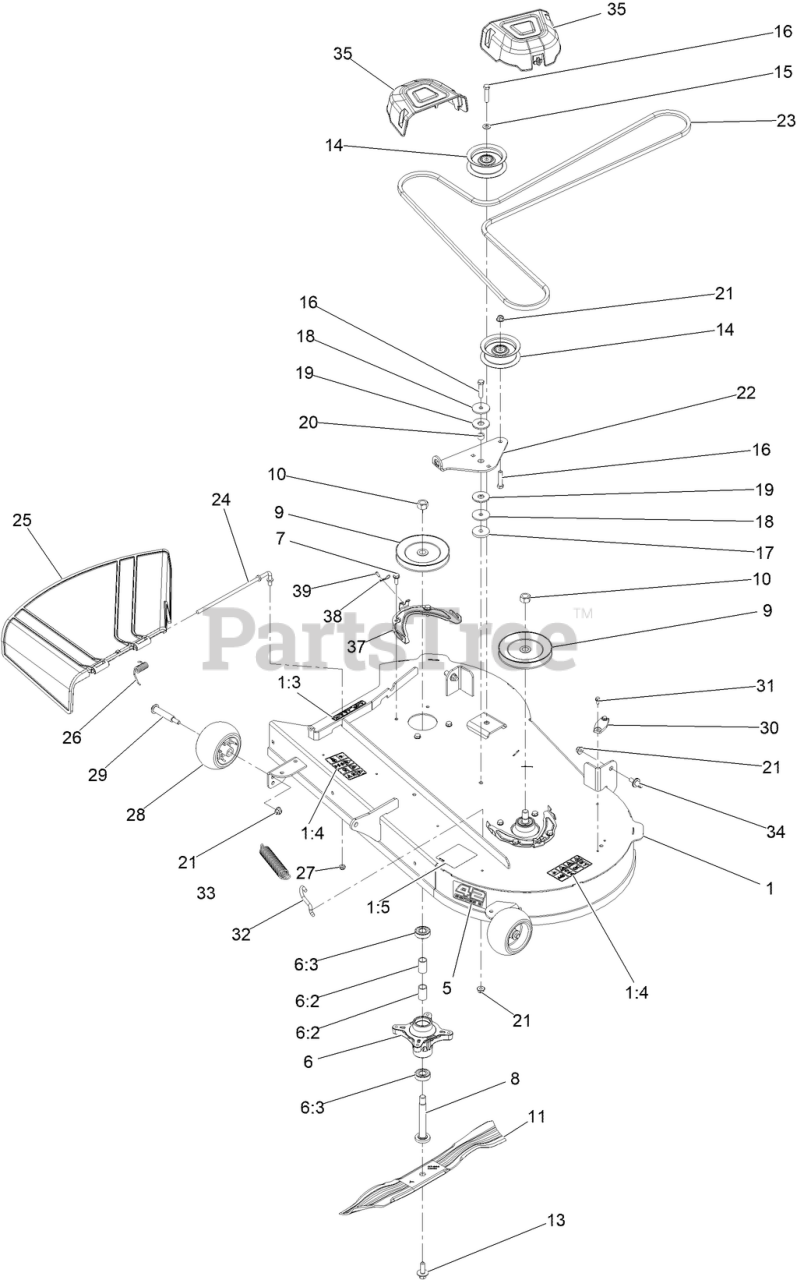

Deck Assembly Parts Diagram

  • Title

1

Exmark 138-9769

42IN DECK AND DECAL ASM

$820.99

$

Usually ships in 3-6 days

0

1:3

Exmark 130-0731

Decal-Danger

$3.99

$

Usually ships in 3-6 days

0

1:4

Exmark 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, only 3 left!

0

1:5

Exmark 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 11

0

5

Exmark 126-7155

Decal-42 Series 2

$4.49

$

Usually ships in 3-6 days

0

6

Exmark 139-3214

SPINDLE ASM

$82.99

$

In Stock, Qty 20+

0

6:2

Exmark 120-7935

SPACER

$2.49

$

In Stock, Qty 18

0

6:3

Exmark 138-9770

BEARING-BALL

$8.49

$

In Stock, Qty 6

0

7

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

8

Exmark 117-7268

SHAFT-SPINDLE

$33.99

$

In Stock, Qty 8

0

9

Exmark 139-2433

PULLEY

$39.99

$

In Stock, Qty 20+

0

10

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Exmark 137-1999-03

BLADE-21.6 IN

$27.99

$

In Stock, Qty 20+

0

13

Exmark 145-0411

Bolt-Blade, Sems

$3.99

$

In Stock, Qty 12

0

14

Exmark 132-9420

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

0

15

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$16.99

$

In Stock, Qty 7

0

18

Exmark 63-7400

WASHER-REBOUND

$3.49

$

In Stock, only 4 left!

0

19

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.99

$

In Stock, Qty 20+

0

20

Exmark 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 138-7262

Arm-Idler

$19.99

$

In Stock, only 2 left!

0

23

Exmark 119-8819

V-BELT
(Superseded to 119-8819-SL)

$47.99

$

Usually ships in 3-6 days

0

24

Exmark 137-2019

ROD-PIVOT

$13.99

$

In Stock, only 3 left!

0

25

Exmark 138-7502

DEFLECTOR-DISCHARGE

$68.99

$

In Stock, Qty 20+

0

26

Exmark 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

28

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

29

Exmark 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

30

Exmark 136-4171

COVER-WASHOUT PORT

$3.49

$

Usually ships in 3-6 days

0

31

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 138-7267

Hook-Return Spring

$2.99

$

In Stock, Qty 20+

0

33

Exmark 138-7265

SPRING EXTENSION

$8.49

$

In Stock, only 2 left!

0

34

Exmark 139-5871

PIN-DECK

$2.99

$

In Stock, Qty 6

0

35

Exmark 144-1905

COVER-BELT

$7.49

$

In Stock, only 2 left!

0

37

Exmark 139-3272-03

BRACKET-COVER, BELT

$13.99

$

In Stock, only 2 left!

0

38

Exmark 144-1944

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

39

Exmark 94-6961

SCREW

$1.49

$

In Stock, only 4 left!

0
