QZE725GKC50200 - Exmark 50" Quest E-Series Zero-Turn Mower, Kohler KT725 (SN: 413950474 & Above) (Rev A) (2023) Engine and Muffler Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Kohler KT725

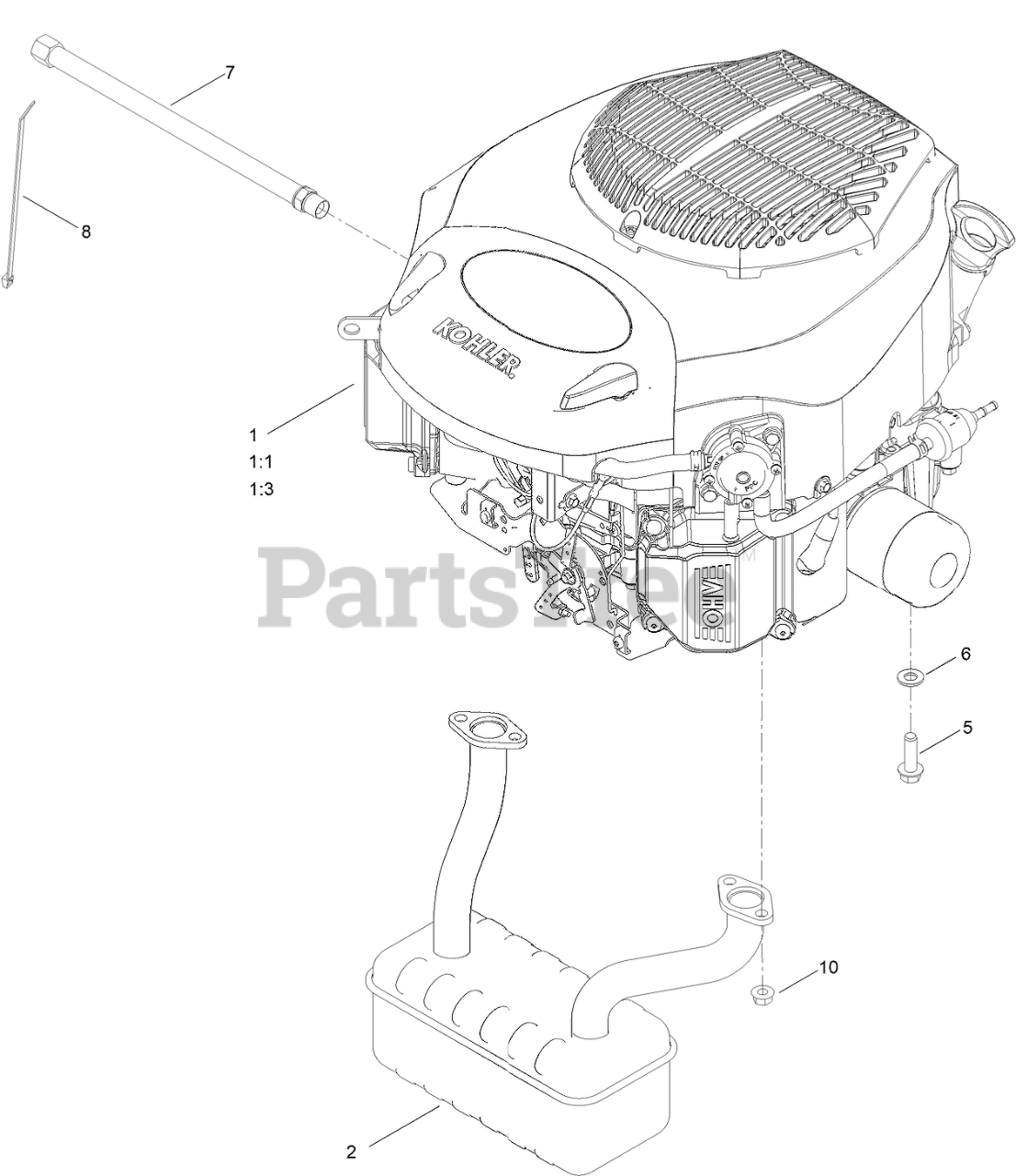

Engine and Muffler Assembly Parts Diagram

  • Title

1

Engine-Kohler, Kt725

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Exmark 110-6697

GASKET-EXHAUST

Note: Not illustrated

$

$

Not available

1:3

Exmark 281-2

PLUG-PIPE, SQH

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

2

Exmark 139-5868

MUFFLER

$114.99

$

Usually ships in 3-6 days

0

5

Exmark 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 18

0

6

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Exmark 117-1261

HOSE-DRAIN, OIL

$28.99

$

In Stock, only 2 left!

0

8

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

10

Exmark 33004-00

NUT-HF

$0.99

$

In Stock, only 3 left!

0
