QZS708GEM54200 - Exmark 54" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 413950474 - 416150474) (Rev B) (2023) Fuel Assembly Parts Diagram

54" Quest S-Series Zero-Turn Mower, Exmark 708

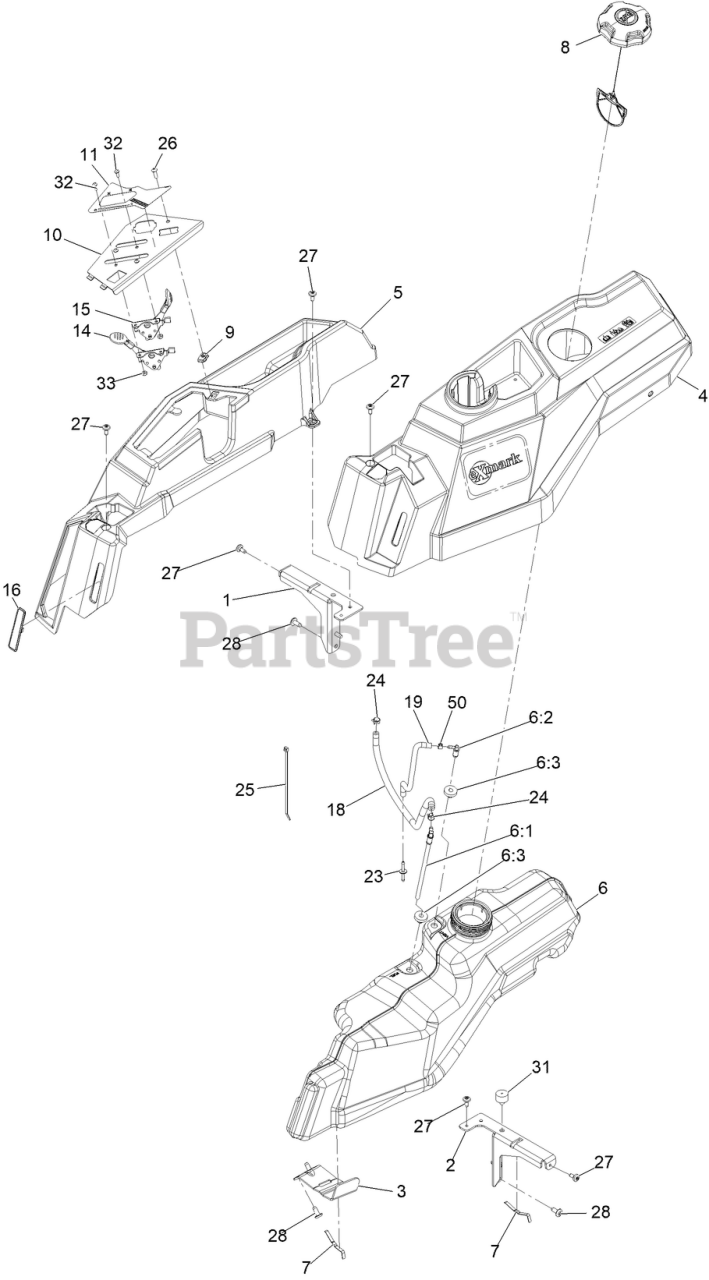

Fuel Assembly Parts Diagram

  • Title

1

Exmark 138-6070-03

SUPPORT-POD, RH

$19.99

$

Usually ships in 3-6 days

0

2

Exmark 138-6071-03

SUPPORT-POD, LH

$19.99

$

Usually ships in 3-6 days

0

3

Exmark 139-3271-03

SUPPORT-TANK, FUEL

$9.49

$

Usually ships in 3-6 days

0

4

Exmark 142-4191

POD- LH

$55.99

$

Usually ships in 3-6 days

0

5

Exmark 142-4192

POD- RH

$55.99

$

Usually ships in 3-6 days

0

6

Exmark 144-5304

TANK-FUEL ASM

$188.99

$

Usually ships in 3-6 days

0

6:1

Exmark 139-1091

Connector-Elbow, 90 DEG

$9.49

$

In Stock, only 3 left!

0

6:2

Exmark 144-5302

Fitting-Elbow 90

$6.99

$

Usually ships in 3-6 days

0

6:3

Exmark 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

7

Exmark 609830

SPRING

$5.99

$

In Stock, only 2 left!

0

8

Exmark 137-4119

CAP-FUEL, RATCHETING

$29.99

$

In Stock, Qty 5

0

9

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10

Exmark 142-4193-03

PANEL- CONTROL

$31.99

$

Usually ships in 3-6 days

0

11

Exmark 142-5862

DECAL-CONTROL PANEL

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 126-6944

CABLE-CONTROL, THROTTLE

$40.99

$

In Stock, only 1 left!

0

15

Exmark 126-6945

CABLE-CONTROL, CHOKE

$40.99

$

Usually ships in 3-6 days

0

16

Exmark 142-4296

PLUG-SC

$3.99

$

Usually ships in 3-6 days

0

18

Exmark 108-4582

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

19

Exmark 136-6345

Hose-Fuel

$7.49

$

Usually ships in 3-6 days

0

23

Exmark 144-1983

Adapter Orifice

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

25

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0

26

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

27

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

31

Exmark 120-7893

BUMPER-GROMMET

$5.99

$

Usually ships in 3-6 days

0

32

Exmark 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

50

Exmark 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0
