QZS708GEM60200 - Exmark 60" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

60" Quest S-Series Zero-Turn Mower, Exmark 708

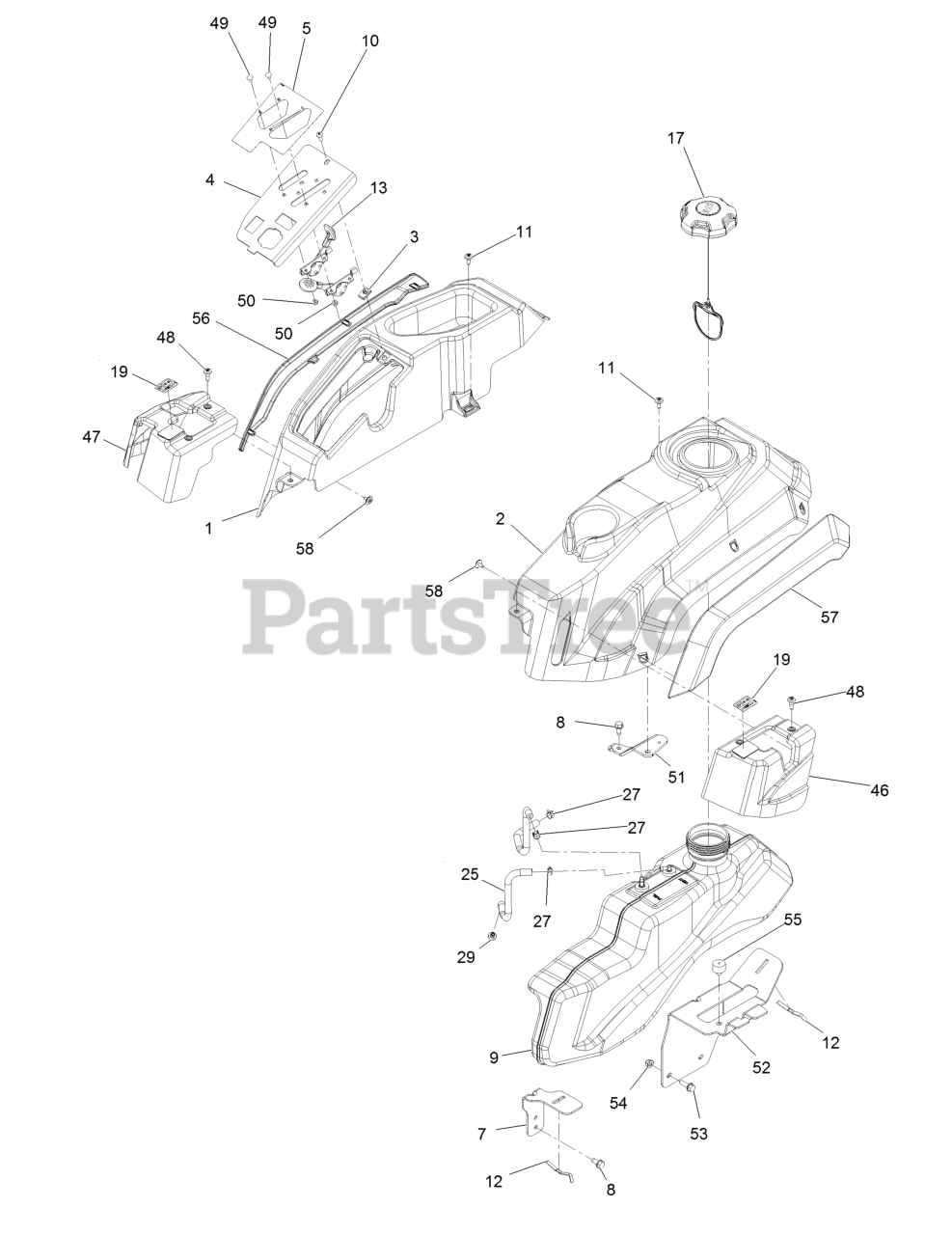

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-1392

Pod-RH, Narrow

$70.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1138

Pod-LH, Narrow

$70.99

$

Usually ships in 3-6 days

0

3

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

4

Exmark 119-3378-03

Plate-Control

$9.49

$

Usually ships in 3-6 days

0

4

Exmark 135-1402-03

Panel-Control, Narrow

$27.99

$

In Stock, only 1 left!

0

5

Exmark 135-2470

Decal-Control

$10.99

$

Usually ships in 3-6 days

0

7

Exmark 135-1564-03

Support-Tank [black]

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

9

Exmark 135-4520

Tank, Fuel

$226.99

$

Usually ships in 3-6 days

0

10

Exmark 3258-166

Screw-PPH 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

11

Exmark 120-7950

Screw-1/4-20 X 1/2 Tf Torx Plus

$2.99

$

In Stock, Qty 20+

0

12

Exmark 609830

Spring

$5.49

$

In Stock, Qty 10

0

13

Exmark 126-6944

Cable-Control, Throttle

$33.99

$

In Stock, only 2 left!

0

13

Exmark 126-6945

Cable-Control, Choke

$33.99

$

In Stock, only 1 left!

0

17

Exmark 137-4119

Cap-Fuel, Ratcheting

$26.99

$

In Stock, Qty 9

0

19

Exmark 135-2310

Decal-Motion Control

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0294

Hose-Fuel Line 10 1/2"

$6.49

$

In Stock, only 1 left!

0

25

Exmark 109-0297

Hose-Fuel

$7.99

$

In Stock, only 1 left!

0

27

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

28

Exmark 614249

Tie-Cable

$1.49

$

In Stock, Qty 20+

0

29

Exmark 117-5399

Adaptor-Orifice

$3.49

$

In Stock, Qty 6

0

46

Exmark 135-1341

Cover, Motion Control LH

$

$

Currently unavailable

47

Exmark 135-1342

Cover, Motion Control RH

$

$

Currently unavailable

48

Exmark 135-2015

Screw-Shoulder

$3.49

$

Usually ships in 3-6 days

0

49

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 18

0

50

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

51

Exmark 135-0868-03

Bracket-Clamp

$10.99

$

Usually ships in 3-6 days

0

52

Exmark 135-1563-03

Bracket-Support Tank

$42.99

$

Usually ships in 3-6 days

0

53

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 12

0

54

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

55

Exmark 120-7893

Bumper-Grommet

$5.49

$

Usually ships in 3-6 days

0

56

Exmark 126-4741

Fender-RH

$17.99

$

Usually ships in 3-6 days

0

57

Exmark 126-4742

Fender-LH

$17.99

$

In Stock, Qty 5

0

58

Exmark 126-5544

Screw-HWH #10-14 X 1/2 Torx

$1.49

$

In Stock, Qty 8

0
