QZS708GEM60200 - Exmark 60" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (2019) Fuel Assembly Parts Diagram

60" Quest S-Series Zero-Turn Mower, Exmark 708

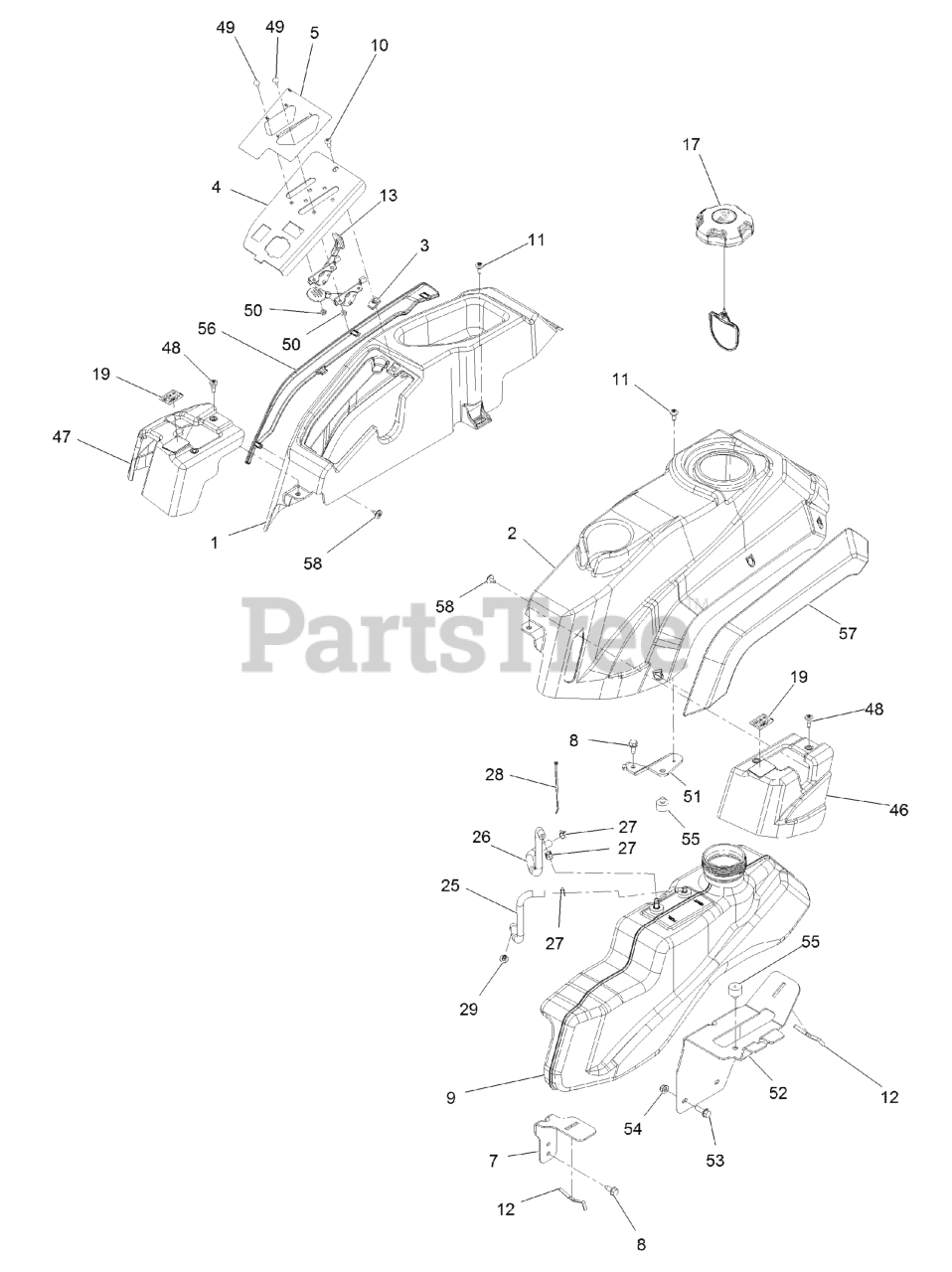

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-1392

POD-RH, NARROW

$70.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1138

POD-LH, NARROW

$70.99

$

Usually ships in 3-6 days

0

3

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

4

Exmark 135-1402-03

PANEL-CONTROL, NARROW

$27.99

$

In Stock, only 1 left!

0

5

Exmark 135-2470

DECAL-CONTROL

$10.99

$

Usually ships in 3-6 days

0

7

Exmark 135-1564-03

SUPPORT-TANK

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

9

Exmark 135-4520

TANK, FUEL

$226.99

$

Usually ships in 3-6 days

0

10

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12

Exmark 609830

SPRING

$5.49

$

In Stock, Qty 10

0

13

Exmark 126-6944

CABLE-CONTROL, THROTTLE

$33.99

$

In Stock, only 2 left!

0

13

Exmark 126-6945

CABLE-CONTROL, CHOKE

$33.99

$

In Stock, only 1 left!

0

17

Exmark 137-4119

CAP-FUEL, RATCHETING

$26.99

$

In Stock, Qty 9

0

19

Exmark 135-2310

DECAL-MOTION CONTROL

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0294

HOSE-FUEL

$6.49

$

In Stock, only 1 left!

0

26

Exmark 109-0297

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

27

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

28

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

29

Exmark 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, Qty 6

0

46

Exmark 135-1341

Cover, Motion Control LH

$

$

Currently unavailable

47

Exmark 135-1342

Cover, Motion Control RH

$

$

Currently unavailable

48

Exmark 135-2015

SCREW-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

49

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

50

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

51

Exmark 135-0868-03

BRACKET-CLAMP

$10.99

$

Usually ships in 3-6 days

0

52

Exmark 135-1563-03

BRACKET-SUPPORT TANK

$42.99

$

Usually ships in 3-6 days

0

53

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

54

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

55

Exmark 120-7893

BUMPER-GROMMET

$5.49

$

Usually ships in 3-6 days

0

56

Exmark 126-4741

FENDER-RH

$17.99

$

Usually ships in 3-6 days

0

57

Exmark 126-4742

FENDER-LH

$17.99

$

In Stock, Qty 5

0

58

Exmark 126-5544

SCREW-TORX

$1.49

$

In Stock, Qty 8

0
