QZV060B0242H00 - Exmark 42" Quest V-Series Zero-Turn Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Deck Assembly Parts Diagram

42" Quest V-Series Zero-Turn Mower, Electric

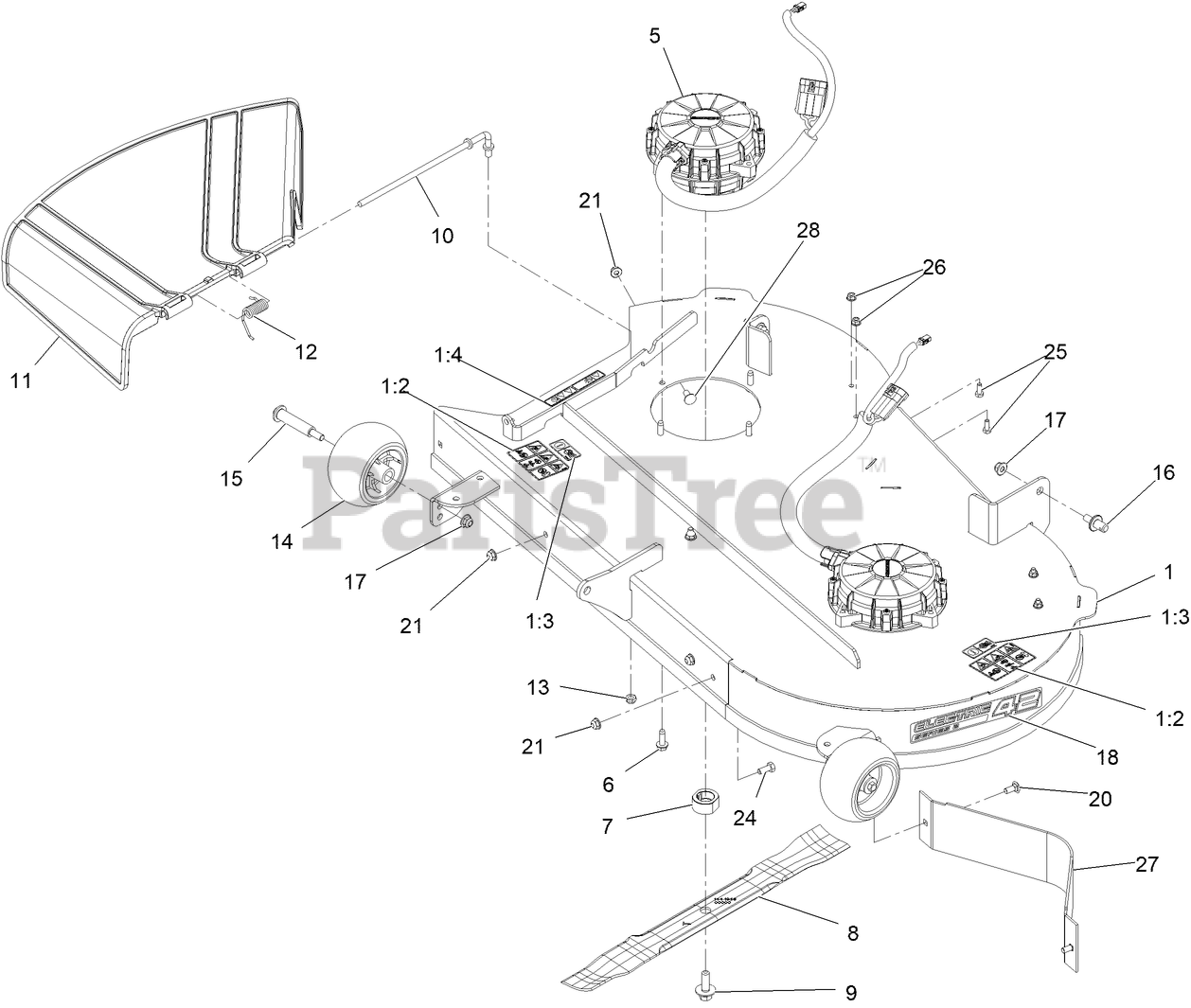

Deck Assembly Parts Diagram

  • Title

1

Exmark 147-7654

42 In Deck And Decal ASM

$800.99

$

Usually ships in 0 days

0

1:2

Exmark 147-7615

DECAL-DANGER, DECK

$5.49

$

Usually ships in 0 days

0

1:3

Exmark 137-8127

DECAL-NO SPRAY

$6.49

$

Usually ships in 0 days

0

1:4

Exmark 130-0731

Decal-Danger

$3.99

$

Usually ships in 3-6 days

0

5

Exmark 140-8379

MOTOR-DECK

$561.99

$

Usually ships in 0 days

0

6

Exmark 136-7174

SCREW-THD ROLL, HWH

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 140-8361

DRIVER-BLADE

$12.99

$

Usually ships in 0 days

0

8

Exmark 144-1948-03

X-REF TO 144-1948-03

$27.99

$

Usually ships in 0 days

0

9

Exmark 145-0411

Bolt-Blade, Sems

$3.99

$

In Stock, Qty 12

0

10

Exmark 137-2019

ROD-PIVOT

$13.99

$

In Stock, only 3 left!

0

11

Exmark 138-7502

DEFLECTOR-DISCHARGE

$68.99

$

In Stock, Qty 20+

0

12

Exmark 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

13

Exmark 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

15

Exmark 139-2551

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

16

Exmark 139-5871

PIN-DECK

$2.99

$

In Stock, Qty 6

0

17

Exmark 119-4042

Nut-HF, NI

$1.49

$

In Stock, only 4 left!

0

18

Exmark 146-2117

DECAL-ELECTRIC 42-SERIES 2

$21.99

$

Usually ships in 0 days

0

20

Exmark 139-2630

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 119-4040

SCREW-SHOULDER

$0.99

$

In Stock, Qty 8

0

27

Exmark 161-6305-03

DEFLECTOR-42

$50.99

$

Usually ships in 0 days

0

28

Exmark 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 19

0
