QZV060B0242H00 - Exmark 42" Quest V-Series Zero-Turn Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Main Frame Assembly Parts Diagram

42" Quest V-Series Zero-Turn Mower, Electric

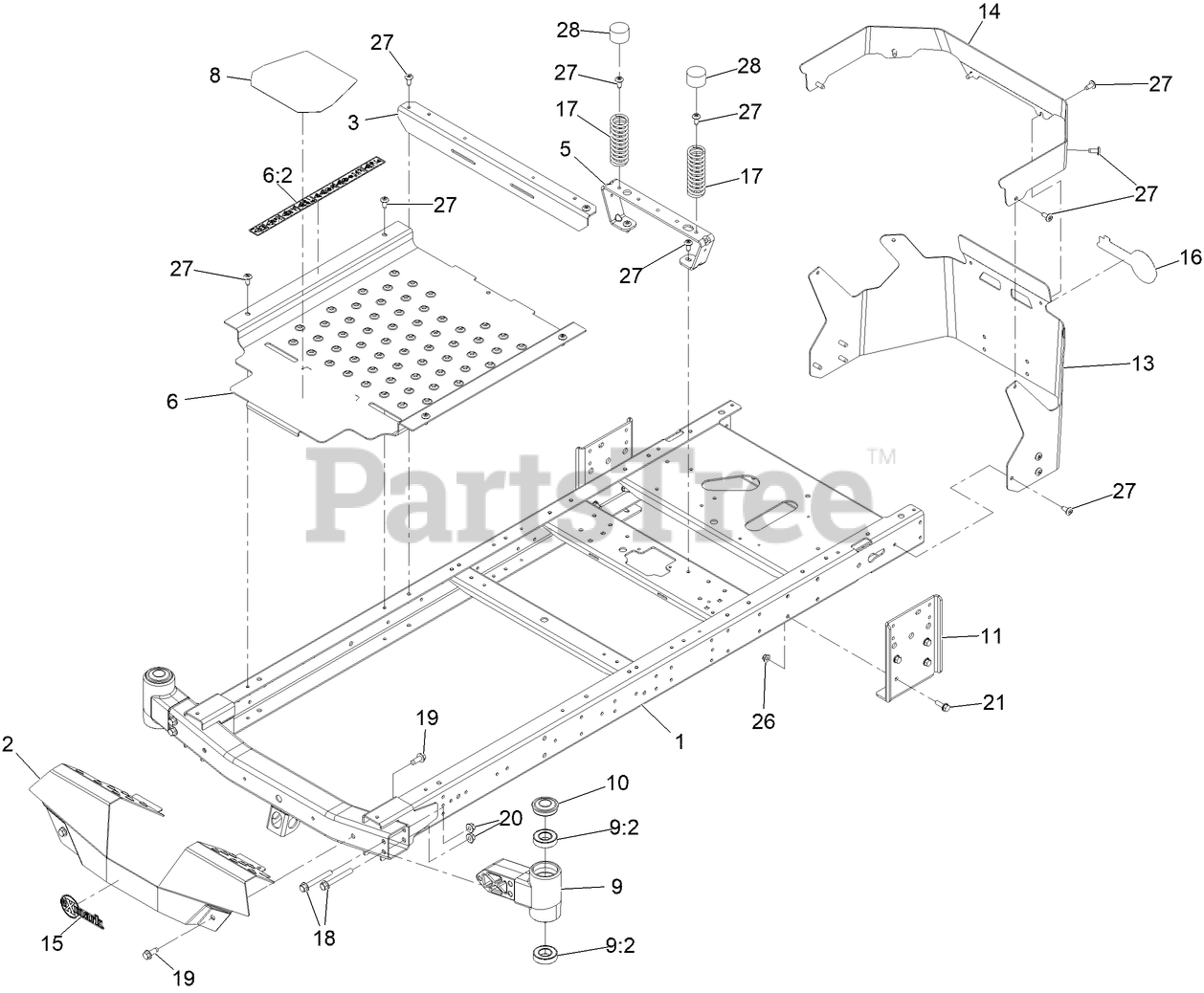

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 147-3005-05

FRAME ASM

$547.99

$

Usually ships in 3-6 days

0

2

Exmark 138-9827-01

FOOTREST

$81.99

$

Usually ships in 3-6 days

0

3

Exmark 138-9791-05

BRACE-CROSS

$23.99

$

Usually ships in 3-6 days

0

5

Exmark 138-6036-03

SUPPORT-SEAT

$21.99

$

Usually ships in 3-6 days

0

6

Exmark 146-3296

PAN-FLOOR ASM

$226.99

$

Usually ships in 3-6 days

0

6:2

Exmark 147-7617

DECAL - WARNING

$12.99

$

Usually ships in 3-6 days

0

8

Exmark 139-3220

TREAD-STEP

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 142-5810

AXLE-STUB

$92.99

$

Usually ships in 3-6 days

0

9:2

Exmark 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 12

0

10

Exmark 138-7200

Cap-Grease

$5.99

$

Usually ships in 3-6 days

0

11

Exmark 145-0415-01

PLATE-MOUNT, DRIVE

$39.99

$

Usually ships in 3-6 days

0

13

Exmark 147-5205-05

GUARD-REAR

$120.99

$

Usually ships in 3-6 days

0

14

Exmark 146-1357-05

GUARD-REAR, UPPER

$60.99

$

Usually ships in 3-6 days

0

15

Exmark 142-5841

DECAL-EXMARK LOGO

$3.99

$

Usually ships in 3-6 days

0

16

Exmark 142-5858

DECAL-EXMARK LOGO

$6.99

$

Usually ships in 3-6 days

0

17

Exmark 138-2548

SPRING-COMPRESSION

$8.49

$

In Stock, Qty 5

0

18

Exmark 139-2429

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

19

Exmark 139-2428

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

20

Exmark 139-2430

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 139-2596

SCREW-HHF

$1.49

$

In Stock, only 2 left!

0

26

Exmark 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Exmark 138-9753

SCREW

$1.49

$

In Stock, only 4 left!

0

28

Exmark 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 1 left!

0
