QZV060B0242H00 - Exmark 42" Quest V-Series Zero-Turn Mower, Electric (SN: 417930746 & Above) (Rev A) (2025) Caster Wheel Assembly Parts Diagram

42" Quest V-Series Zero-Turn Mower, Electric

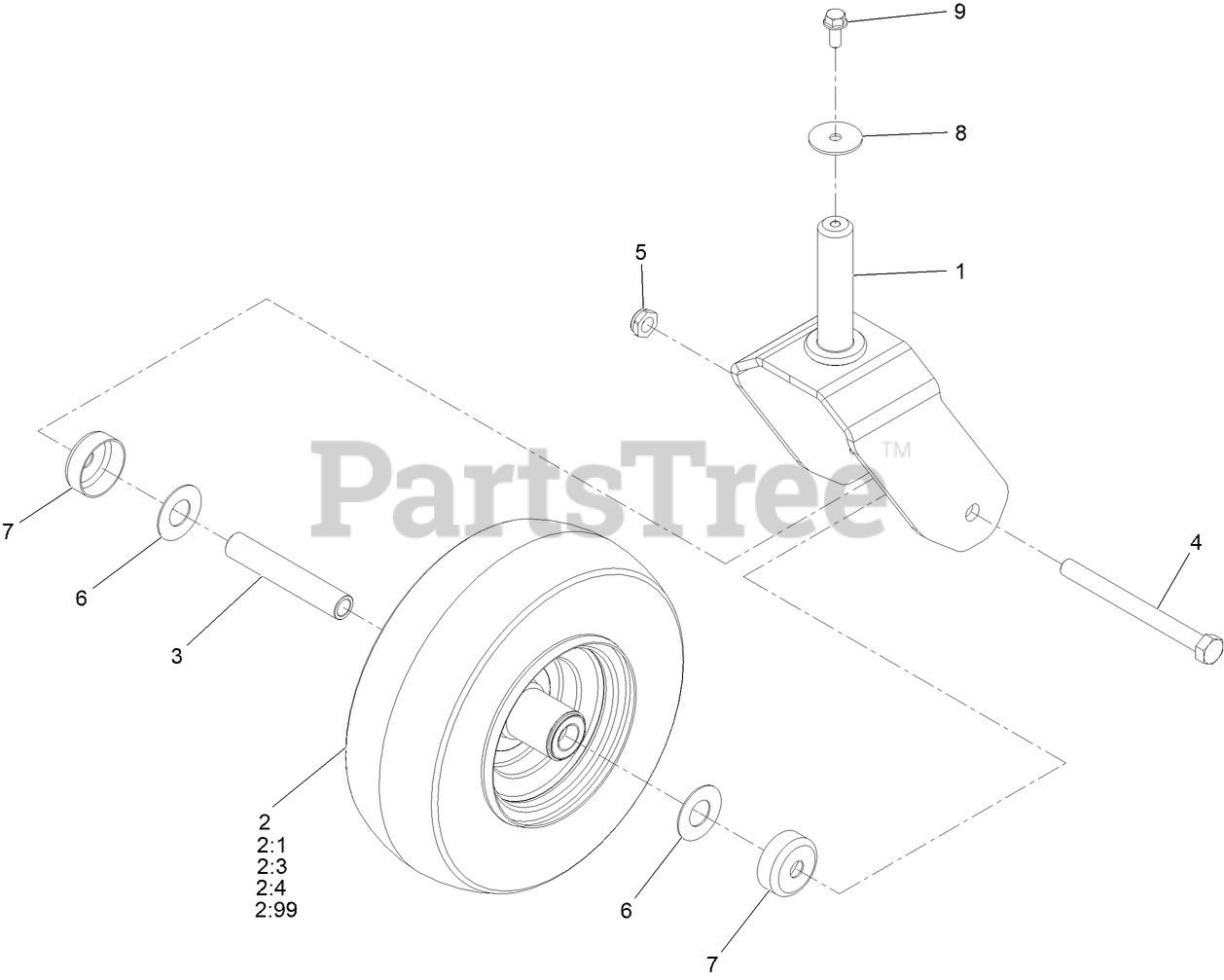

Caster Wheel Assembly Parts Diagram

  • Title

1

Exmark 139-3274-01

FORK ASM

$68.99

$

In Stock, only 2 left!

0

2

Exmark 147-7595

TIRE ASM

$84.99

$

Usually ships in 0 days

0

2:1

Exmark 147-2936

TIRE

$52.99

$

In Stock, only 2 left!

0

2:3

Exmark 232-27

Stem-Valve

$

$

Not available

2:4

Exmark 136-4190

BEARING

$13.99

$

In Stock, only 4 left!

0

2:99

Exmark 105-0844

TUBE-INNER

$50.99

$

In Stock, only 2 left!

0

3

Exmark 147-7593

SPACER-SPANNER

$15.99

$

Usually ships in 0 days

0

4

Exmark 139-2607

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 139-2617

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 136-5590

WASHER

$1.49

$

In Stock, Qty 20+

0

7

Exmark 138-7208

GUARD-SEAL

$2.99

$

In Stock, Qty 5

0

8

Exmark 115-1151

WASHER-FLAT

$3.99

$

In Stock, only 2 left!

0

9

Exmark 139-2598

SCREW-HHF

$1.49

$

In Stock, only 3 left!

0
